H936349 / H936310 Double Row Taper Roller Bearing Self Aligning Bearing
H936349 / H936310 Double Row Taper Roller Bearing Self Aligning Bearing
Specifications
Brand Name :
MONTON
Model Number :
H936340/H936316
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Supply Ability :
100pcs/week
Delivery Time :
7-35 days
Packaging Details :
Singlebox
d :
155.575
D :
342.9
T :
190.75
Weight :
70KG
Certification :
ISO9001
Payment Terms :
T/T
Description

H936340/H936316

Tapered roller bearings H936340/H936316

Bearing number : H936340/H936316

Size (mm) : 155.575x342.9x85.725

Bore Diameter (mm) : 155,575

Outer Diameter (mm) : 342,9

Width (mm) : 85,725

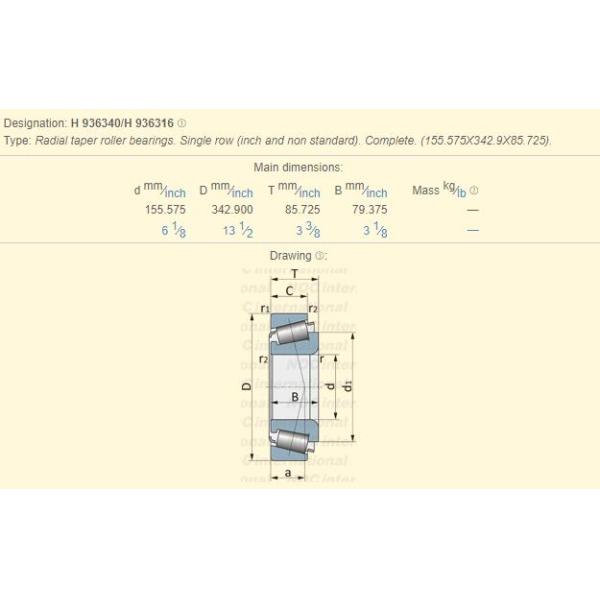

Bearing dimensions and specification in catalogue:

d - 155,575 mm

D - 342,9 mm

T - 85,725 mm

B - 79,375 mm

C - 53,975 mm

R - 6,3 mm

r - 6,3 mm

a - 16,8 mm

Da - 311,5 mm

db - 209 mm

da - 192,5 mm

Db - 287 mm

Aa - 18,4 mm

Ab - 8,4 mm

Weight - 34,44 Kg

Basic static load rating (C0) - 1400 kN

Factor (G1) - 637,7

Factor (G2) - 69,1

Factor (Cg) - 0,0433

Factor (K) - 0,72

Basic dynamic load rating (C90) - 249

Basic dynamic load rating (Ca90) - 345

Basic dynamic load rating (C1) - 960 kN

Calculation factor (e) - 0,81

Calculation factor (Y) - 0,74

Tags : 155.575x342.9x85.725

H936340/H936316 bearing are widely used in industrial drive, agriculture, compressors, motors and generators, construction, industrial fan, industrial transmission and other fields. we can ensure high quality for more than 80% raw material of bearing provided by the steel plant.Explorer series bearing of bearing are better than any brand bearings currently in bearing performance , lifetime, design, and the use of performance. Explorer series bearings of bearing have more advantages ,such as higher meet rated , lower noise, reducing warranty costs greatly, increasing running time of the machine .

We can help our customers meet their requirements for branded bearings. Please call us or email to check on our latest prices, stock availability and to request product data sheets.
