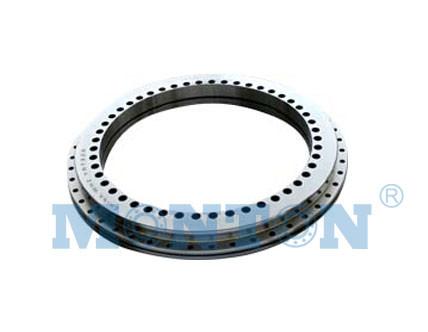

YRTS200 Yrts High Speed Turntable Bearings Use For Rotary Table
YRTS200 Yrts High Speed Turntable Bearings Use For Rotary Table
Specifications
Brand Name :
MONTON
Model Number :
YRTS200
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Certification :
ISO9001
Description

YRTS200 Yrts High Speed Turntable Bearings Use For Rotary Table

YRTS rotary table bearing
bearing type boundary dimensions fixing holes
d D T H C d1 dn dm inner ring outer ring
unit: mm d0 ds TS quantity dL quantity
mm mm
YRTS200 200 300 45 30 15 274 215 285 7 11 6.2 46 7 45

bearing type Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed weight
axial radial
dynamic load static load dynamic load static load
MA2) Ｃａ Coa Cr Cor grease
G quantity qty×t Ｎｍ KN r/min Kg
quantity
YRTS200 2 M8 3 48×7.5° 14 155 840 94 226 1160 9.7

YRTS High speed turntable BearingsFeatures:YRTS turntable bearing is that YRT bearings radial rollers adopt nylon retainer. YRTM turntable bearing is YRT combination bearing installed with steel encoder,Website:http://www.bearinglbr.com, achieving real-time monitor and adjustment of two directions cylindrical roller combination bearings rotation accuracy, to ensure high-precision operation of the machine.Applications:Used in construction crane, high-precision CNC turntable, dividing head, aerospace, other high-precision field in measurement and testing.ModelNameFeaturesYRTSHigh speed turntable BearingsHaving features of high speed compared with YRT type.

YRTS200 Yrts High Speed Turntable Bearings Use For Rotary Table

Product tags

precision bearing caster

,

table rotary bearing

,

turntable bearing
