SGS ASTM A36 Guyed Wire Tower For Communication
SGS ASTM A36 Guyed Wire Tower For Communication
SGS ASTM A36 Guyed Wire Tower For Communication
SGS ASTM A36 Guyed Wire Tower For Communication
SGS ASTM A36 Guyed Wire Tower For Communication
SGS ASTM A36 Guyed Wire Tower For Communication
SGS ASTM A36 Guyed Wire Tower For Communication
SGS ASTM A36 Guyed Wire Tower For Communication
Specifications
Brand Name :
ChangTong
Model Number :
LXT190409-7
Certification :
SGS, ISO2008:9001
Place of Origin :
China
MOQ :
1 pi
Price :
USD1000-1500/Ton
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20000Ton/year
Delivery Time :
30-45days
Packaging Details :
Container transpor, the general situation of the tower for metal reinforcement bind,Bolts are bagged from professional containers.
Material :
SteelQ345/Q235
Appearance Treatment :
Hot-dip galvanized/powder coated/painting
Height :
10m-120m/Customized
Design wind speed :
36m/s
Connection structure :
flange connection/bolts connection
Quantity of Platform :
1/2/3/4/Customized
Lifetime :
More than 20years
Description
Triangle Hot-Dip Galvanized High-Quality Antanna Telecom Guyed Wire Mast Tower For Communication
Quick Details
Place of Origin:
Hebei, China
Brand Name:
TY
Model Number:
guyed tower
Product name:
Triangle hot-dip galvanized high-quality telecom guyed wire tower
Material:
SteelQ345/Q235/ASTM A36 A572 Gr50
Appearance Treatment:
Hot-dip galvanized/powder coated/painting
Height of Tower:
5m-180m/Customized
Design wind speed:
30m/s
Connection structure:
flange connection/bolts connection
Quantity of Platform:
1/2/3/4/Customized
Lifetime:
20 Years
Antenna Type:
GSM, RRU,CDMA, MW etc.
design software:
MS TOWER
Supply Ability
Supply Ability:
30000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
Container transpor, the general situation of the tower for metal reinforcement bind,Bolts are bagged from professional containers.
Port
Tianjin Port
Lead Time :
Quantity(Tons) 1 - 10 >10
Est. Time(days) 20 To be negotiated
Design
1. Design Code TIA/EIA-222-G/F
Structure Steel
2. Grade Mild Steel High Tensile Steel
GB/T 700:Q235B, Q235C,Q235D GB/T1591:Q345B, Q345C,Q3455D
ASTM A36 ASTM A572 Gr50
EN10025: S235JR, S235J0,S235J2 EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa) 360~510 470~630
6. Yield strength (t≤16mm) (Mpa) 355 235
7. Elongation (%) 20 24
8. Impact strength KV (J) 27(20°C)---Q235B(S235JR) 27(20°C)---Q345B(S355JR)
27(0°C)---Q235C(S235J0) 27(0°C)---Q345C(S355J0)
27(-20°C)---Q235D(S235J2) 27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933
11.2 Nuts ISO4032, ISO4034
11.3 Washers DIN7989, DIN127B, ISO7091
Welding
12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard AWS D1.1
Marking
14. Method of marking of the members Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153
Test
17. Factory test Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending,
Preece test,Hammer test

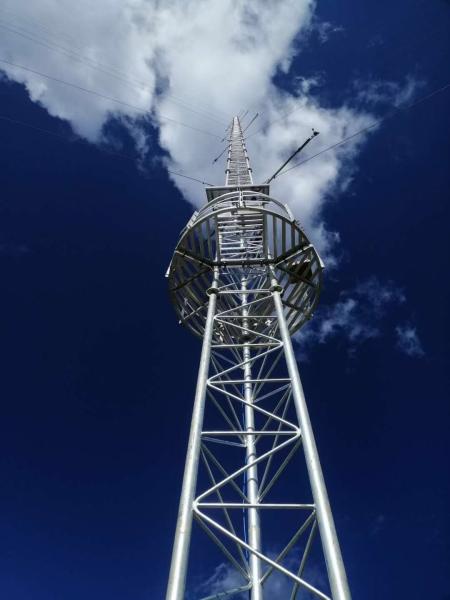

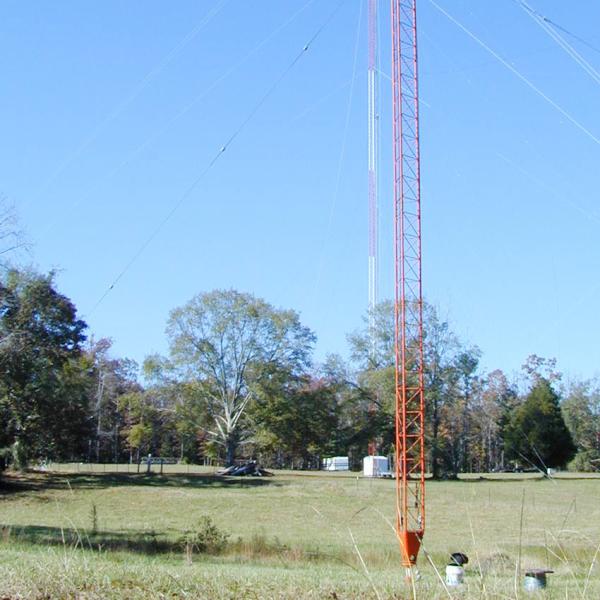

product show

SGS ASTM A36 Guyed Wire Tower For CommunicationSGS ASTM A36 Guyed Wire Tower For Communication

Our Company

Hebei Chang Tong Steel Structure Co., Ltd. is specialized in the production, design, installation and maintenance of beautification tower, bionic tree communications tower, anemometer tower, communication tower, telecommunication tower, single tube tower, etc. And undertakes the design, manufacturing and construction of all kinds of steel structure. Our company has rich experience more than 20 years and has 5 senior engineers and five professional production lines. Fast delivery time 25 days,high efficient supply ability 1000 tons monthly,so we are sure to deliver your goods strictly as you required and meet your order quantity to the fullest.
