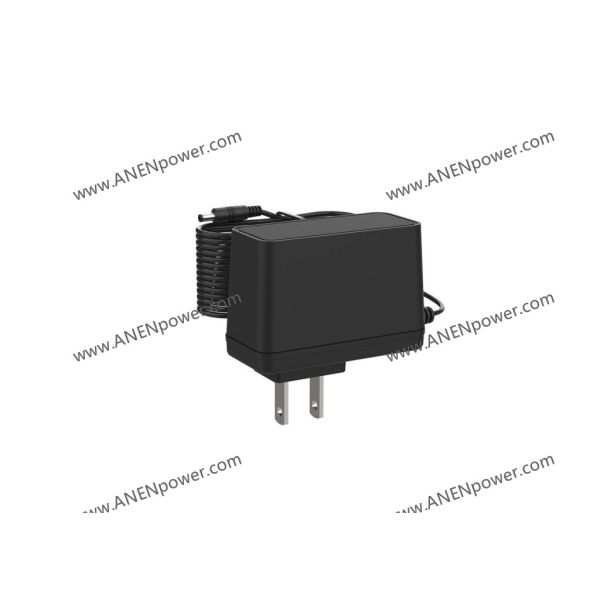

24W Max High-Efficiency Switching Power Supply: 24V 1A / 12V 2A / 9V 2A Solution

Product Overview

The 24W High-Performance Switching Power Adapter is a specialized energy solution engineered for the critical demands of modern security surveillance, NVR storage systems, and high-speed networking infrastructure. By providing a stable high-current output—including 12V 2A and 24V 1A rails—this unit delivers the necessary power overhead to drive CCTV NVRs, Multi-Protocol Routers, and Smart Gateways without the risk of system reboots or data corruption during peak processing loads.

Designed for "always-on" environments, the adapter features a refined, compact enclosure that remains remarkably cool under sustained full-load delivery. Whether used for powering centralized security recorders or high-gain industrial wireless routers, this power supply ensures minimal thermal stress and maximum electrical integrity, making it the premier choice for professional integrators and high-volume OEM/ODM deployments.

Key Specifications

Our 24W series is built for electrical endurance and signal integrity, offering a standardized platform for professional security and networking hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Input).

• Total Output Power: 24W Continuous Maximum.

• Output Voltage & Current Range:

  • 48V Series: 48V 0.5A (24W Max - Optimized for PoE & VoIP Infrastructure)

  • 36V Series: 36V 0.67A (24W Max - For Specialized LED & Industrial Logic)

  • 24V Series: 24V 1A (24W Max - For CCTV NVRs & Intercom Systems)

  • 12V Series: 12V 2A (24W Max - For High-Power Routers & LED Controllers)

  • 9V Series: 9V 2A (18W Max - For Network Nodes & Specialized Sensors)

  • 5V Series: 5V 3A (15W Max - For High-Performance SBCs & IoT Hubs)

• Connector Type: Fixed DC Cable (5.5x2.1mm / 5.5x2.5mm) or Custom Terminals.

• Energy Efficiency: Fully compliant with Level VI standards, minimizing standby power loss.

• Ripple & Noise: < 150mVp-p (Typical) – Advanced suppression ensures stable data packet transmission and clear video signals.

• Global Safety Compliance: Fully compliant with IEC/EN/UL 62368-1 (IT, AV & Industrial standard).

• EMI/EMC Compliance: Meets Class B standards for low electromagnetic interference in sensitive residential and commercial environments.

• MTBF (Reliability): > 50,000 Hours, designed for 24/7 continuous operation.

Ideal Applications

The 24W precision output is optimized for high-reliability infrastructure:

• Security & Surveillance: Multi-channel CCTV NVRs, digital video recorders (DVR), and high-definition IP camera arrays.

• Networking Infrastructure: High-gain wireless routers, 4G/5G cellular gateways, fiber optic modems (ONT), and professional signal boosters.

• Industrial Automation: 24V PLC logic controllers, industrial sensors, HMI panels, and automated actuator systems.

• Smart Home Infrastructure: Centralized automation panels, building intercom systems, and motorized smart security blinds.

• Computing & Storage: External hard drive enclosures, network-attached storage (NAS) units, and high-load IoT edge nodes.

Professional Safety & Reliability Suite

• Inrush Current Management: Specifically engineered to handle the surge current demands of NVR hard drives and cooling fans during system boot-up.

• Continuous 24/7 Stability: High-efficiency circuit design minimizes internal heat build-up, allowing for a fanless enclosure that remains stable even during high-load data writing cycles.

• Voltage Precision Regulation: Advanced control circuitry maintains a rock-solid DC output, protecting delicate storage chipsets and image sensors from voltage fluctuations.

• Signal Integrity Protection: Integrated multi-stage filtering significantly reduces high-frequency switching noise, protecting sensitive logic signals and wireless data from interference.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery features.
