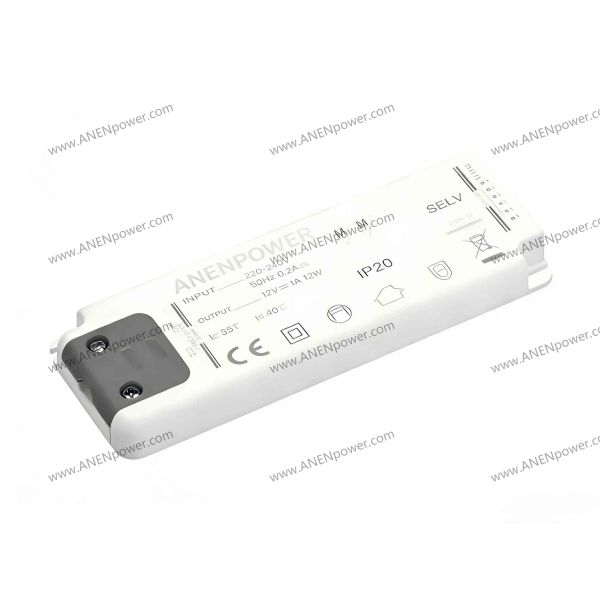

12W Max 12/24V IP20 Super Thin LED Power Supply – Compact Driver for Home & Commercial Cabinet Light Fixtures
12W Max 12/24V IP20 Super Thin LED Power Supply – Compact Driver for Home & Commercial Cabinet Light Fixtures
Specifications
Brand Name :
ANENpower
Model Number :
APL012C
Certification :
UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Place of Origin :
Shenzhen
MOQ :
500pcs
Price :
Please contact our Sales
Payment Terms :
50% deposit, 50% before dispatch
Supply Ability :
500,000.00pcs/month
Delivery Time :
18~25 working days after receiving the deposit
Packaging Details :
PE bag / White box / Custom made
Power :
12W max.
Input :
220-240VAC
Output Voltage :
12V/ 24V
Dimension(LxWxH) :
128*46*12.5mm
Voltage Tolerance :
±5%
Riple(P-P) :
＜1%
Efficiency :
≥85%
Applicant :
Cabinet lights, LED strips, LED indoor lighting, LED decorative lighting, LED building lighting
Description

12W Max 12/24V IP20 Super Thin LED Power Supply – Compact Driver for Home & Commercial Cabinet Light Fixtures

Delivering up to 12W of stable power, this ultra-slim driver supports both 12V and 24V LED lighting systems—ideal for a wide range of low-voltage fixtures. Its minimal profile fits effortlessly into tight spaces under cabinets, inside display cases, or within shelving units. With IP20 protection, it’s optimized for safe, reliable indoor use in both residential and commercial settings. Whether for kitchen task lighting, retail showcases, or ambient home accents, this compact power supply combines performance, efficiency, and discreet design.

- Universal Input: 220-240V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions

MODEL DETAIL SPEC. APL012C-1201000 APL012C-2400500
INPUT Input Voltage: 220-240VAC
Range of Input Voltage: 198-264VAC
Input Frequency: 50/60Hz
Input Current: 0.1AMAX@Full Load
Inrush Current: < 65 Amps at 230VAC/50Hz@full load
Leakage Current: < 0.25mA/240VAC
THD (Full load): < 20%
Unload Power
Consumption:		 < 0.5W
Efficiency: 85%
Power Factor: ≥0.7@Full Load 220-240VAC
OUTPUT DC Voltage: 12V 24V
Rated Current(Max): 1.0A 0.5A
Rated Power(Max): 12W 12W
Voltage Tolerance: ±5%
Ripple and Noise: 400mVp-p 400mVp-p
Line Regulation: ±3%
Load Regulation: ±5%
Setup, Rise, Hold Up
Time:		 1s, 10ms/60ms 230VAC @ full load
ENVIRONMENTAL Operating Temperature
Ta:		 -20℃ ~ +45℃
Storage Temp: -40℃ ~ +85℃
Maximum Case
Temperature Tc:		 +85℃
Humidity: 20 ~ 95% RH
Lifetime: >30000hours@ta 40℃
PROTECTION Over Load: Yes , Protection type: Auto Restore
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: Yes , Protection type: Auto Restore
Protection type: Shut down o/p voltage, re-power on to recover
Short Circuit: Yes , Protection type: Auto Restore
SAFETY & EMC Safety Regulations: EN61347-2-13:2014+A1:2017,EN61347-1:2015+A1:2021;EN62493:2015
Withstand Voltage: I/P-O/P:3750VAC
Harmonic: EN61000-3-2 Class C EN61000-3-3
EMI: Compliance to EN55015
EMS: Compliance to EN61547:2009
OTHER MTBF: 200,000 Hours Minimum at Full Load at 25℃ Ambient
Case Material and Size: Plastic
IP Grade: IP20
Size: 128*46*12.5mm
Weight: 70g / pcs
Packaging: 200PCS/CTN
