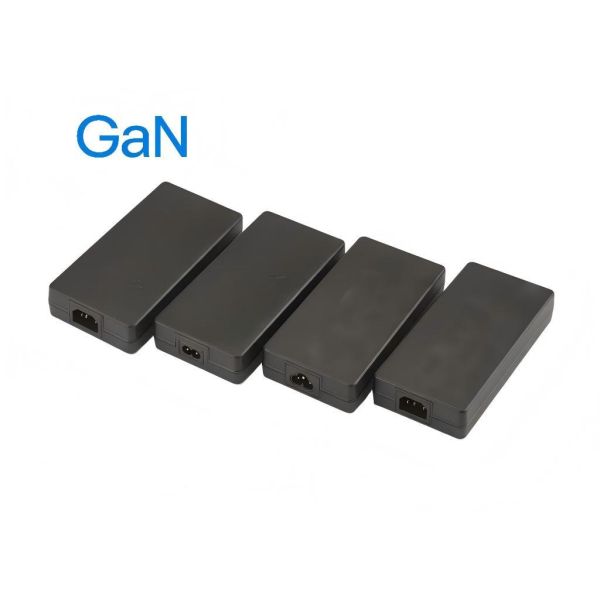

280W Max GaN Desktop AC/DC Adapter: Ultra-Efficient High-Power Solution

Product Overview

The 280W GaN Desktop AC/DC Adapter represents the absolute pinnacle of power conversion technology. By integrating advanced Gallium Nitride (GaN) semiconductors, this adapter achieves a massive 280W output (e.g., 24V 11.6A or 48V 5.83A) in a compact, sleek desktop form factor that was previously impossible with traditional silicon technology.

Specifically engineered for Industrial Machinery and High-Brightness LED Displays, the GaN architecture provides an industry-leading efficiency of over 95%. This drastically minimizes heat dissipation, allowing for a fanless, silent design that offers exceptional reliability for mission-critical hardware. Whether powering high-torque industrial actuators or large-scale digital signage, this 280W unit delivers a rock-solid, grounded power source for 24/7 heavy-duty operation.

Key Specifications

Engineered with an advanced LLC Resonant Topology and Active PFC (Power Factor Correction), the 280W GaN series ensures superior electrical stability and global grid compatibility.

• Technology: Next-Gen GaN (Gallium Nitride) FETs for maximum power density and cool-running performance.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 280W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 11A / 24V 11.6A (280W Max)

  • 48V Series: 48V 5.5A / 48V 5.83A (280W Max)

  • 20V Series: 20V 14A (280W Max - For high-end gaming/workstations)

  • 54V Series: 54V 5.18A (280W Max - For Enterprise PoE++ systems)

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Flexible for Class I and Class II applications).

• Efficiency: ≥ 95% (at 230VAC full load).

• Ripple & Noise: < 300mVp-p (Measured with 20MHz bandwidth).

• MTBF (Reliability): > 50,000 Hours at 25°C ambient temperature.

• DC Connector: 4-Pin Power DIN, XT60/XT90, or 6-Pin Molex (Mandatory for safety at 11.6A+ currents).

• Global Certifications: UL, cUL, CE, GS, TUV, UKCA, SAA, RCM, PSE, KC, KCC, CCC, CB, FCC, RoHS, REACH.

Ideal Applications

The 280W ultra-high capacity is optimized for the most demanding electronic and mechanical systems:

• Industrial Machinery: High-torque DC motor drivers, CNC controllers, and automated production line units.

• LED & Visuals: Large-format outdoor LED displays, high-brightness digital signage, and video wall controllers.

• High-End Computing: Professional workstations, external GPU (eGPU) enclosures, and high-performance gaming laptops.

• Network & Communication: Enterprise-grade PoE++ (802.3bt) switches and 5G/6G micro-cell base stations.

• Laboratory & Medical: High-capacity medical diagnostic workstations and automated laboratory centrifuges.

Professional Safety Suite

• Active Over-Load Protection: Handles high-current transient spikes during motor startup.

• Advanced OTP: Built-in Thermal Shutdown to prevent damage under extreme conditions.

• Heavy-Duty Output: Reinforced 12AWG/14AWG pure copper DC cables to ensure minimal voltage drop.
