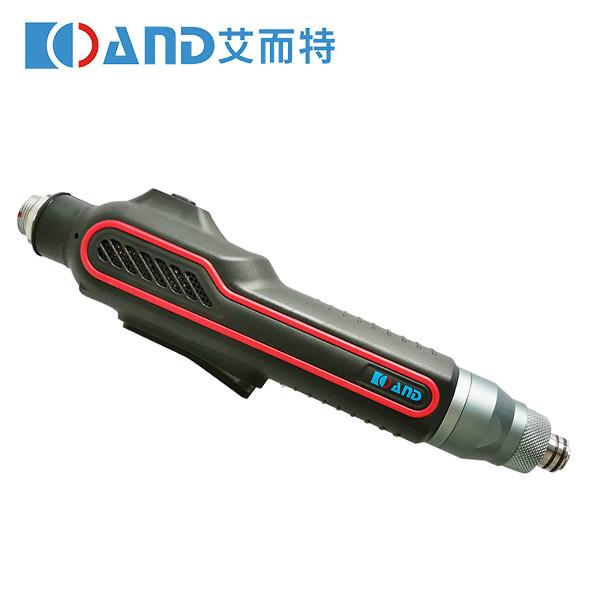

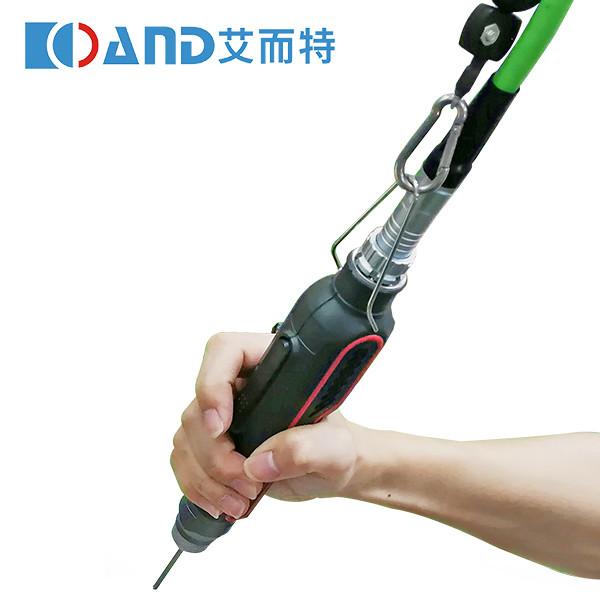

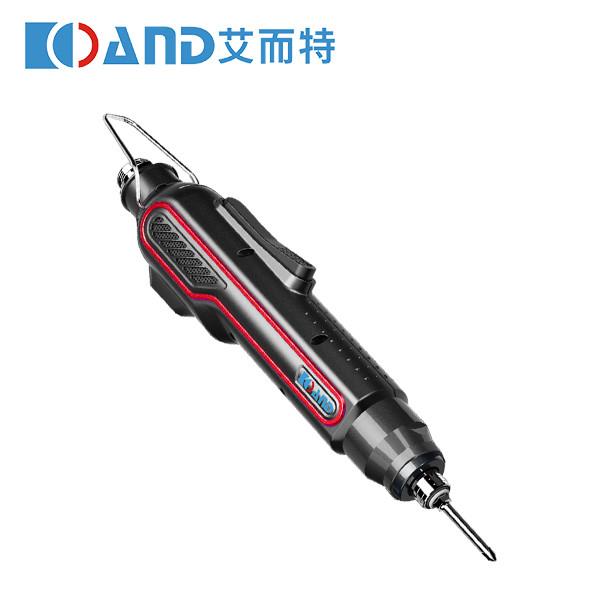

HD2120 PLC MES Systems Automatic Torque Screwdriver DC 40W CE Approval
HD2120 PLC MES Systems Automatic Torque Screwdriver DC 40W CE Approval
HD2120 PLC MES Systems Automatic Torque Screwdriver DC 40W CE Approval
HD2120 PLC MES Systems Automatic Torque Screwdriver DC 40W CE Approval
HD2120 PLC MES Systems Automatic Torque Screwdriver DC 40W CE Approval
HD2120 PLC MES Systems Automatic Torque Screwdriver DC 40W CE Approval
HD2120 PLC MES Systems Automatic Torque Screwdriver DC 40W CE Approval
HD2120 PLC MES Systems Automatic Torque Screwdriver DC 40W CE Approval
HD2120 PLC MES Systems Automatic Torque Screwdriver DC 40W CE Approval
HD2120 PLC MES Systems Automatic Torque Screwdriver DC 40W CE Approval
Specifications
Brand Name :
AND
Model Number :
HD2120
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Before T/T ; L/C
Delivery Time :
1-4 weeks
Packaging Details :
Paper Box
Name :
HD: Hand Hold Smart Screwdrivers
The power of motor :
DC 40W
Max. speed(rpm) :
5000
Rated torque（N.m) :
0.23
Batch Head :
Half-moon (Tail)
Description

Low noise Screwdriver HD2120 Wide torque range coverage Support PLC, MES systems


Professional concept of modular and combined design solution
Leading servo motor drive plus precision reduction structure
Blow/suction optional automatic feeding method
Safe and reliable special cable and connector configuration
Multi-style, multi-series and multi-specification product selection
Beautiful and compact appearance structure, convenient and flexible installation
method and suitable for a variety of applications

This screwdriver works with both ACT and HNA series controller. It supports a torque out put range

of 0.02-0.23 N.m and the maximum rotate per minute is 5000. The weight is about 0.4 Kg.

There's optional mounting plate avaliable for this model HD2120.

You can consult our technical staff for more information.



Specifications

Model Adapted
controller		 Tool cable Torque output range Start-up method Maximum
Speed
(rpm)		 Adapted outer diameter of screw(mm) Weight
(kg)
kgf.cm N.m lbf.in Trigger button Machine Screw Tapping Screw
HD2120 ACT-H00XX
/HNA-H21XX		 C113X
/C123X
/C124X		 0.2～2.35 0.02～0.23 0.18～2.04 √ 5000 1.0～2.3 1.0～2.0 0.4
HD2350 ACT-H01XX
/HNA-H23XX		 1.52～9.18 0.15～0.9 1.33～7.97 √ 1200 1.4～3.0 1.4～2.6 0.5
HD2351 ACT-H01XX
/HNA-H23XX		 1.52～9.18 0.15～0.9 1.33～7.97 √ 1200 1.4～3.0 1.4～2.6 0.5
HD2460 ACT-H02XX
/HNA-H24XX		 2.0～12.23 0.2～1.2 1.77～10.62 √ 1000 1.4～4.0 1.4～3.0 0.5
HD2461 ACT-H02XX
/HNA-H24XX		 2.0～12.23 0.2～1.2 1.77～10.62 √ 1000 1.4～4.0 1.4～3.0 0.5
HD2571 ACT-H03XX
/HNA-H25XX		 5.1～16.32 0.5～1.6 4.42～14.16 √ 800 2.0～5.0 2.0～4.2 0.6


Dimensions
