HD2350 Low Noise Servo Screwdriver 1200 rpm Efficient Heat Dissipation
HD2350 Low Noise Servo Screwdriver 1200 rpm Efficient Heat Dissipation
HD2350 Low Noise Servo Screwdriver 1200 rpm Efficient Heat Dissipation
HD2350 Low Noise Servo Screwdriver 1200 rpm Efficient Heat Dissipation
HD2350 Low Noise Servo Screwdriver 1200 rpm Efficient Heat Dissipation
HD2350 Low Noise Servo Screwdriver 1200 rpm Efficient Heat Dissipation
Specifications
Brand Name :
AND
Model Number :
HD2350
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Before T/T ; L/C
Delivery Time :
1-4 weeks
Packaging Details :
Paper Box
Name :
HD: Hand Hold Smart Screwdrivers
The power of motor :
DC 40W
Max. speed(rpm) :
1200
Rated torque（ N.m) :
0.9
Batch Head :
Half-moon (Tail)
Description

HD2350 Handheld Smart Screwdriver Support remote control Can support barcode scanner

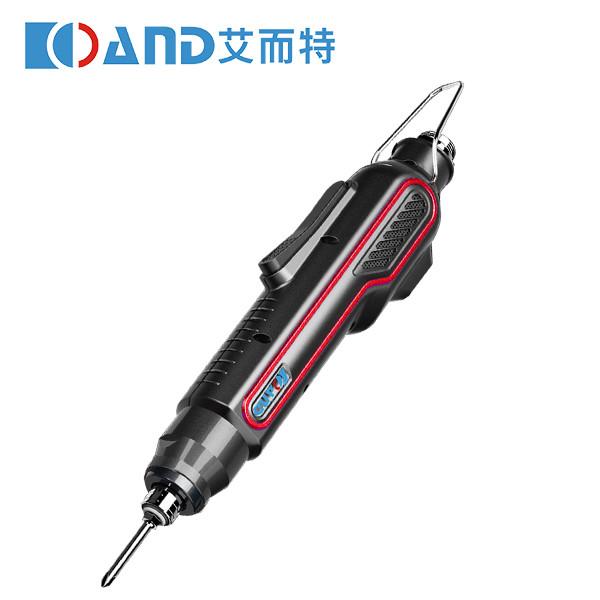

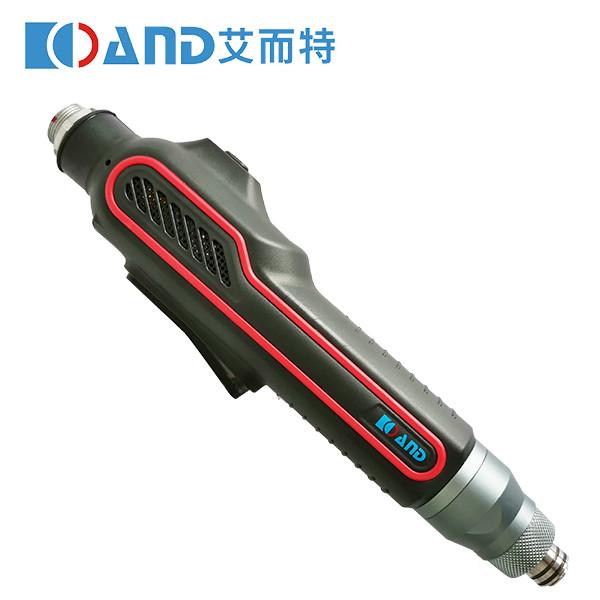

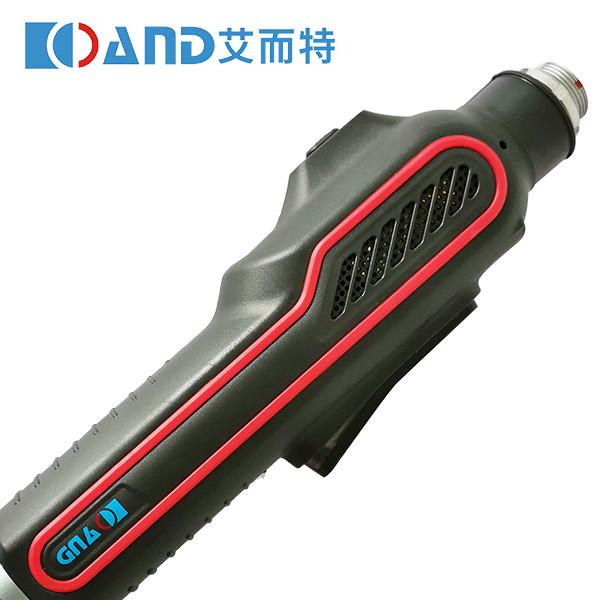

HD2350 Handheld Smart Screwdriver
Patented design
Ergonomic grip, non-slip, comfortable and secure.
Efficient heat dissipation setting, ultra-low noise output
High-performance servo motor and high-precision reducer power transmission mechanism
High-precision angle sensor with two-color LED indication of lock attachment status
Safety level in line with the relevant data of GB3883/IEC60745 and other standards

This screwdriver works with ACT series controller and HNA series controller. With a a torque out put range

from 0.15 to 0.9 N.m. It has a maximum rotate per minute of 1200 and only weights 0.5 kg.

We have an optional mounting plate for this model as well and plese feel free to contact our technical staff

for more information.


Specifications

Model Adapted
controller		 Tool cable Torque output range Start-up method Maximum
Speed
(rpm)		 Adapted outer diameter of screw(mm) Weight
(kg)
kgf.cm N.m lbf.in Trigger button Machine Screw Tapping Screw
HD2120 ACT-H00XX
/HNA-H21XX		 C113X
/C123X
/C124X		 0.2～2.35 0.02～0.23 0.18～2.04 √ 5000 1.0～2.3 1.0～2.0 0.4
HD2350 ACT-H01XX
/HNA-H23XX		 1.52～9.18 0.15～0.9 1.33～7.97 √ 1200 1.4～3.0 1.4～2.6 0.5
HD2351 ACT-H01XX
/HNA-H23XX		 1.52～9.18 0.15～0.9 1.33～7.97 √ 1200 1.4～3.0 1.4～2.6 0.5
HD2460 ACT-H02XX
/HNA-H24XX		 2.0～12.23 0.2～1.2 1.77～10.62 √ 1000 1.4～4.0 1.4～3.0 0.5
HD2461 ACT-H02XX
/HNA-H24XX		 2.0～12.23 0.2～1.2 1.77～10.62 √ 1000 1.4～4.0 1.4～3.0 0.5
HD2571 ACT-H03XX
/HNA-H25XX		 5.1～16.32 0.5～1.6 4.42～14.16 √ 800 2.0～5.0 2.0～4.2 0.6


Dimensions
