HD2351 5% Accuracy Automatic Torque Screwdriver Hand Hold Efficient Heat Dissipation
HD2351 5% Accuracy Automatic Torque Screwdriver Hand Hold Efficient Heat Dissipation
HD2351 5% Accuracy Automatic Torque Screwdriver Hand Hold Efficient Heat Dissipation
HD2351 5% Accuracy Automatic Torque Screwdriver Hand Hold Efficient Heat Dissipation
HD2351 5% Accuracy Automatic Torque Screwdriver Hand Hold Efficient Heat Dissipation
HD2351 5% Accuracy Automatic Torque Screwdriver Hand Hold Efficient Heat Dissipation
HD2351 5% Accuracy Automatic Torque Screwdriver Hand Hold Efficient Heat Dissipation
HD2351 5% Accuracy Automatic Torque Screwdriver Hand Hold Efficient Heat Dissipation
Specifications
Brand Name :
AND
Model Number :
HD2351
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Before T/T ; L/C
Delivery Time :
1-4 weeks
Packaging Details :
Paper Box
Name :
Hand Hold Smart Screwdrivers
The power of motor :
DC 40W
Max. speed(rpm) :
1200
Rated torque（ N.m) :
0.9
Batch Head :
Hexagon (Hex)（6.35mm）
Description

High torque Smart Screwdriver HD2351 Accuracy up to ±5%, can reduce production losses and thus reduce costs

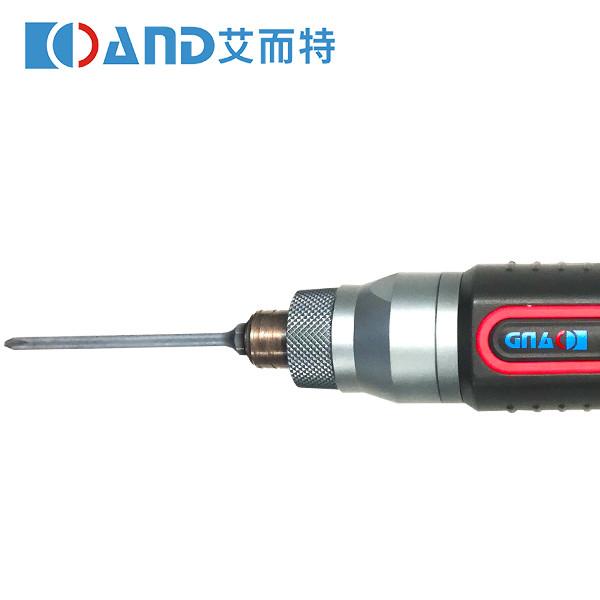

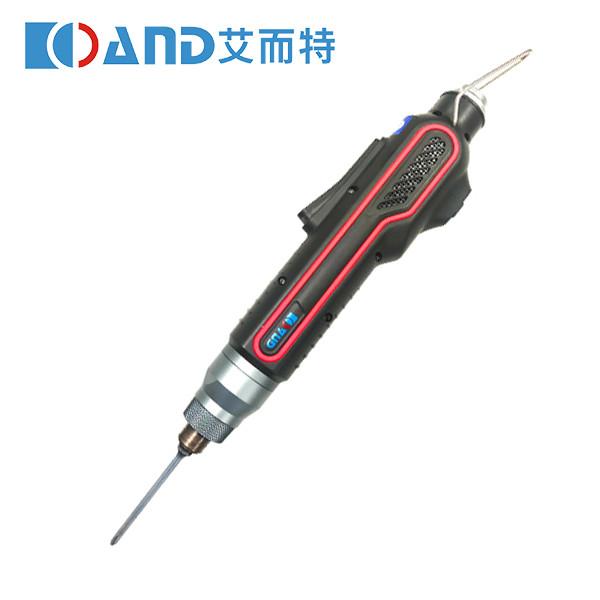

HD2351 Handheld Smart Screwdriver
Patented design
Ergonomic grip, non-slip, comfortable and secure
Efficient heat dissipation setting and ultra-low noise output
High-performance servo motor and high-precision reducer power transmission mechanism
High-precision angle sensor and two-color LED indication of lock attachment status
Safety level in line with the relevant data of GB3883/IEC60745 and other standards

This is the hexagon bits model of HD2350. The spcs are the same. (0.15 to 0.9 N.m's torque out put range,

1200 circles per minute maximum running speed, 0.5 kg of weight)

Just like HD2350, HD2351 also has mounting plate available, if you need it, please contact our technical staff.


Specifications

ModelAdapted
controller		Tool cableTorque output rangeStart-up methodMaximum
Speed
(rpm)		Adapted outer diameter of screw(mm)Weight
(kg)
kgf.cmN.mlbf.inTrigger buttonMachine ScrewTapping Screw
HD2120ACT-H00XX
/HNA-H21XX		C113X
/C123X
/C124X		0.2～2.350.02～0.230.18～2.04√50001.0～2.31.0～2.00.4
HD2350ACT-H01XX
/HNA-H23XX		1.52～9.180.15～0.91.33～7.97√12001.4～3.01.4～2.60.5
HD2351ACT-H01XX
/HNA-H23XX		1.52～9.180.15～0.91.33～7.97√12001.4～3.01.4～2.60.5
HD2460ACT-H02XX
/HNA-H24XX		2.0～12.230.2～1.21.77～10.62√10001.4～4.01.4～3.00.5
HD2461ACT-H02XX
/HNA-H24XX		2.0～12.230.2～1.21.77～10.62√10001.4～4.01.4～3.00.5
HD2571ACT-H03XX
/HNA-H25XX		5.1～16.320.5～1.64.42～14.16√8002.0～5.02.0～4.20.6


Dimensions
HD2351 5% Accuracy Automatic Torque Screwdriver Hand Hold Efficient Heat Dissipation
