MD2460 Machine loading Corded Electric Screwdriver 1.2/1.3N.M Rated torque
MD2460 Machine loading Corded Electric Screwdriver 1.2/1.3N.M Rated torque
MD2460 Machine loading Corded Electric Screwdriver 1.2/1.3N.M Rated torque
MD2460 Machine loading Corded Electric Screwdriver 1.2/1.3N.M Rated torque
MD2460 Machine loading Corded Electric Screwdriver 1.2/1.3N.M Rated torque
MD2460 Machine loading Corded Electric Screwdriver 1.2/1.3N.M Rated torque
MD2460 Machine loading Corded Electric Screwdriver 1.2/1.3N.M Rated torque
MD2460 Machine loading Corded Electric Screwdriver 1.2/1.3N.M Rated torque
MD2460 Machine loading Corded Electric Screwdriver 1.2/1.3N.M Rated torque
MD2460 Machine loading Corded Electric Screwdriver 1.2/1.3N.M Rated torque
Specifications
Brand Name :
AND
Model Number :
MD2460
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Before T/T ; L/C
Delivery Time :
1-4 weeks
Packaging Details :
Paper Box
Name :
Machine L 1 oad Smart Screwdrivers
The power of motor :
DC 40W
Max. speed (rpm) :
1000
Rated torque（N.m) :
1.2/1.3
Batch Head :
Half-moon (Tail)
Description

Machine-loading Servo Smart Screwdrive MD2460 Tightening data can be stored for 600 days and can be exported.

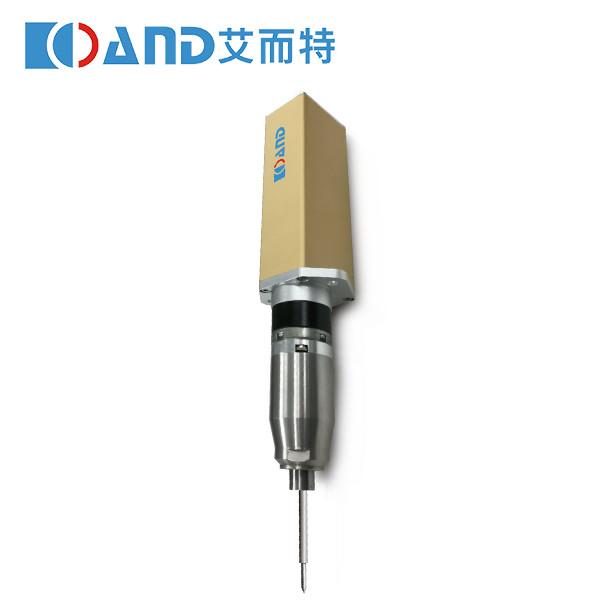

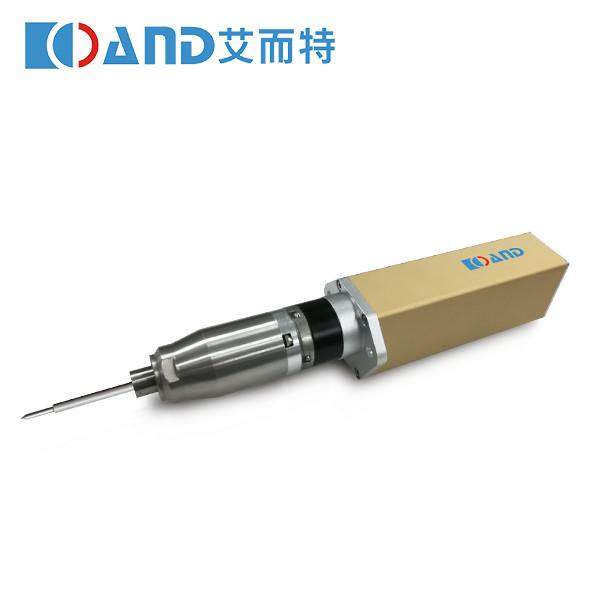

MD2460 Machine-loading Servo Smart Screwdriver
- Professional concept of modular, combined design solutions
- Leading servo motor drive plus precision reduction structure
- Blow/suction selectable automatic material supply method
- Safe and reliable special cable and connector configuration
- Multi-style, multi-series and multi-specification product selection
- Beautiful and compact appearance structure, convenient and flexible installation method and suitable for a variety of applications

MD2460 also has a great balance between the need for high torque and high efficiency.

The torque output range of this model is 0.2-1.2 N.m. It runs at a speed 1000 at maximum.

The last number "0" of MD2460 stands for half-moon type of screwdriver bits.

If you need to use hexagon type of screwdriver bits but need the same functionally please go to MD2461.

Compatible Controller: ACT-M02**；HNA-M24**


MD2460 Machine loading Corded Electric Screwdriver 1.2/1.3N.M Rated torque

Dimensions

Model Adapted
controller		 Tool cable Torque output range Maximum
Speed
(rpm)		 Weight
(kg)		 Applicable
batch head		 Adapted outer diameter of screw(mm)
kgf.cm N.m lbf.in
MD2120 ACT-M00XX
HNA-M21XX		 C112X 0.20～2.35 0.02～0.23 0.18～2.04 5000 0.5 Tail 1.0～2.0
MD2121 Hex(6.35mm)
MD2350 ACT-M01XX
HNA-M23XX		 1.52～9.18 0.15～0.90 1.33～7.97 1200 0.7 Tail 2.0～3.0
MD2351 Hex(6.35mm)
MD2460 ACT-M02XX
HNA-M24XX		 2.00～12.23 0.20～1.20 1.77～10.62 1000 0.7 Tail 2.0～4.0
MD2461 Hex(6.35mm)
MD5151 ACT-M10XX C212X 2.04～9.18 0.20～0.90 1.77～7.97 5000 1.0 Hex(6.35mm) 1.8～3.0
MD5152 Hex(4mm)
MD5381 ACT-M11XX 8.16～30.60 0.80～3.00 7.08～26.55 1200 1.3 Hex(6.35mm) 2.5～5.0
MD5382 Hex(4mm)
MD5601 ACT-M14XX 10.20～66.28 1.00～6.50 8.85～70.80 600 1.5 Hex(6.35mm) 4.0～6.0
MD6161 ACT-M20XX 3.06～13.26 0.30～1.30 2.66～11.50 5000 1.1 Hex(6.35mm) 2.0～4.0
MD6162 Hex(4mm)
ACT-M21XX 10.20～45.90 1.00～4.50 8.85～39.83 1200 1.4 Hex(6.35mm) 3.0～6.0
MD6392 Hex(4mm)
MD6601 ACT-M24XX 40.80～102.00 4.00～10.00 35.40～88.50 600 1.7 Hex(6.35mm) 4.0～8.0
MD6701 ACT-M27XX 71.30～153.00 7.00～15.00 61.90～132.00 300 1.9 Hex(6.35mm) 6.0～10.0


MD2460 Machine loading Corded Electric Screwdriver 1.2/1.3N.M Rated torque
