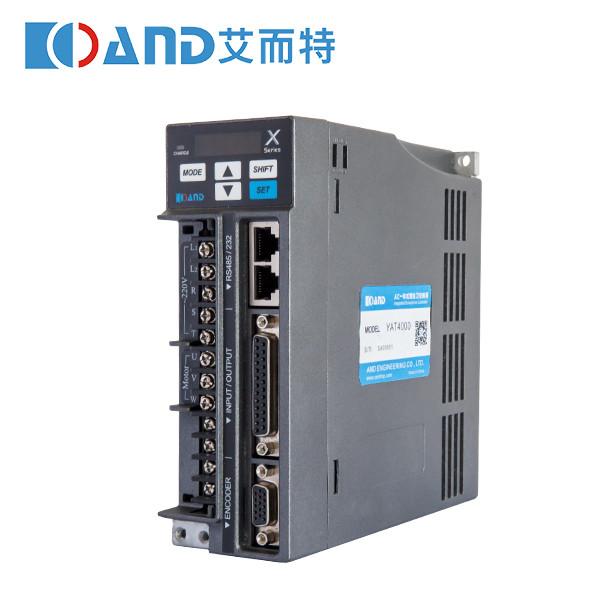

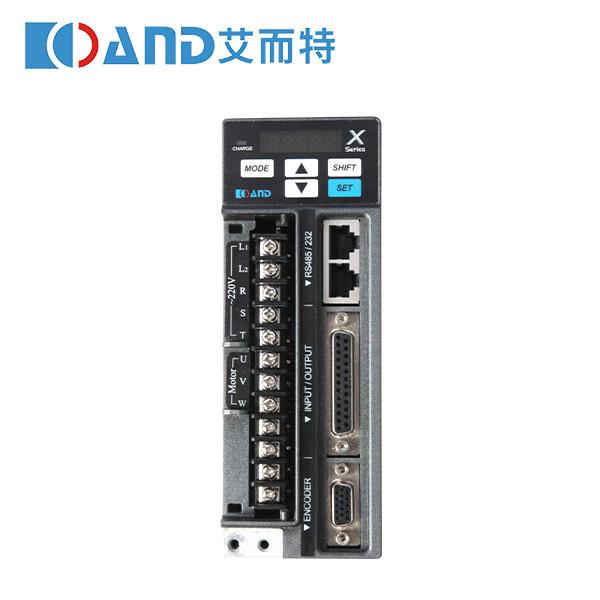

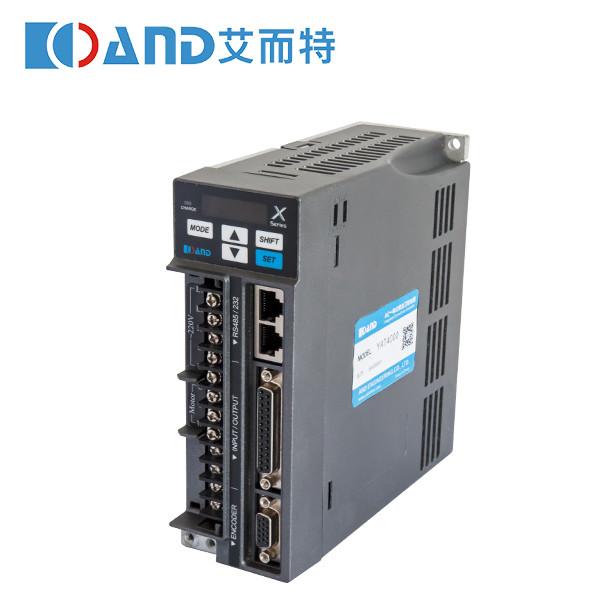

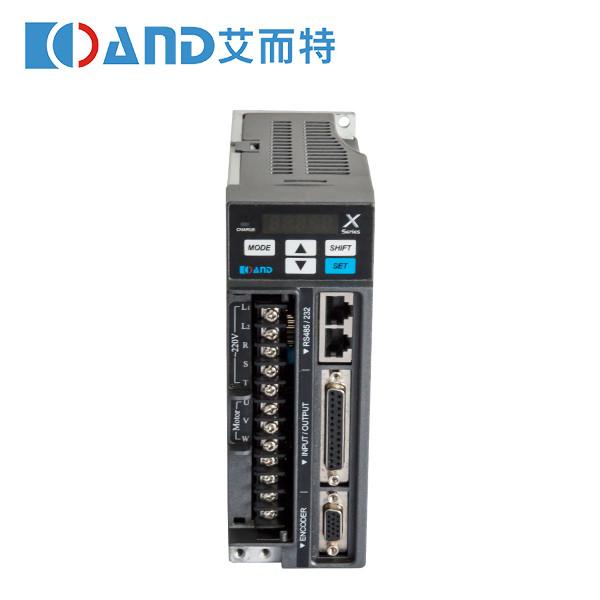

YAT - M 4 0 0 1 Miniaturization Electric Screwdriver Power Controller 400W
YAT - M 4 0 0 1 Miniaturization Electric Screwdriver Power Controller 400W
YAT - M 4 0 0 1 Miniaturization Electric Screwdriver Power Controller 400W
YAT - M 4 0 0 1 Miniaturization Electric Screwdriver Power Controller 400W
YAT - M 4 0 0 1 Miniaturization Electric Screwdriver Power Controller 400W
YAT - M 4 0 0 1 Miniaturization Electric Screwdriver Power Controller 400W
YAT - M 4 0 0 1 Miniaturization Electric Screwdriver Power Controller 400W
YAT - M 4 0 0 1 Miniaturization Electric Screwdriver Power Controller 400W
Specifications
Brand Name :
AND
Model Number :
YAT - M 4 0 0 1
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Packaging Details :
Paper Box
Delivery Time :
1-4 weeks
Payment Terms :
Before T/T ; L/C
Name :
YAT Series controller
Screwdriver type :
Machine load
Power :
≤400W
Reduction ratio :
None
User interface :
IO
Description
YAT - M 4 0 0 1 12 task modes suitable for a variety of assembly requirements
XDT Series Controller XDT Series Controller (AC)
Miniaturization design
12 task modes, suitable for a variety of assembly requirements
Up to 8 different torque parameter Settings per task
Drive integration, can provide torque, Angle monitoring and
deceleration tightening and other precision control
Provides IO for process control
Provide RS232 and RS485 communication commonly used in industry
Provides Ethernet interfaces for remote monitoring and control
Provide special upper computer software interface, including curve, data recording function
Convenient and flexible installation, suitable for a variety of applications
Dimensions(mm)
YAT - M 4 0 0 1 Miniaturization Electric Screwdriver Power Controller 400W
Specifications
Input voltage 1 1ΦAC200~230V±10% 50/60HZ
No-load consumption【1】 <20W
Output power【2】 100W/150W/200W/400W/750W
Display (Operation interface) Upper computer
Torque accuracy ±10%
The smallest unit of twist angle display 1degree(1°)
Tightening method ●Torque as priority (angle simultaneous monitoring secondly) ●Angle as priority (torque simultaneous monitoring secondly)
IO channel 8_CH Optocoupler isolated input(20mA/CH,Max) , 7_CH Optocoupler isolatedoutput(20mA/CH,Max)
Communication interface【3】 1,RS232 2,RS485
Recommended use environment Temperature -10 ° C ~ +60 ° C, humidity <90% RH (no condensation)
Storage environment Temperature -20 ° C ~ +85 ° C, humidity <90% RH (no condensation)
Weight About 0.75kg
Dimensions【4】 162(H)x60.1(W)X163.3(T)mm

[1] No-load consumption refers to the power consumption of the controller itself when the screwdriver body is not connected.
[2]The output power refers to the maximum output power of the internal servo drive of the controller, which matches the mounted servo motor.
[3]For the configuration of the communication interface, please refer to the product selection table.
[4]The external dimensions are the maximum appearance of the controller itself when erected and in front of your view.
