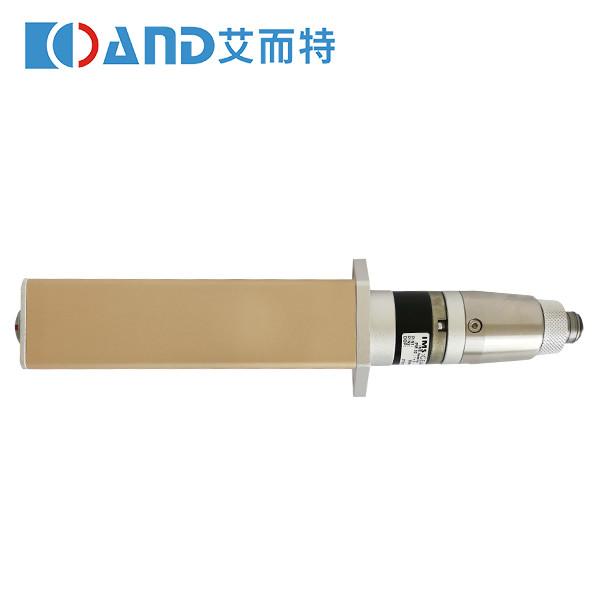

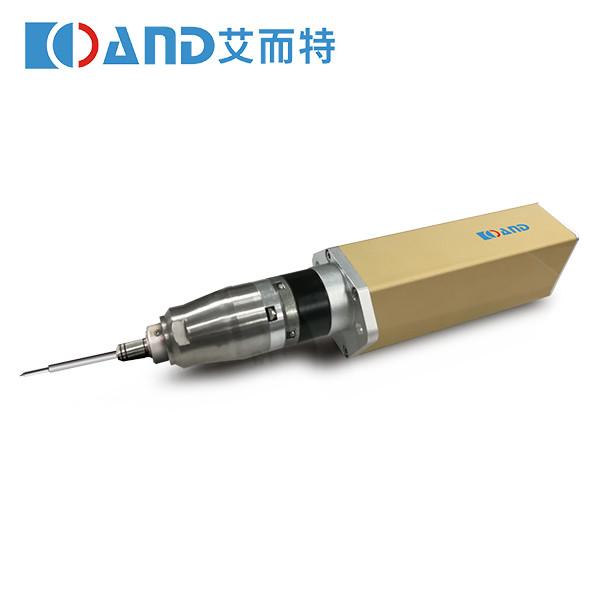

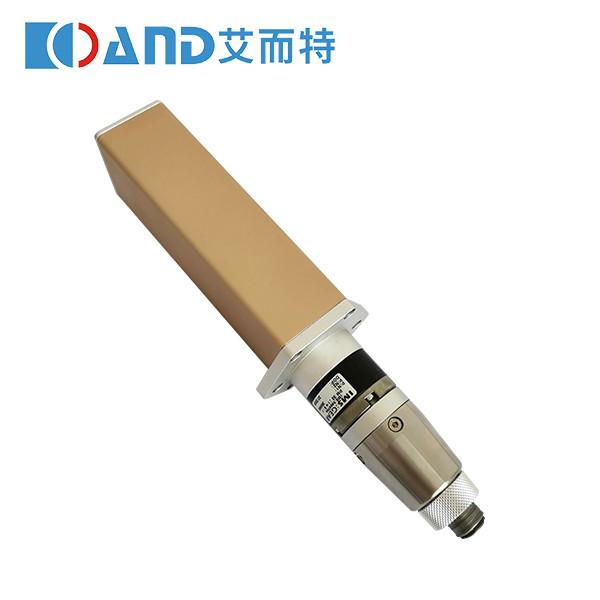

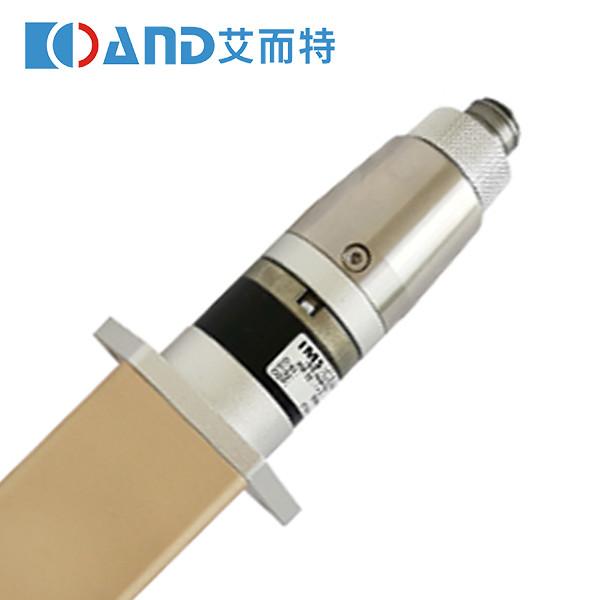

MD2351 Precision Reduction Structure Screwdriver Clockwise CE Certification
MD2351 Precision Reduction Structure Screwdriver Clockwise CE Certification
MD2351 Precision Reduction Structure Screwdriver Clockwise CE Certification
MD2351 Precision Reduction Structure Screwdriver Clockwise CE Certification
MD2351 Precision Reduction Structure Screwdriver Clockwise CE Certification
MD2351 Precision Reduction Structure Screwdriver Clockwise CE Certification
MD2351 Precision Reduction Structure Screwdriver Clockwise CE Certification
MD2351 Precision Reduction Structure Screwdriver Clockwise CE Certification
MD2351 Precision Reduction Structure Screwdriver Clockwise CE Certification
MD2351 Precision Reduction Structure Screwdriver Clockwise CE Certification
Specifications
Brand Name :
AND
Model Number :
MD2351
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Before T/T ; L/C
Delivery Time :
1-4 weeks
Packaging Details :
Paper Box
Name :
Machine L 1 oad Smart Screwdrivers
The power of motor :
DC 40W
Max. speed (rpm) :
1200
Rated torque（N.m) :
0.9
Batch Head :
Hexagon (Hex)（6.35mm）
Description

Machine-loading Smart Screwdriver MD2351 CE certification, can export to the EU and other countries which recognize CE

MD2351 Machine-loading Smart Screwdriver
- Professional concept of modular and combined design solution
- Leading servo motor drive plus precision reduction structure
- Blow/suction optional automatic feeding method
- Safe and reliable special cable and connector configuration
- Multi-style, multi-series and multi-specification product selection
- Beautiful and compact appearance structure, convenient and flexible installation method and suitable for a variety of applications

This is MD2350's Hex screwdriver bits adapted model.

It has the same spcs with model MD2350. (Which are 0.15~0.90 N.m, 1200 rpm max and 0.7 kg)

The compatible controller are the same as well. ( ACT series controller model M01** and HNA series controller model M23*** )

Dimensions(mm)
MD2351 Precision Reduction Structure Screwdriver Clockwise CE Certification


Dimensions

Model Adapted
controller		 Tool cable Torque output range Maximum
Speed
(rpm)		 Weight
(kg)		 Applicable
batch head		 Adapted outer diameter of screw(mm)
kgf.cm N.m lbf.in
MD2120 ACT-M00XX
HNA-M21XX		 C112X 0.20～2.35 0.02～0.23 0.18～2.04 5000 0.5 Tail 1.0～2.0
MD2121 Hex(6.35mm)
MD2350 ACT-M01XX
HNA-M23XX		 1.52～9.18 0.15～0.90 1.33～7.97 1200 0.7 Tail 2.0～3.0
MD2351 Hex(6.35mm)
MD2460 ACT-M02XX
HNA-M24XX		 2.00～12.23 0.20～1.20 1.77～10.62 1000 0.7 Tail 2.0～4.0
MD2461 Hex(6.35mm)
MD5151 ACT-M10XX C212X 2.04～9.18 0.20～0.90 1.77～7.97 5000 1.0 Hex(6.35mm) 1.8～3.0
MD5152 Hex(4mm)
MD5381 ACT-M11XX 8.16～30.60 0.80～3.00 7.08～26.55 1200 1.3 Hex(6.35mm) 2.5～5.0
MD5382 Hex(4mm)
MD5601 ACT-M14XX 10.20～66.28 1.00～6.50 8.85～70.80 600 1.5 Hex(6.35mm) 4.0～6.0
MD6161 ACT-M20XX 3.06～13.26 0.30～1.30 2.66～11.50 5000 1.1 Hex(6.35mm) 2.0～4.0
MD6162 Hex(4mm)
ACT-M21XX 10.20～45.90 1.00～4.50 8.85～39.83 1200 1.4 Hex(6.35mm) 3.0～6.0
MD6392 Hex(4mm)
MD6601 ACT-M24XX 40.80～102.00 4.00～10.00 35.40～88.50 600 1.7 Hex(6.35mm) 4.0～8.0
MD6701 ACT-M27XX 71.30～153.00 7.00～15.00 61.90～132.00 300 1.9 Hex(6.35mm) 6.0～10.0
MD2351 Precision Reduction Structure Screwdriver Clockwise CE Certification
