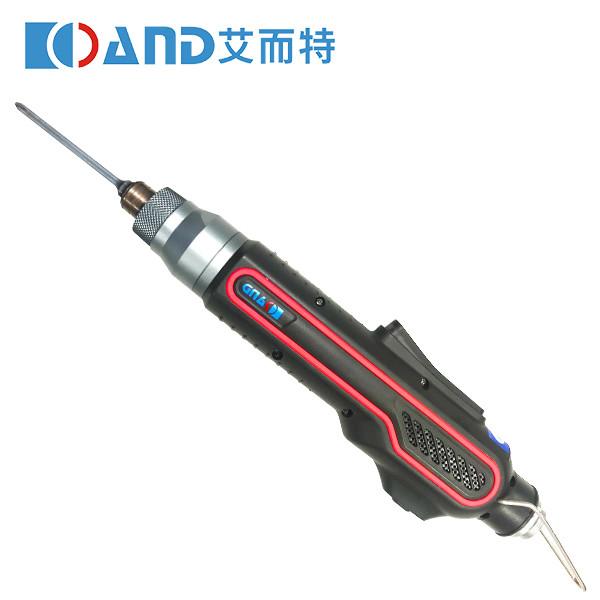

HD2571 800rpm Electric Precision Screwdriver 5% Accuracy High torque
HD2571 800rpm Electric Precision Screwdriver 5% Accuracy High torque
Specifications
Brand Name :
AND
Model Number :
HD2571
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Before T/T ; L/C
Delivery Time :
1-4 weeks
Packaging Details :
Paper Box
Name :
Hand Hold Smart Screwdrivers
The power of motor :
DC 40W
Max. speed(rpm) :
800
Rated torque（ N.m) :
1.6
Batch Head :
Hexagon (Hex)（6.35mm）
Description

Efficient heat dissipat Screwdriver HD2571 Accuracy up to ±5% High torque Low noise

HD2571 Handheld Smart Screwdriver


Patented design

Ergonomic grip, non-slip, comfortable and secure

Efficient heat dissipation setting and ultra-low noise output

High-performance servo motor and high-precision reducer power transmission mechanism

High-precision angle sensor and two-color LED indication of lock attachment status

Safety level in line with the relevant data of GB3883/IEC60745 and other standards

This model works with hexagon type of screwdriver bits and has mounting plate optional available.

It rotates at 800 circles per minute maximum, able to provide torque output at a range of 0.5-1.6 N.m

of torque and only weights about 0.6 kg.

There's optional mounting plate avaliable for model 2571. If you need it, please contact our tech staff before purchasing.

This is currently the model with highest torque in our handhold screwdriver product line. As our R&D team keep working

and more data collected form our customer there will be higher torque model available for this product line.

Specifications

Adapted
controller		 Tool cable Torque output range Start-up method Maximum
Speed
(rpm)		 Adapted outer diameter of screw(mm)
kgf.cm N.m lbf.in Trigger button Machine Screw Tapping Screw
HD2120 ACT-H00XX
/HNA-H21XX		 C113X
/C123X
/C124X		 0.2～2.35 0.02～0.23 0.18～2.04 √ 5000 1.0～2.3 1.0～2.0
HD2350 ACT-H01XX
/HNA-H23XX		 1.52～9.18 0.15～0.9 1.33～7.97 √ 1200 1.4～3.0 1.4～2.6
HD2351 ACT-H01XX
/HNA-H23XX		 1.52～9.18 0.15～0.9 1.33～7.97 √ 1200 1.4～3.0 1.4～2.6
HD2460 ACT-H02XX
/HNA-H24XX		 2.0～12.23 0.2～1.2 1.77～10.62 √ 1000 1.4～4.0 1.4～3.0
HD2461 ACT-H02XX
/HNA-H24XX		 2.0～12.23 0.2～1.2 1.77～10.62 √ 1000 1.4～4.0 1.4～3.0
HD2571 ACT-H03XX
/HNA-H25XX		 5.1～16.32 0.5～1.6 4.42～14.16 √ 800 2.0～5.0 2.0～4.2
