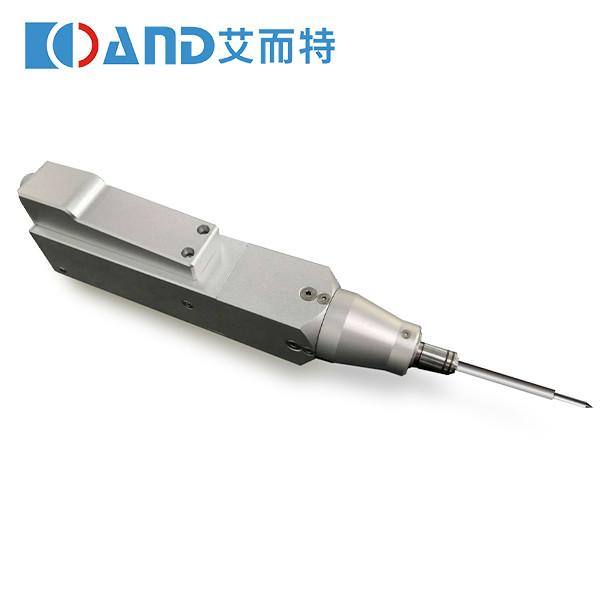

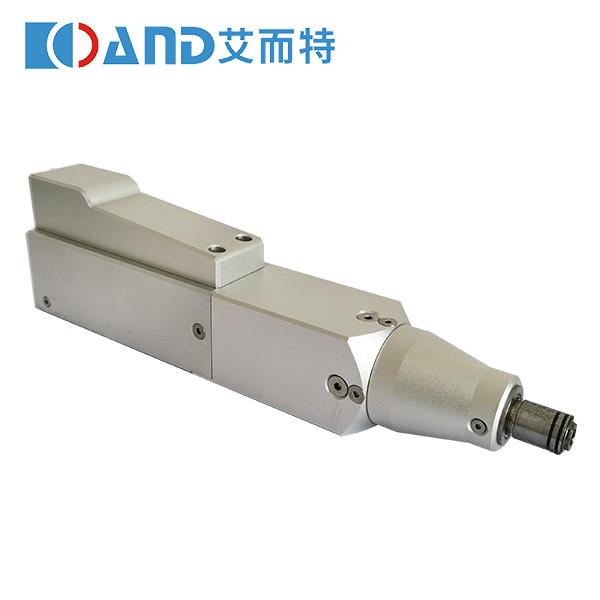

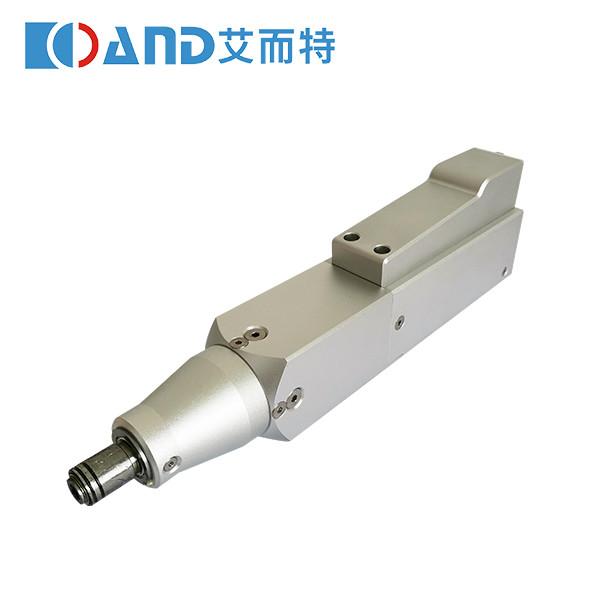

MD6601 AC 150W Smart Torque Screwdriver With Efficient Powerful Servo Motor
MD6601 AC 150W Smart Torque Screwdriver With Efficient Powerful Servo Motor
MD6601 AC 150W Smart Torque Screwdriver With Efficient Powerful Servo Motor
MD6601 AC 150W Smart Torque Screwdriver With Efficient Powerful Servo Motor
MD6601 AC 150W Smart Torque Screwdriver With Efficient Powerful Servo Motor
MD6601 AC 150W Smart Torque Screwdriver With Efficient Powerful Servo Motor
MD6601 AC 150W Smart Torque Screwdriver With Efficient Powerful Servo Motor
MD6601 AC 150W Smart Torque Screwdriver With Efficient Powerful Servo Motor
Specifications
Brand Name :
AND
Model Number :
MD6601
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Before T/T ; L/C
Delivery Time :
1-4 weeks
Packaging Details :
Paper Box
Name :
Machine Load Smart Screwdrivers
The power of motor :
AC 150W
Max. speed (rpm) :
600
Rated torque （N.m) :
6.5/10/15
Batch Head :
Hexagon (Hex)（6.35mm）
Description
Machine-loading Smart Screwdriver MD6601 Independent research and development, will update according to market demands
MD6601Machine-loading
Professional modular design.
Equipped with efficient and powerful servo motor.
Automatic screw feeding method. (Blow/Suction)
With Safe and reliable dedicated cable and connector configurations
Leading servo motor drive with precision reduction mechanism.
Nice and compact structure, convenient and flexible-
installation method, suitable for a variety of applications
This model only adapted with ACT series controller ACT-M24XX.
This model has higher torque output range and reasonable running speed. (4-10N.m and 600 rpm max).
It works with the hexgon type of screwdriver bits (6.35mm).

Dimensions (mm)

MD6601 AC 150W Smart Torque Screwdriver With Efficient Powerful Servo Motor

specifications

Model Adapted
controller		 Tool cable Torque output range Maximum
Speed
(rpm)		 Weight
(kg)		 Applicable
batch head		 Adapted outer diameter of screw(mm)
kgf.cm N.m lbf.in
MD2120 ACT-M00XX
HNA-M21XX		 C112X 0.20～2.35 0.02～0.23 0.18～2.04 5000 0.5 Tail 1.0～2.0
MD2121 Hex(6.35mm)
MD2350 ACT-M01XX
HNA-M23XX		 1.52～9.18 0.15～0.90 1.33～7.97 1200 0.7 Tail 2.0～3.0
MD2351 Hex(6.35mm)
MD2460 ACT-M02XX
HNA-M24XX		 2.00～12.23 0.20～1.20 1.77～10.62 1000 0.7 Tail 2.0～4.0
MD2461 Hex(6.35mm)
MD5151 ACT-M10XX C212X 2.04～9.18 0.20～0.90 1.77～7.97 5000 1.0 Hex(6.35mm) 1.8～3.0
MD5152 Hex(4mm)
MD5381 ACT-M11XX 8.16～30.60 0.80～3.00 7.08～26.55 1200 1.3 Hex(6.35mm) 2.5～5.0
MD5382 Hex(4mm)
MD5601 ACT-M14XX 10.20～66.28 1.00～6.50 8.85～70.80 600 1.5 Hex(6.35mm) 4.0～6.0
MD6161 ACT-M20XX 3.06～13.26 0.30～1.30 2.66～11.50 5000 1.1 Hex(6.35mm) 2.0～4.0
MD6162 Hex(4mm)
MD6392 ACT-M21XX 10.20～45.90 1.00～4.50 8.85～39.83 1200 1.4 Hex(6.35mm) 3.0～6.0
Hex(4mm)
MD6601 ACT-M24XX 40.80～102.00 4.00～10.00 35.40～88.50 600 1.7 Hex(6.35mm) 4.0～8.0
MD6701 ACT-M27XX 71.30～153.00 7.00～15.00 61.90～132.00 300 1.9 Hex(6.35mm) 6.0～10.0

MD6601 AC 150W Smart Torque Screwdriver With Efficient Powerful Servo Motor
