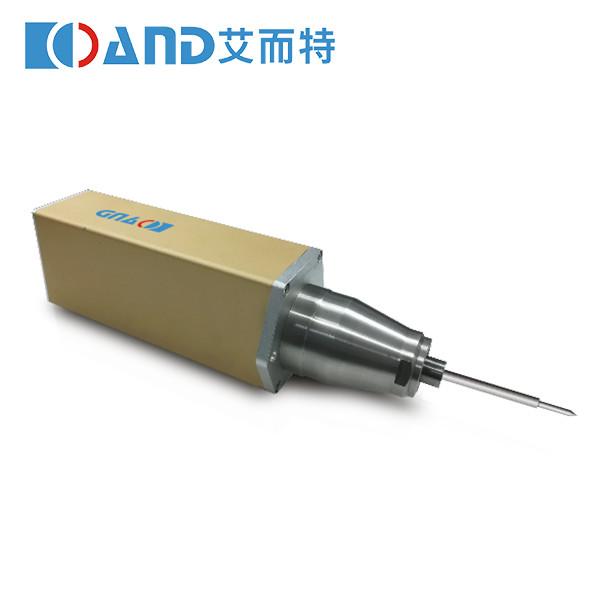

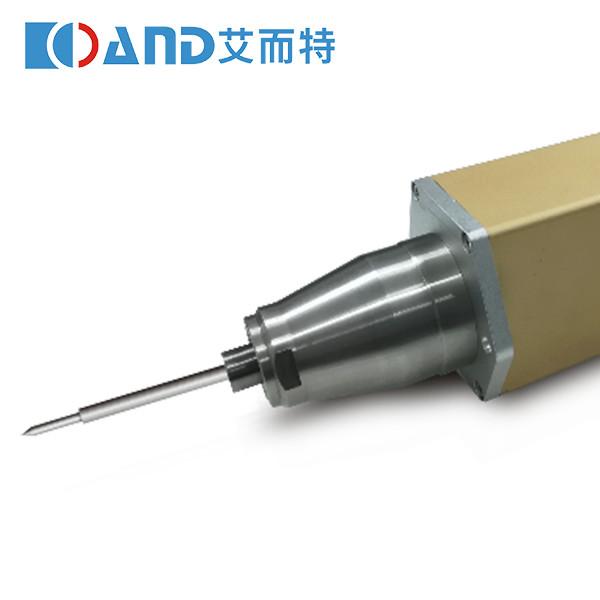

MD6161 Smart Motion Control Electric Screwdriver Signal Feedback NG/OK
MD6161 Smart Motion Control Electric Screwdriver Signal Feedback NG/OK
MD6161 Smart Motion Control Electric Screwdriver Signal Feedback NG/OK
MD6161 Smart Motion Control Electric Screwdriver Signal Feedback NG/OK
Specifications
Brand Name :
AND
Model Number :
MD6162
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Before T/T ; L/C
Delivery Time :
1-4 weeks
Packaging Details :
Paper Box
Name :
Machine Load Smart Screwdrivers
The power of motor :
AC 150W
Max. speed (rpm) :
5000
Rated torque （N.m) :
1.2/1.3
Batch Head :
Hexagon (Hex)（4mm）
Description

Machine-loading Smart Screwdriver MD6162 Signal feedback (NG/OK) Faster delivery time Beautiful appearance design

This is the one works with hexgon screwdriver bits (4mm) and have the same spcs like MD6161. (0.3-1.3 N.m torque range, 5000 rpm of speed and 1.1kg of weight).

You can see the mounting sizes of screwdriver bits chart below.

Dimensions (mm)

MD6161 Smart Motion Control Electric Screwdriver Signal Feedback NG/OK

specifications

Model Adapted
controller		 Tool cable Torque output range Maximum
Speed
(rpm)		 Weight
(kg)		 Applicable
batch head		 Adapted outer diameter of screw(mm)
kgf.cm N.m lbf.in
MD2120 ACT-M00XX
HNA-M21XX		 C112X 0.20～2.35 0.02～0.23 0.18～2.04 5000 0.5 Tail 1.0～2.0
MD2121 Hex(6.35mm)
MD2350 ACT-M01XX
HNA-M23XX		 1.52～9.18 0.15～0.90 1.33～7.97 1200 0.7 Tail 2.0～3.0
MD2351 Hex(6.35mm)
MD2460 ACT-M02XX
HNA-M24XX		 2.00～12.23 0.20～1.20 1.77～10.62 1000 0.7 Tail 2.0～4.0
MD2461 Hex(6.35mm)
MD5151 ACT-M10XX C212X 2.04～9.18 0.20～0.90 1.77～7.97 5000 1.0 Hex(6.35mm) 1.8～3.0
MD5152 Hex(4mm)
MD5381 ACT-M11XX 8.16～30.60 0.80～3.00 7.08～26.55 1200 1.3 Hex(6.35mm) 2.5～5.0
MD5382 Hex(4mm)
MD5601 ACT-M14XX 10.20～66.28 1.00～6.50 8.85～70.80 600 1.5 Hex(6.35mm) 4.0～6.0
MD6161 ACT-M20XX 3.06～13.26 0.30～1.30 2.66～11.50 5000 1.1 Hex(6.35mm) 2.0～4.0
MD6162 Hex(4mm)
MD6392 ACT-M21XX 10.20～45.90 1.00～4.50 8.85～39.83 1200 1.4 Hex(6.35mm) 3.0～6.0
Hex(4mm)
MD6601 ACT-M24XX 40.80～102.00 4.00～10.00 35.40～88.50 600 1.7 Hex(6.35mm) 4.0～8.0
MD6701 ACT-M27XX 71.30～153.00 7.00～15.00 61.90～132.00 300 1.9 Hex(6.35mm) 6.0～10.0
