Specifications
Brand Name :
JEWELLED
Model Number :
JLD-P08
Certification :
CE
Place Of Origin :
China
MOQ :
1 piece sample is supported.
Price :
$50-$90
Payment Terms :
T/T
Supply Ability :
100K/month
Delivery Time :
3-5 working days for sample
Packaging Details :
1pc/bubble bag, proper qty in a carton
Product name :
Android Motherboard For Supermarket Intelligent Electronic Scale
PCB size :
146mm*70mm*1.6mm
OS :
Android
RTC :
Support power off clock memory, support automatic switch
Camera :
USB camera
Temperature :
-20° To 80℃
Memory card :
TF-CARD
Ethernet :
10/100/1000M
Description
RK3568 Motherboard Android Motherboard For Supermarket Intelligent Electronic Scale 4+64G

Description of High-Performance P08

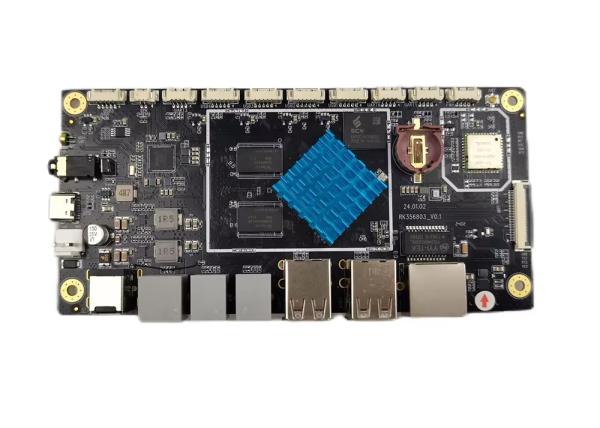

The P08 Android motherboard adopts the RK3568 quad core Cortex-A55 architecture, a 64 bit processor, and a maximum frequency of 2.0GHz. It has powerful video encoding and decoding capabilities, supporting high-definition decoding of various formats such as 4K H.264/H.265/VP9, as well as H.264/H.265 1080p@60fps Encoding and high-quality JPEG encoding/decoding.

RK3568 Motherboard Android Motherboard For Supermarket Intelligent Electronic Scale 4+64G
Technical Parameters of High-Performance P08
Specification Details
Memory 2G/4G/8G DDR4 For Option
Wireless 2.4G/5G WiFi BT
Audio output 3.5mm Headphone Interface, MIC, 2P1.25 Speaker Interface
PCB size 146mm*70mm*1.6mm
Touch panel I2C And USB Port Touch Panel
Memory card TF-CARD
Temperature -20° To 80℃
Embedded Yes
Power supply DC12V3A Input (Printer Not Included)
OS Android 11/ Ubuntu 20.04

Applications of Embedded Main Board JLD-P08

Supermarket Smart Electronic Scale: The P08 motherboard supports HDMI and LVDS interfaces, with rich interface configurations that can connect external devices such as barcode scanners, printers, and cash boxes, meeting the diverse functional requirements of supermarket smart electronic scales, such as quickly scanning product barcodes, printing shopping receipts, and supporting electronic payments. At the same time, it has excellent processor performance and graphics processing capabilities, which can quickly and accurately process weighing data and display product images and other information clearly on the screen.

POS machine cash register system:RK3568 motherboard P08 integrates multiple advanced technologies, integrating multiple links of the cash register process to achieve fast and accurate sales settlement. By scanning product barcodes, identifying product information, and combining multiple payment methods, we meet the diverse payment needs of consumers. At the same time, the system has functions such as data storage, report analysis, and financial management, helping merchants to comprehensively grasp their business situation. The P08 motherboard can maintain rapid response when processing large amounts of transaction data. The optimized algorithm and data structure design further improve the speed and accuracy of checkout, and can operate stably even during peak hours, providing strong support for merchant operations.


RK3568 Motherboard Android Motherboard For Supermarket Intelligent Electronic Scale 4+64G

RK3568 Motherboard Android Motherboard For Supermarket Intelligent Electronic Scale 4+64G
Packing and Shipping

Product Name: Android Embedded Board

Description: High-performance embedded board running Android OS

Package Contents:

  • Android Embedded Board
  • Power Adapter
  • User Manual

Shipping Information:

  • Shipping Method: Standard Shipping
  • Estimated Delivery Time: 5-7 business days
Customer Review
RK3568 Motherboard Android Motherboard For Supermarket Intelligent Electronic Scale 4+64G
FAQ
Q: What is the brand name of the Android Embedded Board?
A: The brand name is JEWELLED.
Q: What is the model number of the Android Embedded Board?
A: The model number is JLD-P08.
Q: Where is the Android Embedded Board manufactured?
A: The Android Embedded Board is manufactured in China.
Q: What is the certification of the Android Embedded Board?
A: The Android Embedded Board is CE certified.
Q: What are the payment terms for purchasing the Android Embedded Board?
A: The payment terms are T/T.
