RK3288 Android POS Embedded Touch Display Mainboard POS Terminal Board
RK3288 Android POS Embedded Touch Display Mainboard POS Terminal Board
Specifications
Brand Name :
JEWELLED
Model Number :
JLD-P06
Place Of Origin :
China
MOQ :
1 piece sample is supported.
Price :
$40-$60
Payment Terms :
T/T
Supply Ability :
100K/month
Delivery Time :
3-5 working days for sample
Packaging Details :
1pc/bubble bag, proper qty in a carton
Product name :
POS Embedded Touch Display Mainboard
RTC :
Support power-off clock memory， automatic power on and off
Temperature :
-20°-80℃
Power supply :
DC12V3A input
TP :
I2C /USB interface TP
Audio Output :
Stereo, support Dolby sound effect
PCB Size :
100mm*80mm
Description
RK3288 Android POS Embedded Touch Display Mainboard POS Terminal Board

The POS Motherboard RK3288 PCB Main Board is designed for POS machines and AI electronic scales. Its interface design features both I2C and USB dual interface touch screen adaptation solutions. The I2C interface offers low power consumption and strong anti-interference capabilities, ideal for fixed POS terminals requiring high stability. The USB interface supports plug-and-play functionality, enabling quick debugging and maintenance of terminal devices. These dual interfaces enhance compatibility with various touch screens and reduce merchant device selection and deployment costs.

The motherboard is powered by an RK3288 quad-core Cortex-A17 processor with a maximum clock speed of 1.8GHz. The Cortex-A17 architecture delivers excellent energy efficiency, and the quad-core parallel computing design efficiently handles multitasking. Integrated Mali-T764 GPU supports AFBC (frame buffer compression technology), reducing memory bandwidth usage and power consumption. It's compatible with multiple graphics interface standards including OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and DirectX9.3, ensuring smooth graphical interfaces and dynamic payment animations in POS systems while meeting high-definition output requirements for dual-screen displays.

Key Features
  • Product Name: POS Motherboard
  • PCB Size: 100mm × 80mm
  • Memory: 2G/4G LPDDR3 Option
  • Power supply: DC12V3A Input
  • Wi-Fi: 2.4G/5G WiFi BT
  • TP: I2C /USB Interface TP
Applications

The motherboard is equipped with the RK3288 quad core Cortex-A17 processor, with a maximum frequency of 1.8GHz, which can efficiently process multiple tasks such as transaction accounting and product recognition. The Mali-T764 GPU supports multiple graphics protocols and AFBC technology, coupled with 1080P high-definition display output, making the POS machine's guest display screen and self-service machine operation interface smooth and clear with dual screen abnormal display, and the touch response is as fast as 0.5 seconds. At the same time, the low-power feature adapts to the 7 * 24-hour uninterrupted operation requirements of the equipment, and ensures stability through high and low temperature testing. ​
POS machine scenario: widely used in supermarkets, restaurants, etc. This motherboard connects external devices such as cash boxes, barcode scanners, and invoice printers through rich USB and RS232 interfaces, supporting card swiping, scanning, and other aggregated payments. The dual screen display function can synchronously present product lists and marketing information, improving transaction efficiency. ​
Self service payment machine scenario: In the devices installed in supermarkets in Shenzhen, Wuhan and other places, the motherboard drives barcode scanning, RFID recognition and weighing comparison modules to achieve accurate product accounting. Combined with facial recognition payment to complete the entire self-service process, labor costs are significantly reduced. Supports multiple network modes such as WiFi and 4G to ensure real-time transmission of transaction data.

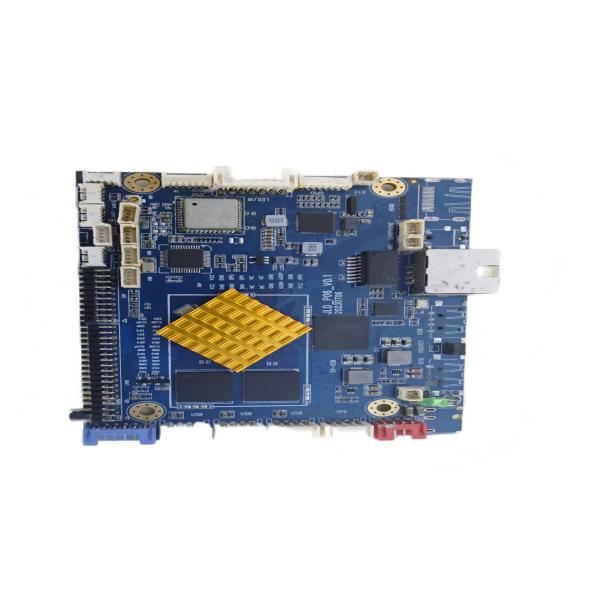

Product Images
RK3288 Android POS Embedded Touch Display Mainboard POS Terminal Board RK3288 Android POS Embedded Touch Display Mainboard POS Terminal Board RK3288 Android POS Embedded Touch Display Mainboard POS Terminal Board
Frequently Asked Questions
Q: What is the brand name of the POS Motherboard product?
A: The brand name is JEWELLED.
Q: What is the model number of the POS Motherboard product?
A: The model number is JLD-P06.
Q: Where is the POS Motherboard product manufactured?
A: The product is manufactured in China.
Q: What is the minimum order quantity for the POS Motherboard product?
A: The minimum order quantity is 1pc.
Q: What are the payment terms for purchasing the POS Motherboard product?
A: The payment terms are T/T.
