SM Dual Window 2x2 Fiber Optic Coupler With FC APC Connector
SM Dual Window 2x2 Fiber Optic Coupler With FC APC Connector
Specifications
Brand Name :
ANC
Model Number :
2x2 Coupler
Certification :
RoHS
Place of Origin :
China
MOQ :
1pc
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
20000pcs per month
Delivery Time :
5-10 working days
Packaging Details :
2pcs per box
Port :
2x2 or customized
Wavelength :
1310/1550 or customized
Bandwidth :
1310±40, 1550±40
Split Ratio :
50/50 or customized
Packing :
Steel tube or ABS box optional
Pigtail :
0.9mm or 2.0mm or customized
Description

2x2 Fiber Optic Coupler SM Dual Window 1310 / 1550nm 1m with FC/APC Connector

Description

2x2 Fiber Optic Coupler manufactured by ANC International Co., Limited is mainly used to distribute light from a main fiber into two or more fibers. Fused Biconical Taper (FBT) Splitter is made by wrapping two fiber cores together, putting tension on the optical fibers, and then heating the junction until the two fibers are tapered from the tension and fused together. This coupler features good uniformity, low excess loss, and very low polarization sensitivity.

Specification

Different combinations of coupling ratio
1310nm, 1550nm, 850nm, 1490nm or customized wavelength optional
Low crosstalk & excess loss
High optical return loss
Available in 250um & 900um fiber, 2mm or 3mm jacket optical cable.
Optional connectors termination upon request
Low polarisation dependent loss (PDL)
Excellent environmental and mechanical stability
Good directivity

Features

RoHS Compliant

Telecordia GR-1221 Compliant

Usage

FTTH network
Passive Optical Network
CATV Network
Optical Communication System
Optical Amplifier

Technical Data

Specifications
Parameters Grade P Grade A
Port 1x2 or 2x2
Operating wavelength (nm) 1310, 1490 and 1550; Others on Request
Operating bandwidth (nm) 1310 ± 40,1490 ± 10 and 1550 ±40
Insertion loss (dB) 50/50 ≤3.6/3.6 ≤3.8/3.8
40/60 ≤4.7/2.7 ≤5.0/3.0
30/70 ≤6.0/1.9 ≤6.3/2.4
20/80 ≤7.9/1.3 ≤8.4/1.5
10/90 ≤11.2/0.8 ≤11.6/1.1
5/95 ≤14.5/0.5 ≤15.2/0.8
2/98 ≤18.7/0.4 ≤19.4/0.7
1/99 ≤22.4/0.3 ≤23.5/0.5
PDL (dB) ≤0.15 ≤0.20
Directivity (dB) ≥55
Fiber Type SMF-28e Compatible; Others on Request
Operating temperature (℃) -40 ~ +85
Package (mm) 250μm Bare Fiber: Steel Tube, Φ3 × 54
0.9 mm Loose Tube: Steel Tube, Φ3 × 54
2 mm or 3 mm Cable: ABS Box, 90 × 20 × 10

Notes: All the data are tested without connectors. Insertion loss of one pair of connector is less than 0.3 dB.
Other specifications can be made on customer request.

SM Dual Window 2x2 Fiber Optic Coupler With FC APC Connector

Order Information

Type Port Grade Wavelength Fiber Type Pigtail Package Fiber Length Connector
Fiber Coupler 1x2 P 1310/1490/1550 SMF-28e 250um Φ3 × 54 0.5m none
2x2 A custom custom 0.9mm 90×20×10 1m LC/UPC
custom 　 　 　 2mm custom custom LC/APC
　 3mm 　 　 SC/UPC
custom SC/APC
　 FC/UPC
custom

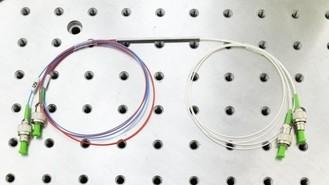

Product Picture

SM Dual Window 2x2 Fiber Optic Coupler With FC APC Connector

SM Dual Window 2x2 Fiber Optic Coupler With FC APC Connector
