SM G652D Fiber Optic Pigtail
SM G652D Fiber Optic Pigtail
SM G652D Fiber Optic Pigtail
SM G652D Fiber Optic Pigtail
SM G652D Fiber Optic Pigtail
SM G652D Fiber Optic Pigtail
SM G652D Fiber Optic Pigtail
SM G652D Fiber Optic Pigtail
SM G652D Fiber Optic Pigtail
SM G652D Fiber Optic Pigtail
Specifications
Brand Name :
ANC
Model Number :
SC Fiber Optic Pigtail
Certification :
RoHS
Place of Origin :
China
MOQ :
1pc
Price :
please ask
Supply Ability :
36000pcs terminator per day
Packaging Details :
1 set per bag
Color :
12color or 8color or 4 color customized
Pigtail :
Easy strip, tight buffer optional
Jacket :
LSZH, PVC optional
Length :
1m, 1.5m, 2m, Customized
Fiber :
SM G652D, SM G657A1/2, OM1/2, OM3/4 customized
Connector :
SC, LC, FC, ST, E2000, customized
Description

ODF Assembly Fiber Optic Pigtail Connector12 Color SM SC APC SC PC LC PC

Description

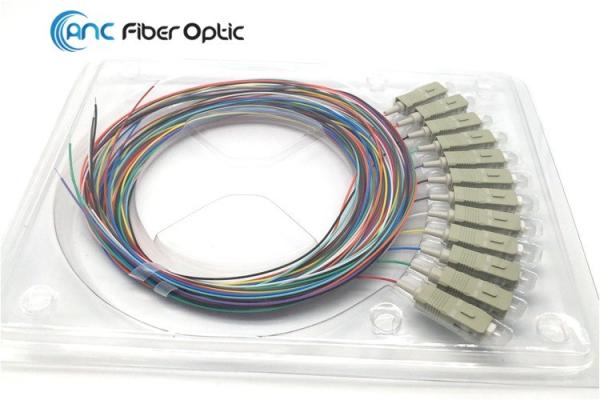

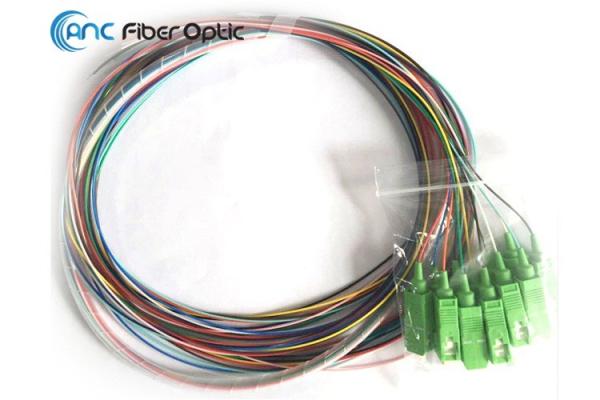

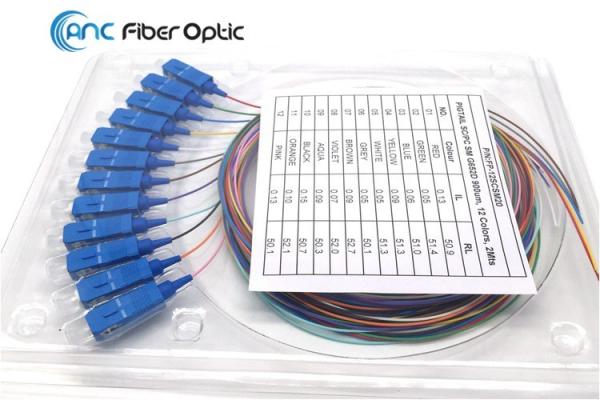

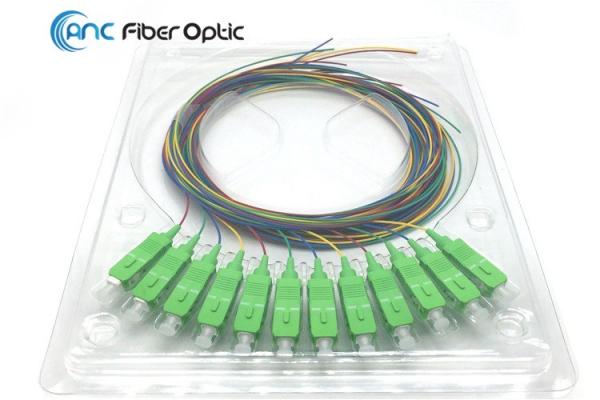

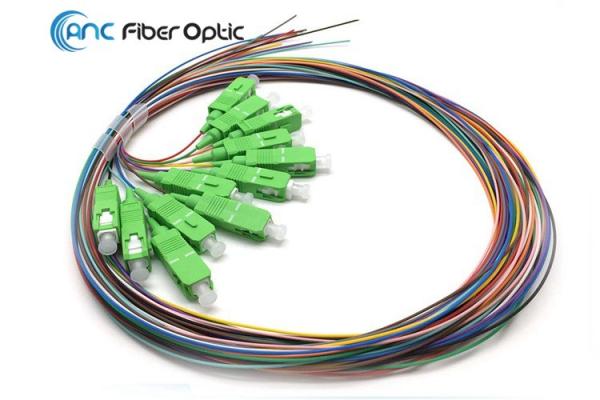

12 Colors SM SC/APC SC/PC Fiber Optic Pigtail manufactured by ANC International Co., Limited is used in WANs, LANs, and telecommunications. It is ideal for fusion splicing. ANC produces and supplies the 12-color fiber optic pigtail at high quality and competitive price. Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other. The connectors can be SC, LC, FC, ST, E2000 optional; fiber cable, color, packing is customized. ANC International Co., Limited is good at OEM production for these 12color fiber optic pigtails

Features

Superior qualified standard, PC, APC, UPC polishing

100% optic test: Insertion Loss: ≤0.25dB

100% optic test: Return Loss: ≥50 (UPC); ≥60 (APC); ≥30 (MM PC);

φ0.9mm, φ2.0mm, φ3.0mm cable optional

Single mode (9/125) or OM1, OM2, OM3, OM4 fiber available

FC, SC, LC, ST, E2000, etc. connector

Available in distribution cable or separate pigtails

Applications

Patch panel, ODF splicing

Telecommunication networks

Data center

Technical Data

Characteristics Unit Value/Performance
Insertion Loss (IL) dB ≤0.25 typical (100% test)
Return Loss (RL) dB PC≥50; APC≥60 typical (100% test)
Length Meter +10cm/-0cm
Endface / Perfect clean (100% test)
Radius of curvature mm 7~25 (check upon client request)
Apex offset um 0~50 (check upon client request)
Radial fiber height nm -50~+50 (check upon client request)
Operating Temperature ℃ -40~+80
