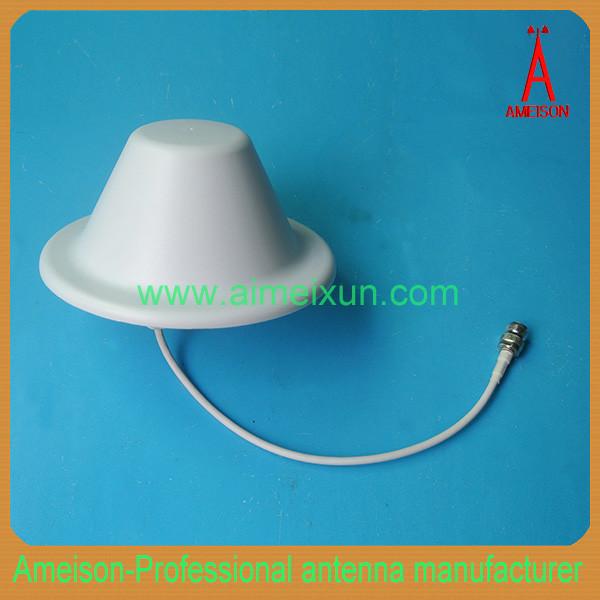

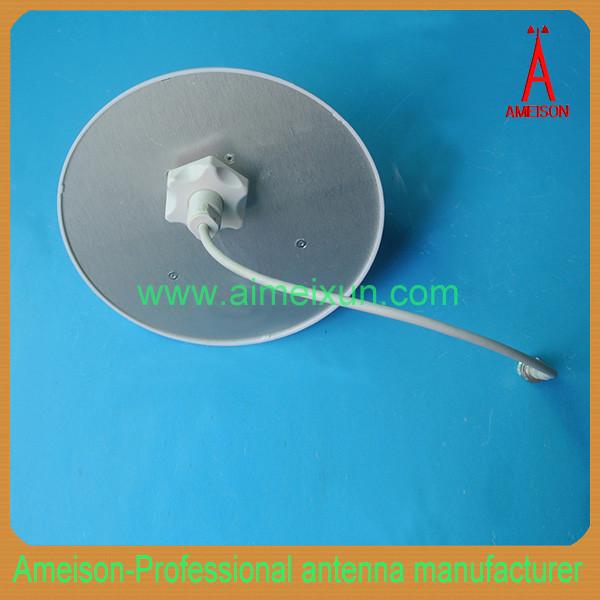

806-2500Mhz 5dBi Indoor wifi ceiling mount omni antenna GSM CDMA PCS 3G WLAN antenna
806-2500Mhz 5dBi Indoor wifi ceiling mount omni antenna GSM CDMA PCS 3G WLAN antenna
806-2500Mhz 5dBi Indoor wifi ceiling mount omni antenna GSM CDMA PCS 3G WLAN antenna
806-2500Mhz 5dBi Indoor wifi ceiling mount omni antenna GSM CDMA PCS 3G WLAN antenna
806-2500Mhz 5dBi Indoor wifi ceiling mount omni antenna GSM CDMA PCS 3G WLAN antenna
806-2500Mhz 5dBi Indoor wifi ceiling mount omni antenna GSM CDMA PCS 3G WLAN antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXC-8025-5B
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
806～960/1710～2500
Bandwidth（MHz） :
154/790
Gain（dBi） :
5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female
Mounting way :
fastened with screw nuts
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

806-2500Mhz wifi ceiling mount antenna

Antenna gain is 5 dBi

Beautifull appearance

Indoor GSM/CDMA/PCS/3G/WLAN system

806-2500MHz Directional Ceiling Mount Antenna

AMXC-8025-5B

Feature:

Exquisite appearance

Suitable for ordinary ceiling mounting

Optimized dimension

Wide frequency band,low standing wave

Application:

Indoor coverage

GSM/CDMA/PCS/3G/WLAN system

AMXC-8025-5B

Electrical Specifications

Frequency range(MHz)

806～960/1710～2500

Bandwidth(MHz)

154/790

Gain(dBi)

5

Half-power beam width(°)

H:120 V:80/

H:110 V:70

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Maximum input power(W)

50

Lightning protection

DC Ground

Input connector type

N Female

Mechanical Specifications

Dimensions(mm)

Φ185×90

Antenna weight(kg)

0.25

Operating temperature(°c)

-40～60

Radome material

ABS

Radome color

white

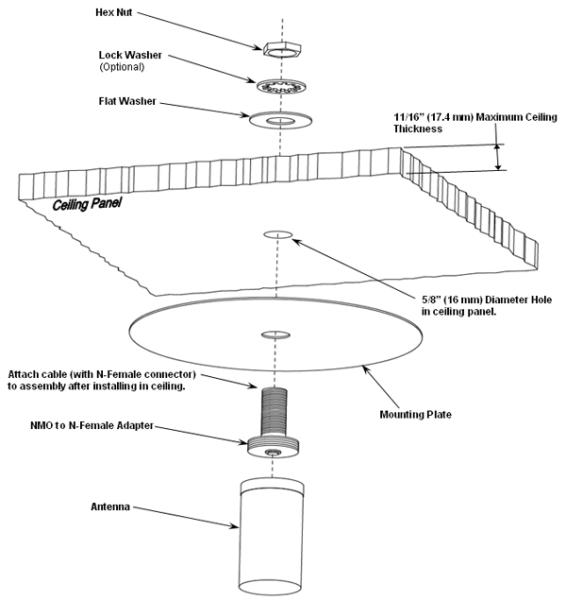

Mounting way

fastened with screw nuts
