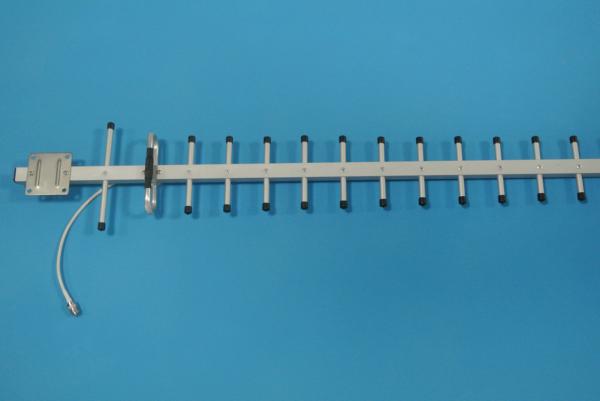

890-960MHz 14dBi Directional Yagi Antenna GSM antenna CDMA antenna
890-960MHz 14dBi Directional Yagi Antenna GSM antenna CDMA antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Certification :
RoHS and REACH Compliant by Exemption
Model Number :
AMXY-8090-14
Frequency range（MHz） :
890-960
Bandwidth（MHz） :
70
Gain（dBi） :
14
Element :
12
VSWR :
≤1.5
Polarization :
Horizontal or Vertical
Lightning protection :
DC Ground
Input connector type :
T TNC Male or Requested
Clamp :
U-shape
MOQ :
500 pcs per item
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
Description

890-960MHz Directional Yagi Antenna

AMXY-8090-14

Feature:

High gain

Aluminum alloy framework

Full day working

Optimized dimension

Mounting way can be Vertical or Horizontal

Application:

CDMA,GSM system

Point-to-point,point-to-multipoint system

Wireless bridging,client terminal antennas

AMXY-8090-14

Electrical Specifications

Frequency range(MHz)

890-960

Bandwidth(MHz)

70

Gain(dBi)

14

Element

12

Half-power beam width(°)

H:35 V:33

Front-to-back ratio(dB)

≥16

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Horizontal or Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

T TNC Male or Requested

Mechanical Specifications

Dimensions(mm)

900*190*54

Cable length(m)

0.3

Antenna weight(kg)

0.5

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Clamp

U-shape

Mounting hardware(mm)

Φ35～Φ50
