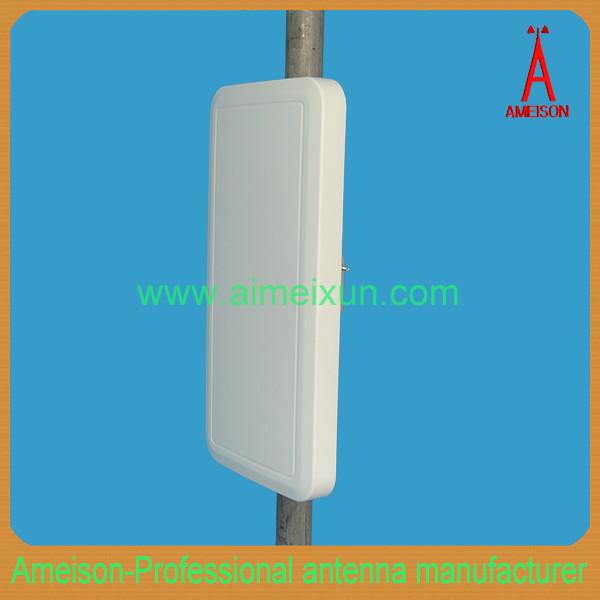

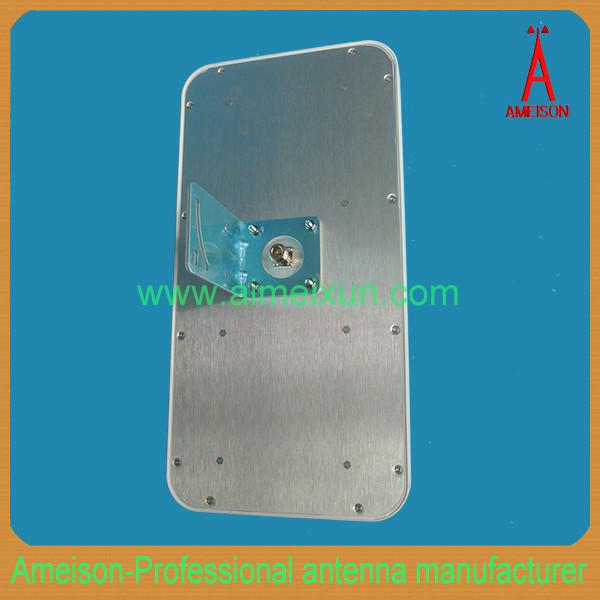

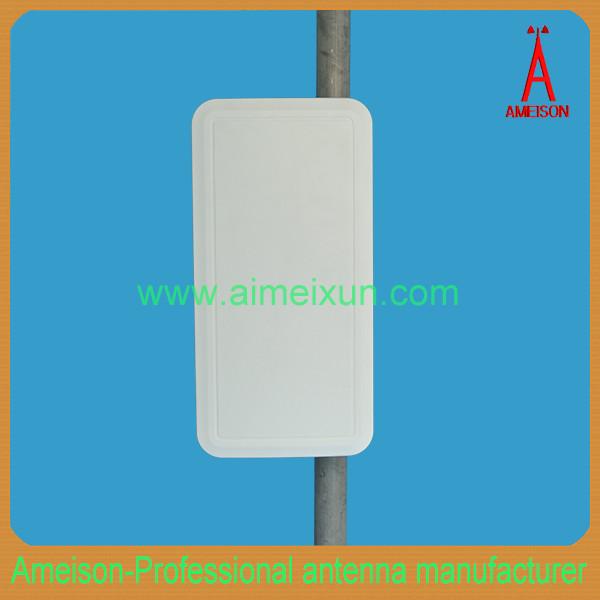

Outdoor/Indoor 2.3- 2.7GHz 14dBi Flat Panel Antenna WLAN wifi Wall Mount Antenna
Outdoor/Indoor 2.3- 2.7GHz 14dBi Flat Panel Antenna WLAN wifi Wall Mount Antenna
Outdoor/Indoor 2.3- 2.7GHz 14dBi Flat Panel Antenna WLAN wifi Wall Mount Antenna
Outdoor/Indoor 2.3- 2.7GHz 14dBi Flat Panel Antenna WLAN wifi Wall Mount Antenna
Outdoor/Indoor 2.3- 2.7GHz 14dBi Flat Panel Antenna WLAN wifi Wall Mount Antenna
Outdoor/Indoor 2.3- 2.7GHz 14dBi Flat Panel Antenna WLAN wifi Wall Mount Antenna
Outdoor/Indoor 2.3- 2.7GHz 14dBi Flat Panel Antenna WLAN wifi Wall Mount Antenna
Outdoor/Indoor 2.3- 2.7GHz 14dBi Flat Panel Antenna WLAN wifi Wall Mount Antenna
Outdoor/Indoor 2.3- 2.7GHz 14dBi Flat Panel Antenna WLAN wifi Wall Mount Antenna
Outdoor/Indoor 2.3- 2.7GHz 14dBi Flat Panel Antenna WLAN wifi Wall Mount Antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXW-2327-14
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
2300-2700
Band width（MHz） :
400
Gain（dBi） :
14
VSWR :
≤1.6
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

Ameison 2.3-2.7GHz Panel Antenna

Factory price

Superior performance

Mounting kits included

Waterproof heavy-duty ABS redome

2300-2700MHz Directional Wall Mount Antenna

AMXW-2327-14

Feature:

High gain,strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

2.3/2.7 GHz WLAN system

2.3/2.7 GHzISMband

public wireless hot spot coverage

WIFI system

AMXW-2327-14

Electrical Specifications

Frequency range(MHz)

2300-2700

Band width(MHz)

400

Gain(dBi)

14

Half-power beam width(°)

H:30 V:30

VSWR

≤1.6

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions-mm (Height/Width/Depth)

220*173*25

Antenna weight(kg)

0.45

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

Mounting hardware(mm))

￠35-￠50
