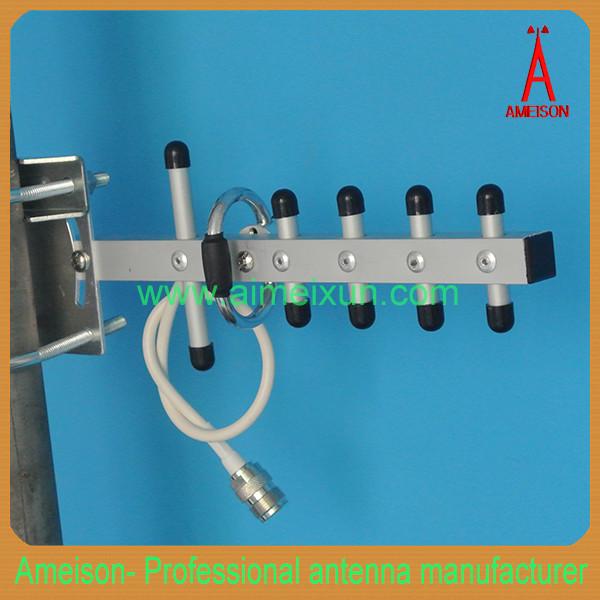

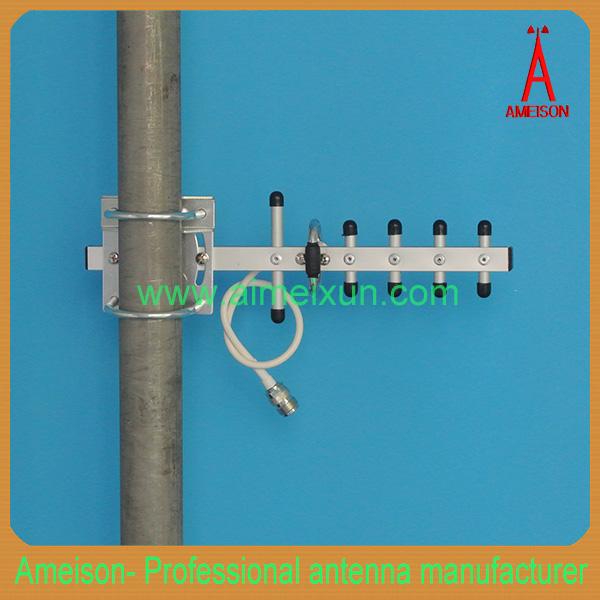

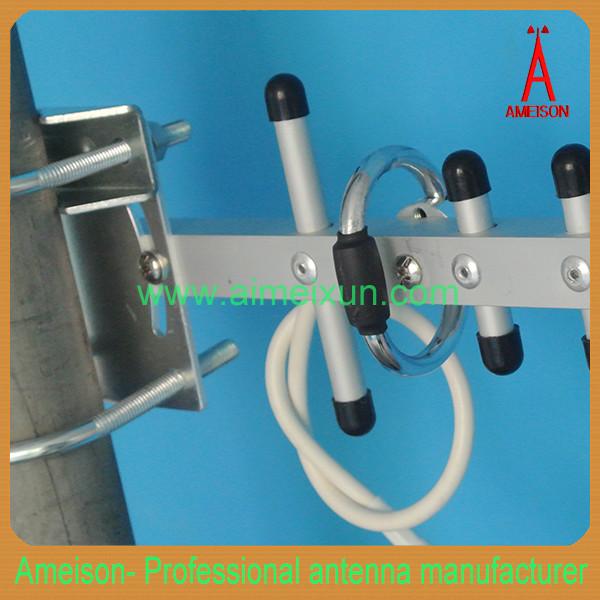

230MHz 10dBi High-Gain yagi antenna wireless antenna
230MHz 10dBi High-Gain yagi antenna wireless antenna
230MHz 10dBi High-Gain yagi antenna wireless antenna
230MHz 10dBi High-Gain yagi antenna wireless antenna
230MHz 10dBi High-Gain yagi antenna wireless antenna
230MHz 10dBi High-Gain yagi antenna wireless antenna
230MHz 10dBi High-Gain yagi antenna wireless antenna
230MHz 10dBi High-Gain yagi antenna wireless antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXY-230-10
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz) :
230±10
Bandwidth（MHz :
20
Gain（dBi） :
10
Element :
6
Polarization :
Horizontal or Vertical
Lightning protection :
DC Ground
Input connector type :
N female or others
Clamp :
U-shape
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

High gain;

Aluminum alloy framework;

Full day working;

Optimized dimension;

Vertical or Horizontal Mounting way;

Factory Price.

High-Gain yagi antenna with cable(10 dBi) specifications:

Feature:

High gain;

Extruded anodized Aluminum Alloy framework;

Full day working;

Optimized dimension;

Vertical or horizontal mounting way.

Application:

230MHz WLAN system, fixed wireless voice and data applications;

M2M communications (ATMs, financial data processing, telemetry etc);

Point-to-point, point-to-multipoint system, extending wireless data to weak signal areas (can extend connectivity range by factor of 3 or more);

Wireless bridging, client termination antenna, enables rural and remote wireless service provision.

AMXW-230-10

Electrical Specifications

Frequency range(MHz)

230±10

Bandwidth(MHz)

20

Gain(dBi)

10

Element

6

Half-power beam width(°)

H:42 V:38

Front-to-back ratio(dB)

≥16

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Horizontal or Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N female or others

Mechanical Specifications

Dimensions(mm)

1440*680*80

Cable length(m)

0.3

Antenna weight(kg)

0.55

Operating temperature(°c)

-40~60

Rated Wind Velocity(m/s)

60

Clamp

U-shape

Mounting hardware(mm)

Φ35~Φ50
