12V 55ah 120ah 180Ah Front Terminal Gel Battery UPS Telecom Electronics Deep Cycle
12V 55ah 120ah 180Ah Front Terminal Gel Battery UPS Telecom Electronics Deep Cycle
Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
FT12-180
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Type :
Gel Battery , Sealed Lead Acid Battery, VRLA Valve regulated lead acid battery, Deep Cycle Solar Gel Battery , Rechargeable Gel Battery ,Front Terminal Battery series,Sealed lead acid solar battery
Electrolyte :
acid
Voltage :
12V
Capacity :
180Ah
Dimension :
546*124*325*325mm
Weight :
53kg
Terminal :
T5
Color :
Black, Gray or OEM, Blue, Black High Reliability battery, Gray/Black/ Red
Usage :
UPS, Telecom, Solar, alarm system, Lighting
Sealed type :
Sealed
Material :
High Pure Lead, No recycled lead is used but at least 99.995% pure lead, ABS
Warranty :
3 years
Description

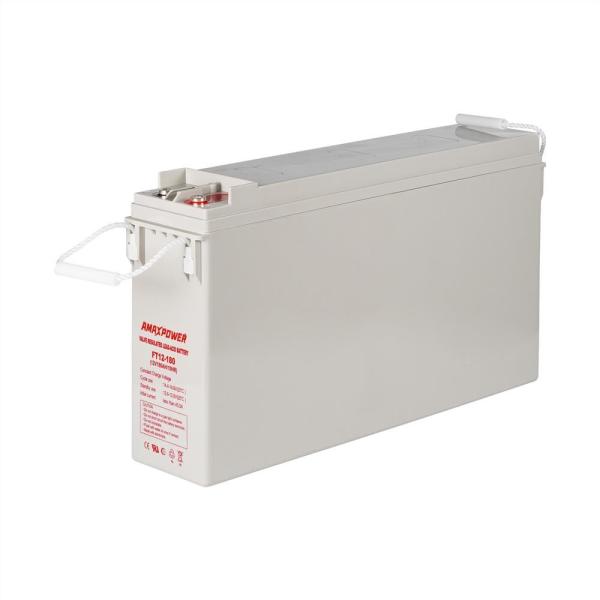

Amaxpower 12V 180Ah FT Series Front Terminal Deep Cycle Solar Gel Battery (12V 180Ah)

Amaxpower Battery 12V 55ah/120ah/150ah/180ah/200ah Front Access Terminal Slim Gel Battery for UPS Solar /Telecom System

Amaxpower Front Terminal lead acid battery is mainly used in the area of communication, which is novel in design, reasonable in structure and occupying the leading position in the same industry of the world.

AMaxpower FT Series Front Terminal Battery is specially designed for telecom industry use with 12 years design life in float service.by adopting a new AGM separator and centralized venting system,the battery can be installed in any position while maintaining high reliability .the dimensions of the FT series are designed for 19''and 23'' cabinet installation .it's suitable for UPS/EPS System.

FT series battery for telecom industry comes with slim shape design and front terminal connection. Thus, easy installation and maintenance can be ensured and space can be saved.

Front Terminal lead acid battery is mainly used in the area of communication, which is novel in design, reasonable in structure and occupying the leading position in the same industry of the world.

Amaxpower FT Series inculded Front Terminal AGM Battery ,Front Terminal Gel Battery , Front Terminal Solar Battery .

  1. This AGM battery for telecom industry comes with slim shape design and front terminal connection. Thus, easy installation and maintenance can be ensured and space can be saved.
  2. Radial grid design plus tight assembly technology assures this rechargeable battery prominent high rate discharge performance.
  3. Our front access battery features unique design which makes it sure that the electrolyte volume can be hardly reduced during use and addition of water is not necessary in its service life.

Specification

Nominal Voltage 12V (6 cells)
Nominal Capacity 180Ah@10 hour-rate
Dimension Length 546±1(21.5 inches)
Width 124±1(4.88 inches)
Height 325±2(12.79 inches)
Total Height 325±2(12.79 inches)
Weight Approx. 53kg (116.8lbs)
Reference Capacity (25°C/77°F ) 20 hour rate (9.35A) 187Ah
10 hour rate (18.0A) 155Ah
5 hour rate (32.4A) 162Ah
3 hour rate (48.0A) 144Ah
1 hour rate (117A) 117Ah
Max. Discharge Current (25°C/77°F) 1080A (5S)
Internal Resistance Full charged at 25℃(77°F): Approx. 5.0mΩ
Charge (Constant Voltage) (25°C/77°F)

Cycle Use

Voltage: 14.4-15.0V

Initial Charging Current: Less than 45A
Float Use Voltage: 13.6-13.8V
Operating Temperature Range Discharge -20~60°C
Charge 0~60°C
Storage -20~60°C
Nominal Operating Temperature Range 25°C ±3°C(77±3°F)

Capacity affected by Temperature

(20 hour rate)

 40°C(104°F) 102%
25°C(77°F) 100%
0°C(32°F) 85%
-15°C(5°F) 65%
Self-Discharge (25°C/77°F) After 3 month 91%
After 6 month 82%
After 12 month 64%
Container Material ABS Plastic

Applications

1. Suitable for 19inch and 23inch power cabinet.
2. Used in telecom system including exchange board, microwave station, mobile base station, data center, radio and broadcast station.
3. Great for power supply system of private network or LAN.
4. Used as signal system battery and emergency lighting system battery.
5. Perfect for EPS and UPS system.
6. Solar and wind system
