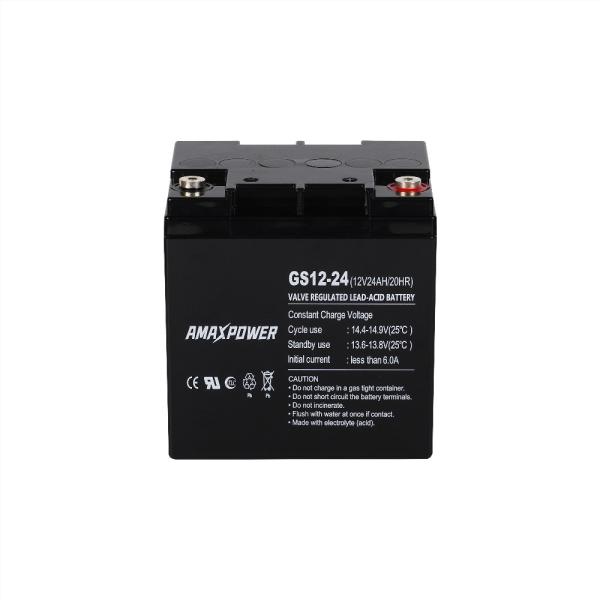

SMF Rechargeable 12V 24ah Vrla Battery Agm Energy Storage Battery 33ah 38ah
SMF Rechargeable 12V 24ah Vrla Battery Agm Energy Storage Battery 33ah 38ah
Specifications
Brand Name :
AMAXPOWER / OEM
Model Number :
GS12-24
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Type :
lead acid batteries
Electrolyte: :
Acid
Nominal Voltage: :
12V
Nominal Capacity :
24Ah
Dimension :
165*126*174*174mm
Weight :
7.6kg
Case :
ABS
Color :
Black
Battery Type :
lead acid battery, gel battery ,solar battery, deep cycle gel battery,vrla agm battery VRLA Battery, storage battery
Usage :
UPS, Electric Power, Lighting, Boat, EPS, Fire Alams, Security System
Application :
UPS, Electric Power, Lighting, Boat, EPS, Fire Alams, Security System
Description

Amaxpower UPS Battery 12V 24Ah Solar Deep Cycle Sealed Rechargeable Gel Battery for Energy Battery Storage (12V 24Ah)

12V 24ah SMF VRLA Gel Rechargeable Solar Energy Storage Battery VRLA Sealed Lead Acid Battery UPS Battery

Amaxpower 12V 24Ah Solar Deep Cycle AGM Battery UPS Battery

AMAXPOWER GS Series (VRLA Lead Acid Battery) is free maintenance lead acid batteries, are designed with AGM technology, high performance plates and electrolyte to gain extra power out for common power backup system applications widely used in the fields of UPS, Security and Emergency lighting system.

Applications of Sealed Lead Acid Batteries : (12v 24ah/33ah/38ah/40ah/45ah deep cycle battery solar energy storage battery.

Uninterruptible power supplies (UPS); Emergency Lighting Systems; Alarm Systems, Computers; Fire & security systems; Telecommunication systems; Inverter; Solar powered systems; Power Tools; Communication equipment; Electronic cash registers; Electronic test equipment; processor based office machines; Control equipment; Electric powered bicycle and wheelchairs; Geophysical equipment; Marine equipment; Medical equipment; Portable cine & video lights; Television& video recorders; Vending machines; Toys; Geophysical Equipment; Vending Machines ; Other standby or primary power supplies.

Specification

Nominal Voltage 12V (6 cells)
Nominal Capacity 24Ah@10 hour-rate
Dimension Length 165±2(6.49 inches)
Width 126±2(4.96 inches)
Height 174±2(6.85 inches)
Total Height 174±2(6.85 inches)
Weight Approx. 7.6kg (17.2lbs)
Reference Capacity (25°C/77°F ) 20 hour rate (1.3A) 26Ah
10 hour rate (2.4A) 24Ah
5 hour rate (4.32A) 21.6Ah
3 hour rate (6.4A) 19.2Ah
1 hour rate (15.6A) 15.6Ah
Max. Discharge Current (25°C/77°F) 156A (5S)
Internal Resistance Full charged at 25℃(77°F): Approx. 15mΩ
Charge (Constant Voltage) (25°C/77°F)

Cycle Use

Voltage: 14.4-15.0V

Initial Charging Current: Less than 7.2A
Float Use Voltage: 13.6-13.8V
Operating Temperature Range Discharge -20~50°C
Charge 0~50°C
Storage -20~50°C
Nominal Operating Temperature Range 25°C ±3°C(77±3°F)

Capacity affected by Temperature

(20 hour rate)

 40°C(104°F) 102%
25°C(77°F) 100%
0°C(32°F) 85%
-15°C(5°F) 65%
Self-Discharge (25°C/77°F) After 3 month 91%
After 6 month 82%
After 12 month 64%
Container Material ABS Plastic

Applications

-Electric Powered Vehicles -Golf Cars and Buggies

-Wheel Chairs -Power Tools

-Electric Powered Toys -Control System

-Medical Equipments -UPS Systems

-Solar and Wind -Emergency Systems
