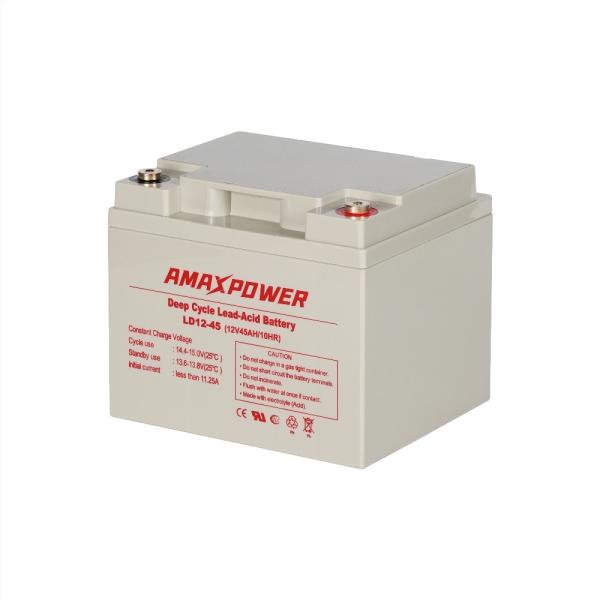

16V 26V 36V Vvrla Deep Cycle Solar Battery 12v 10ah Deep Cycle 45Ah
16V 26V 36V Vvrla Deep Cycle Solar Battery 12v 10ah Deep Cycle 45Ah
Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
LD12-45
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Type :
storage batteries, sealed lead acid batteries, gel batteries, solar batteries,deep cycle gel batteries, deep cycle solar batteries, vrla gel battery,vrla agm batteries
Electrolyte: :
lead acid battery
Nominal Voltage: :
12V
Nominal Capacity :
45Ah
Dimension :
197*166*171*171mm
Weight :
13.2kg
Terminal :
T2
Color :
Silver
Lifespan :
>15 Years
Warranty :
3 Years
Usage :
UPS, Telecom , Solar System , Communication ,power System
Application :
Electric Powered Vehicles ,golf Cars And Buggies, Power Tools, Wheel Chairs,BTS Stations, Control System, Medial Equipments, Ups Systems ,solar And Wind ,emergency Systems
Description

Amaxpower Solar Battery Gel 12V 40ah/45ah/50ah/55ah AGM VRLA Lead Acid Solar Battery for Solar power system (12V 45Ah)

China Factory OEM 12V/6V/36V/48V 100Ah/10ah/200ah /120ah VRLA Sealed lead acid Deep Cycle AGM Solar Battery

Amaxpower LD series deep cycle AGM battery is specially valve regulated sealed free maintenance deep cycle AGM battery with 12-15 years design life in float service, perfect choice for deep cycle use, 30% longer life than regular AGM battery, reliable for backup use and solar cycle use.

LD Series High-Temp Long life deep cycle AGM Battery for UPS System /Power Supply /Solar Power /UPS Backup system

The primary material is gas silicon dioxide from import.

*Fully sealed:with cover and pole double seal design to prevent leakage of electrolysis, andthe
reliability of safe-vale prevent oxygen and dust from outside enter into the battery.
*Free maintenance: with the performance of water reproduce and high sealed
reactionefficiency, it no needs any compensation of and water during use.
*Safety: without acid leaked, reliable gas pressure venting system and equipped with anti-explosion
device, which make the battery safer during use.
*Long cycle life: anti-erosion pb-ca multi-alloy, ABS plastic material and high sealedreaction
efficiency assure the resident battery's service life.
*Temperature adaptability: the battery can be used safely during -25 -50ºC.
*Convenient and safety: the battery has charged with load before leaving the factory, withoutfree
electrolysis, it allowed to be placed breadthways and transported by sea and railwayas
nonhazardous material.
*Economical: with high performance,long service life and lowest maintenance cost to
offerconsumers the most economical products.

Specification

Nominal Voltage 12V (6 cells)
Nominal Capacity 45Ah@10 hour-rate
Dimension Length 197±2(7.73inches)
Width 166±2(6.54 inches)
Height 171±2(6.73 inches)
Total Height 171±2(6.73 inches)
Weight Approx. 13.2kg (28.9lbs)
Reference Capacity (25°C/77°F ) 20 hour rate (2.2A) 46Ah
10 hour rate (4.0A) 40Ah
5 hour rate (7.2A) 36Ah
3 hour rate (10.7A) 32Ah
1 hour rate (26A) 26Ah
Max. Discharge Current (25°C/77°F) 260A (5S)
Internal Resistance Full charged at 25℃(77°F): Approx. 12mΩ
Charge (Constant Voltage) (25°C/77°F)

Cycle Use

Voltage: 14.4-15.0V

Initial Charging Current: Less than 12A
Float Use Voltage: 13.6-13.8V
Operating Temperature Range Discharge -15~45°C
Charge 0~45°C
Storage -15~45°C
Nominal Operating Temperature Range 25°C ±3°C(77±3°F)

Capacity affected by Temperature

(20 hour rate)

 40°C(104°F) 102%
25°C(77°F) 100%
0°C(32°F) 85%
-15°C(5°F) 65%
Self-Discharge (25°C/77°F) After 3 month 91%
After 6 month 82%
After 12 month 64%
Container Material ABS Plastic

Applications

-Electric Powered Vehicles -Golf Cars and Buggies

-Wheel Chairs -Power Tools

-BTS Stations -Control System

-Medical Equipments -UPS Systems

-Solar and Wind -Emergency Systems
