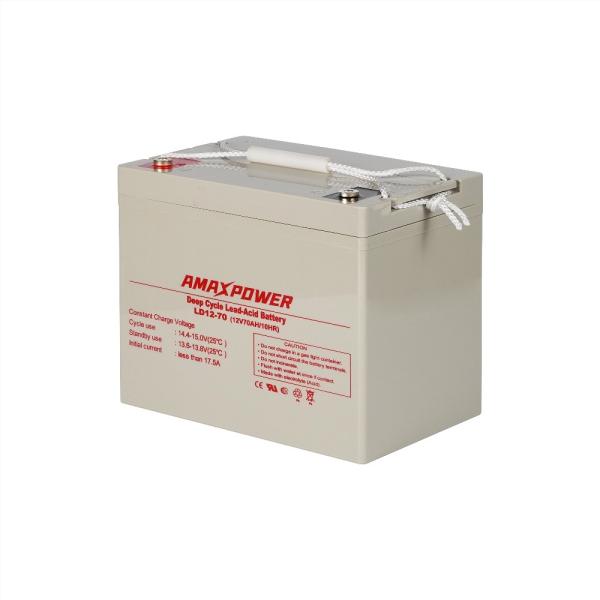

Amaxpower UPS Deep Cycle AGM Battery Sealed Lead Acid VRLA 12V 70A
Amaxpower UPS Deep Cycle AGM Battery Sealed Lead Acid VRLA 12V 70A
Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
LD12-70
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Type :
Gel Battery, Solar Battery,agm Battery, Deep Cycle Gel Battery, Deep Cycle Solar Battery, Sealed Lead Acid Battery,vrla Agm Battery,vrla Gel Battery, Storage Battery
Electrolyte: :
acid
Nominal Voltage: :
12V
Nominal Capacity :
70Ah
Dimension :
260*169*211*215mm
Weight :
20.5kg
Terminal :
T3
Color :
Silver
Lifespan :
>15 Years
Warranty :
3 Years
Usage :
UPS, Electric Power, Lighting, Electric Bicycle, Boat, UPS, Marine, Electric, Power
Application :
UPS, Telecom, Solar And Wind System,Electric Power,Lighting,Communication
Description

Amaxpower UPS Batteries Deep Cycle AGM VRLA Solar Battery (12V 70Ah)

Amaxpower LD Series 12V70Ah UPS Backup batteries AGM VRLA Sealed Lead acid Battery Deep Cycle Solar Battery Solar Panel

Amaxpower LD series deep cycle AGM battery is specially valve regulated sealed free maintenance deep cycle AGM battery with 12-15 years design life in float service, perfect choice for deep cycle use, 30% longer life than regular AGM battery, reliable for backup use and solar cycle use.

LD Series High-Temp Long life deep cycle AGM Battery for UPS System /Power Supply /Solar Power /UPS Backup system

Main Features:

·For high temperature applications
·Long design life
·Low self-discharge rate
·Good high rate discharge performance
·Wide operation temperature range

Applications of Deep Cycle AGM Batteries :

Electric Powered Vehicles, Pumps, Golf Cars and Buggies, Tour bus, Sweeper, Floor cleaning machines, Wheel Chairs, Power Tools, Electric Powered Toys, Control System, Medical Equipments, UPS and Inverter systems, Solar and Wind, Servers, Telecom, Emergency and Security systems, Forklift, Marine and RV, Boat and so on.

Specification

Nominal Voltage 12V (6 cells)
Nominal Capacity 70Ah@10 hour-rate
Dimension Length 260±2(10.2 inches)
Width 169±2(6.65 inches)
Height 211±2(8.31 inches)
Total Height 215±2(8.47 inches)
Weight Approx. 20.5kg (45.2lbs)
Reference Capacity (25°C/77°F ) 20 hour rate (3.7A) 74Ah
10 hour rate (7.0A) 70Ah
5 hour rate (12.6A) 63Ah
3 hour rate (18.7A) 56Ah
1 hour rate (45A) 45Ah
Max. Discharge Current (25°C/77°F) 455A (5S)
Internal Resistance Full charged at 25℃(77°F): Approx. 7.0mΩ
Charge (Constant Voltage) (25°C/77°F)

Cycle Use

Voltage: 14.4-15.0V

Initial Charging Current: Less than 17.5A
Float Use Voltage: 13.6-13.8V
Operating Temperature Range Discharge -15~45°C
Charge 0~45°C
Storage -15~45°C
Nominal Operating Temperature Range 25°C ±3°C(77±3°F)

Capacity affected by Temperature

(20 hour rate)

 40°C(104°F) 102%
25°C(77°F) 100%
0°C(32°F) 85%
-15°C(5°F) 65%
Self-Discharge (25°C/77°F) After 3 month 91%
After 6 month 82%
After 12 month 64%
Container Material ABS Plastic

Applications

-Electric Powered Vehicles -Golf Cars and Buggies

-Wheel Chairs -Power Tools

-BTS Stations -Control System

-Medical Equipments -UPS Systems

-Solar and Wind -Emergency Systems
