Lithium 12v 100ah Lifepo4 Deep Cycle Gel Battery Solar Power Energy Amaxpower
Lithium 12v 100ah Lifepo4 Deep Cycle Gel Battery Solar Power Energy Amaxpower
Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
HD12-100
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Type :
Lead Acid Batteries
Electrolyte: :
Gel
Nominal Voltage: :
12V
Nominal Capacity :
100Ah
Dimension :
331*173*213*233mm
Weight :
27.5kg
Terminal :
T3
Color :
Grey, Black, White, Red, White(can be customized)
Lifespan :
>15 Years
Warranty :
3 Years
Usage :
UPS, Electric Power, Lighting, Electric Bicycle, Boat, Solar, Wind, Motive, Golf Cart
Application :
UPS, Electric Power, Lighting, Electric Bicycle, Boat, Solar, Wind, Motive, Golf Cart
Battery Type :
Solar Battery,Gel Battery,Sealed Lead Acid Battery,Deep Cycle Gel Battery,UPS Battery,Storage Battery
Maintenance :
Free
Product Name :
12v 100ah gel battery,deep cycle 12v 100ah,12v 100ah solar battery
Description

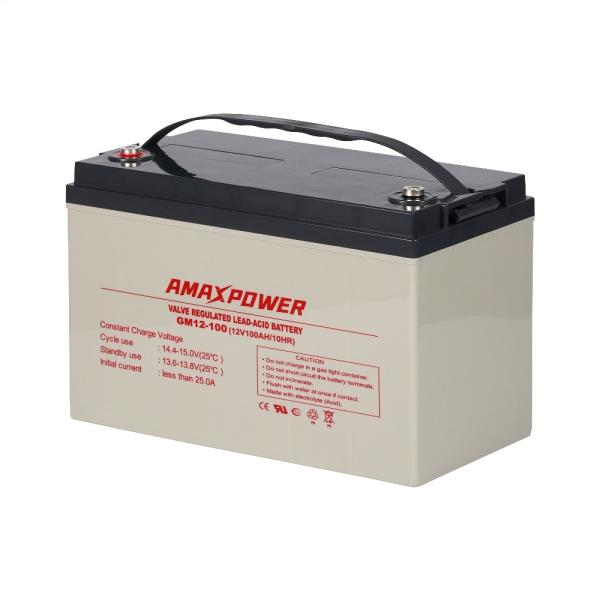

Amaxpower 12v 100Ah HD Series Deep Cycle Gel Solar Battery ( 12V 100Ah)

Amaxpower lithium battery 12v 100ah lifepo4 battery deep cycle gel solar lead acid battery for solar power energy system

Since 2005, AMAXPOWER start the research and produce sealed free maintenance AGM and GEL storage batteries. Our batteries are always in the process of innovation according to market and environment: AGM battery→GEL battery→High Temperature Long Life Deep Cycle GEL battery.

Technical Features
• AGM-Acid Valve-Regulated Lead Acid battery
• Top terminal design
• Flexible design for multiple installation space
• Connectors with integrated insulation cover
• Strong handles for easy operation for medium capacity types
• Patent Terminal sealing & front access
• Self-regulating pressure relief valve with flame arrester
• Comply with IEC, ISO, CE, BSCI standards, etc.
• Design life at 25°C (77°F): 15~20 years

Specification

Nominal Voltage 12V (6 cells)
Nominal Capacity 100Ah@10 hour-rate
Dimension Length 331±2(13.03 inches)
Width 173±2(6.81 inches)
Height 213±2(8.39 inches)
Total Height 233±2(9.17 inches)
Weight Approx. 27.5kg (60.6lbs)
Reference Capacity (25°C/77°F ) 20 hour rate (5.3A) 105Ah
10 hour rate (10A) 100Ah
5 hour rate (18A) 90Ah
3 hour rate (26.7A) 80Ah
1 hour rate (65A) 65Ah
Max. Discharge Current (25°C/77°F) 600A (5S)
Internal Resistance Full charged at 25℃(77°F): Approx. 5.5mΩ
Charge (Constant Voltage) (25°C/77°F)

Cycle Use

Voltage: 14.4-15.0V

Initial Charging Current: Less than 25A
Float Use Voltage: 13.6-13.8V
Operating Temperature Range Discharge -20~50°C
Charge 0~50°C
Storage -20~50°C
Nominal Operating Temperature Range 25°C ±3°C(77±3°F)

Capacity affected by Temperature

(20 hour rate)

 40°C(104°F) 102%
25°C(77°F) 100%
0°C(32°F) 85%
-15°C(5°F) 65%
Self-Discharge (25°C/77°F) After 3 month 91%
After 6 month 82%
After 12 month 64%
Container Material ABS Plastic

Applications

-Solar energy system -Aerial work platform

-Floor cleaning machine -Recreational vehicles

-Golf cart and Buggies -Control System

-Power Tools -UPS Systems

-Solar and Wind -Emergency Systems
