Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
CG2-200
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Usage :
UPS, Electric Power, Lighting, Boat, Solar, Telecom, Wind, Marine, Communication
Battery Type :
AGM Battery,VRLA Valve Regulated AGM Battery,Sealed Lead acid battery, gel battery ,solar battery, deep cycle gel battery, deep cycle solar battery
Electrolyte :
acid
Nominal Voltage :
2V
Capacity :
200Ah
Dimension: :
172*111*329*365mm
Weight :
12kg
Terminal :
T5
Color :
Black, Gray Or OEM, Blue, Black High Reliability Battery, Gray/Black/ Red
Sealed Type :
Sealed
Maintenance Type :
Free
Application :
UPS, Solar System, Telecom, Communication, Electric Power
OEM Order :
Acceptable, Available High Reliability Battery Manufacturering
Material :
High Pure Lead, No Recycled Lead Is Used But At Least 99.995% Pure Lead, ABS
Warranty :
3years
Description

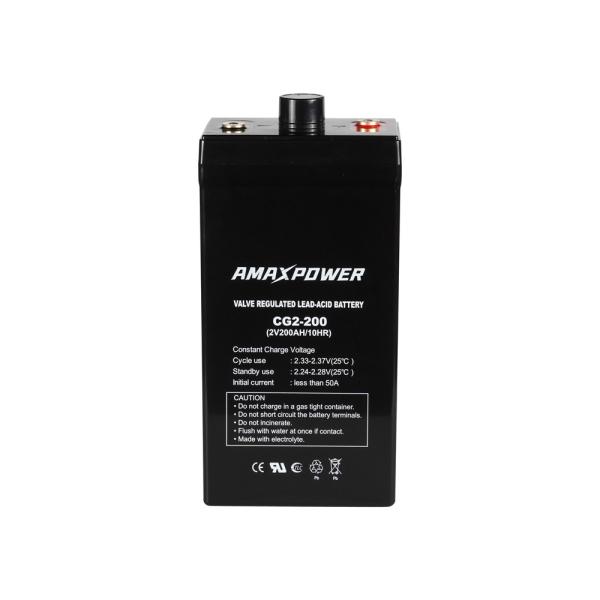

China 2V Industry AGM Battery Deep Cycle Sealed Lead Acid Storage Battery (2V 200Ah)

Amaxpower 2V 200ah Long life Industry AGM Battery Deep Cyce Gel Solar Battery for UPS Power and Electric Power System

CG series 2V deep cycle AGM battery adopts unique grid structure, special super corrosion-resistant alloy and unique active material formula, which can improve the efficiency, so CG series battery recover performance is excellent after deep discharge even discharge to empty, also with the advantage of high durability, enough capacity and long cycle life.

With a gas recombination efficiency of 99%, such batteries are completely maintenance free operation, non-spillable, no gassing, no need for replenishment. Items can be used at vertical or horizontal orientation.

CG series battery adopts unique radial grid structure and super thick lead plates, in order to extend battery cycle life. Enhancing lead plates thickness ensure that battery can realize self-protect of over discharge so can avoid battery over discharge.

It adopts battery formation innovative technology, so can reduce of the possibility of lead plates secondary pollution and improve the battery consistency.

AMAXPOWER CG Series is specially valve regulated sealed free maintenance 2V deep cycle AGM battery with 12-15 years design life in float service. As the most reliable and high quality battery system in the industry and perfect choice for deep cycle use, equal to LD12V series deep cycle AGM battery, reliable for backup use and solar cycle use.

1. Longer life and higher stability for deep cycle use.

2.Use super-C additives lead plates for deep discharge, and recover ability after deep discharge.

3.High efficiency discharge performance; Low self-discharge rate; Safe and eco-friendly.

4.High purity lead-tin alloy, reduce battery self-discharge rate and increase battery service life.

5.Low Self Discharge For Lead Acid Battery.

6.Heavy Duty Grids For Sealed AGM Battery.

7.Maintenance-Free Operation For VRLA battery.

2V Industry AGM Battery : 2V Gel battery and 2V AGM Battery

Specification

Rate Voltage 2V(Single cell)
Nominal Capacity 200Ah @10 hour-rate
Dimension Length 172±2mm (6.80 inches)
Width 111±2mm (4.37 inches)
Container Height 329±2mm (12.96 inches)
Total Height 365±2mm (14.37 inches)
Weight Approx. 12kg (26.5lbs)
Container Material ABS
Reference Capacity (25°C) 20hr (10.5A) 210Ah
10hr (20A) 200Ah
5hr (36A) 180Ah
3hr (53.3A) 160Ah
1hr (130A) 130Ah
Max. Discharge Current 1200A (5S)
Internal Resistance (25°C) Approx. 0.9mΩ
Cycle Use Voltage

Initial Charging Current: Less than 50A

Voltage: 2.33-2.37V @ 25°C (77°F)

Float Charging Voltage 2.24-2.28V @ 25°C (77°F)
Operating Temperature Range Discharge -20~60°C
Charge -10~60°C
Storage -20~60°C
Nominal Operating Temperature Range 25°C±3°C (77±5°F)
Capacity affected by Temperature (20 hour rate) 40°C (104°F) 102%
25°C (77°F) 100%
0°C (32°F) 85%
-15°C (5°F) 65%
Self-Discharge Less than 3% at 25°C (77°F) per month

Applications

Industry use, Communication equipment, Telecommunication control equipment; Emergency systems; Electric power systems; Golf carts; Caravan; Power station; Nuclear power station; Solar power and wind power systems; Load leveling and storage equipment; Marine equipment; Power generation plants; Alarm systems, UPS and inverters; Medical equipment; Fire and security systems, Control equipment; Stand-by electric power.
