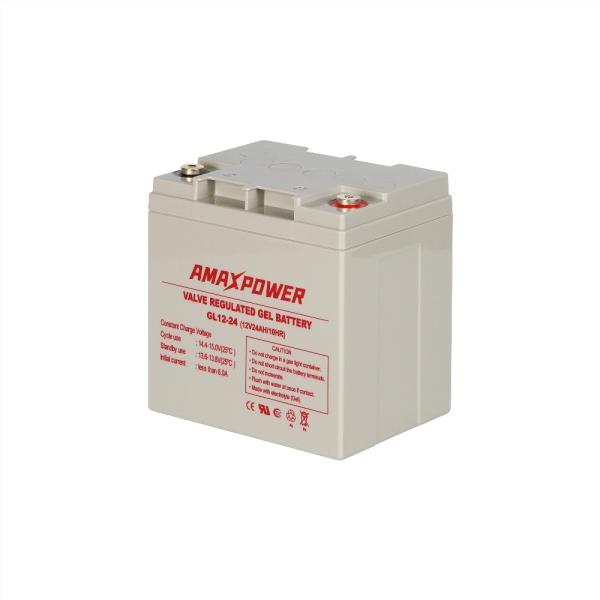

33Ah 40ah Deep Cycle Solar Panel Battery 12v 24ah Rechargeable SLA
33Ah 40ah Deep Cycle Solar Panel Battery 12v 24ah Rechargeable SLA
Specifications
Brand Name :
AMAXPOWER / OEM
Model Number :
GL12-24
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Type :
Gel Battery
Electrolyte :
Gel
Nominal Voltage :
12V
Nominal Capacity :
24Ah
Dimension :
165*126*174*174mm
Weight :
7.6kg
Case :
ABS
Color :
Gray
Usage :
Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat, Solar and Wind UPS System
Shape: :
Square Battery
Application :
Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat
Description

China Factory Best Price 12V 24Ah/33Ah/38Ah/40Ah/45Ah Gel Solar Battery Sealed Lead Acid Battery (12V 24Ah)

Amaxpower Battery Solar Battery Gel Battery 12V 24ah/33ah/38ah/40ah/45ah Lead Acid Storage Battery

AMAXPOWER standard VRLA GEL battery is designed for frequent cyclic charge and discharge applications under extreme environments. By combining the newly developed Nano Silicone Gel electrolyte with high density paste, the Solar range offers high recharge efficiency at very low charge current. The acid stratification is highly reduced by adding Nano Gel.

GL 12V Series Sealed Free Maintenance VRLA GEL battery, own 12-15years long life, your best partner for solar market and hot area.

AMaxpower GL series of 12V sealed free maintenance VRLA GEL batteries are recognized as the most reliable and high quality battery system in the industry. They are designed with advanced patented GEL technology, Long service life designed with 12-15 years, 50% DOD 1200 Cycles, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Eurobat Guide.

Specification

Nominal Voltage 12V (6 cells)
Nominal Capacity 24Ah@10 hour-rate
Dimension Length 165±2(6.49 inches)
Width 126±2(4.96 inches)
Height 174±2(6.85 inches)
Total Height 174±2(6.85 inches)
Weight Approx. 7.6kg (17.2lbs)
Reference Capacity (25°C/77°F ) 20 hour rate (1.3A) 26Ah
10 hour rate (2.4A) 24Ah
5 hour rate (4.32A) 21.6Ah
3 hour rate (6.4A) 19.2Ah
1 hour rate (15.6A) 15.6Ah
Max. Discharge Current (25°C/77°F) 156A (5S)
Internal Resistance Full charged at 25℃(77°F): Approx. 15mΩ
Charge (Constant Voltage) (25°C/77°F)

Cycle Use

Voltage: 14.4-15.0V

Initial Charging Current: Less than 7.2A
Float Use Voltage: 13.6-13.8V
Operating Temperature Range Discharge -20~50°C
Charge 0~50°C
Storage -20~50°C
Nominal Operating Temperature Range 25°C ±3°C(77±3°F)

Capacity affected by Temperature

(20 hour rate)

 40°C(104°F) 102%
25°C(77°F) 100%
0°C(32°F) 85%
-15°C(5°F) 65%
Self-Discharge (25°C/77°F) After 3 month 91%
After 6 month 82%
After 12 month 64%
Container Material ABS Plastic

Applications

-Electric Powered Vehicles -Golf Cars and Buggies

-Wheel Chairs -Power Tools

-Electric Powered Toys -Control System

-Medical Equipments -UPS Systems

-Solar and Wind -Emergency Systems
