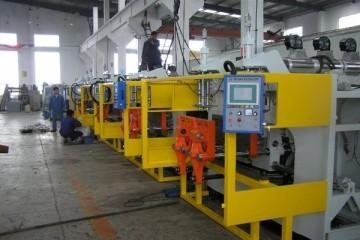

double station blow molding machine AMB70D
double station blow molding machine AMB70D
Specifications
Place of Origin :
China
Brand Name :
Aman
Model Number :
AMB70D
Certification :
CE
Description

double station blow molding machine

Parameters
Specifications AM70series
Material PE,PP….
Max container capacity 3--5--10L
Number of die 1set
Output(dry Cycle) 1000pc/hr
Machine Dimension(L×W×H) 3.5x2.2x2.8M
Total weigh 7.1ton
Clamping Unit AM70series
Clamping force 105KN
Platen opening stroke 200-550mm
Platen size 500x550mm
Max mould size(W×H) 550x500mm
Mould thickness 210-300mm
Power AM70series
Max drive 27.5KW
Total power 48.5KW
Fan power for screw 0.54KW
Air pressure 0.7Mpa
Air consumption 0.6m³/min
Average energy consumption 18.5KW

1.there will be more space on the work table , and then it's easy to install the molds. the core rod's gyration semidiameter is more than before ,now the products' height is increased to 175mm.

2.high-pressure hydraulic clamping device use accumulator to hold presure ,to improve productivity and save energy.

3.the work table is cast by ductile cast iron ,and it is more thick ,more strong and more steady

4.figure is be improved ,it will hold much less space, and looks nice.
