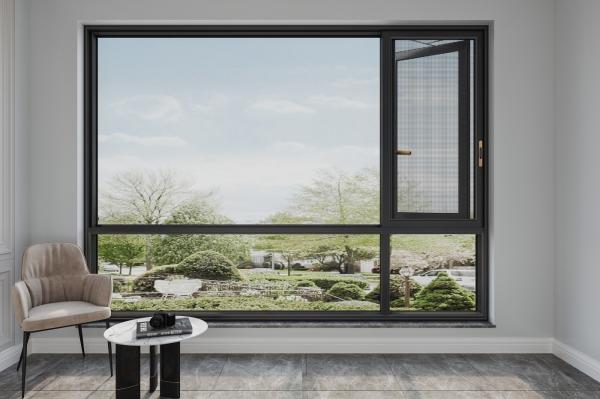

Thermal Break Bridge Aluminium Casement Window Large Frame
Thermal Break Bridge Aluminium Casement Window Large Frame
Thermal Break Bridge Aluminium Casement Window Large Frame
Thermal Break Bridge Aluminium Casement Window Large Frame
Specifications
Brand Name :
KLUK
Model Number :
KHD65
Certification :
ISO9001:2021;ISO14001:2021
Place of Origin :
GUANGDONG,CHINA
MOQ :
500 square meters
Price :
Negotiation
Payment Terms :
T/T, L/C, D/P
Supply Ability :
3000 square maters
Delivery Time :
25-30 days
Packaging Details :
Pearl cotton, foam cotton, wooden box,etc
Materials :
Aluminum Alloy 6063 Frame
Glass :
9+15A+9mm tempered glass
Thickness :
1.0-1.5mm Aluminium Casement Windows
Color :
wood,etc
Hardware :
handle,lock,fastener,windproof,hinge,etc
Feature :
air permeability,Security,thermal insulation,easy to clean,etc
Type :
Casement/Swing Windows
Description

Thermal Break Bridge Aluminum Large Frame 70 Series Doors And Windows

Product Specification:

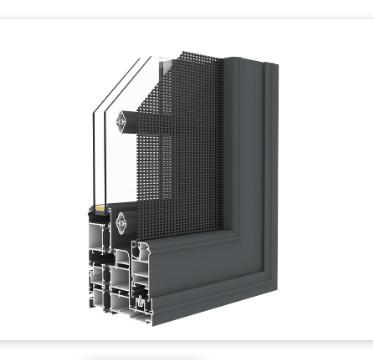

Easy window net sub aluminum bridge broken aluminum frame 70 series parameters:

Profile brand: Asia Aluminum - South Asia brand

Aluminum wall thickness of surrounding frame: 1.6mm (large frame 70 series and small 70 window sash 1.4)

Aluminum quality: aluminum 6063-T5 high-precision primary aluminum ingot

Factory color: the natural color is white and light champagne (thousands of colors can be sprayed according to customer needs)

Opening method: it is recommended to open inside and reverse inside (horizontal opening and upper suspension)

Nylon strip: PA66GF25 nylon strip

Width of thermal insulation strip: 24.8mm nylon strip is standard configuration, and the thermal insulation strip is PA66 nylon strip plus 25% glass fiber material

Frame material: aluminum bridge broken aluminum large frame 70 series, the width of the large side of the frame is 7 cm, and the small side of the frame is 4.7 cm

Glass configuration: hollow float glass (5+27a+5) (upgradable tempered glass or three-layer glass)

(standard double glass, hollow laminated glass for sound insulation, three-layer glass for heat insulation, and high permeability Low-E glass for heat insulation)

Corner material: all aluminum corner, stainless steel corner piece

Sealing strip: EPDM automobile grade rubber strip

Glass adhesive: Germany Wacker OS environmental neutral silicone weather resistant adhesive (optional)

Hardware: it can be equipped with German siglia hardware, German lattice hardware and German hobo handle

Screen window: optional 304 stainless steel independent large frame with removable diamond mesh inside

Performance Parameter National Standard
Wind Load Resistance 4.5<=p3>=5.0 level 8
Air Tightness q1<=0.5 level 8
Water Tightness 250<=△p>=350 level 6
Thermal Insulation 2.5<=k<=3.0 level 5
Sound Insulation 30=<Rw+Ctr<35 level 5

Thermal Break Bridge Aluminium Casement Window Large Frame

Name/Model: Thermal Break Bridge Aluminum Large Frame 70 Series Doors And Windows
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color
Hardware :
 China Top brand: MACO
Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)
