Interior Opening And Inverted Floor To Ceiling Windows 1.0mm Thickness
Interior Opening And Inverted Floor To Ceiling Windows 1.0mm Thickness
Interior Opening And Inverted Floor To Ceiling Windows 1.0mm Thickness
Interior Opening And Inverted Floor To Ceiling Windows 1.0mm Thickness
Specifications
Brand Name :
KLUK
Model Number :
KHD65
Certification :
ISO9001:2021;ISO14001:2021
Place of Origin :
GUANGDONG,CHINA
MOQ :
500 square meters
Price :
Negotiation
Payment Terms :
T/T, L/C, D/P
Supply Ability :
3000 square maters
Delivery Time :
25-30 days
Packaging Details :
Pearl cotton, foam cotton, wooden box,etc
Materials :
Aluminum Alloy 6063 Frame
Glass :
9+15A+9mm tempered glass
Thickness :
1.0-1.5mm Aluminium Casement Windows
Color :
wood,etc
Hardware :
handle,lock,fastener,windproof,hinge,etc
Feature :
air permeability,Security,thermal insulation,easy to clean,etc
Type :
Casement/Swing Windows
Description

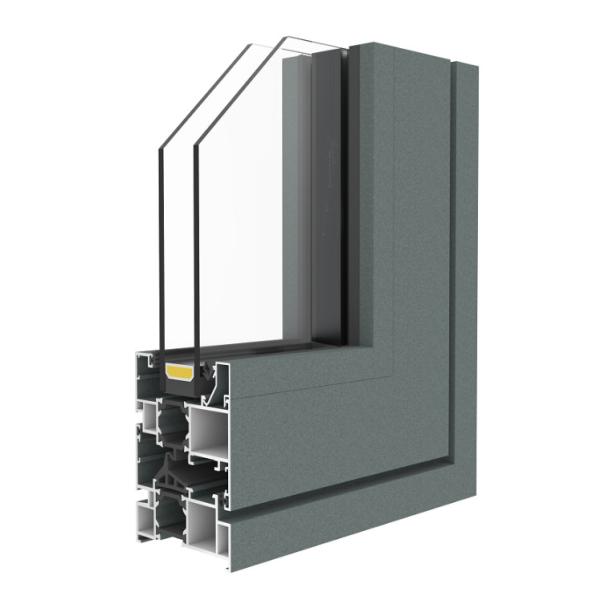

72 Series Interior Opening And Inverted Floor To Ceiling Windows

Product Specification:

1. The appearance is simple, the indoor and outdoor frames and fans are flush, and the anti-collision fillet design is added to the indoor opening fan to eliminate the risk of collision;

2.24mm PA66 nylon thermal insulation strip, with outstanding thermal insulation performance;

3. Hidden drainage in steps can increase the efficiency of drainage and prevent water from pouring back into the room;

4. Adopt the principle of equal pressure drainage and rain curtain, and design three automobile grade sealant strips to ensure the watertightness and air tightness of the whole window;

5. It can be opened in a big way, with a maximum size of 800 (width) x2200 (height) mm, and a glass guard is added on the outdoor side

Column, more secure;

6. Standard 5mm+27a+5mm large insulating glass, heat insulation.Excellent sound insulation and heat preservation performance.

Performance Parameter National Standard
Wind Load Resistance 4.5<=p3>=5.0 level 8
Air Tightness q1<=0.5 level 8
Water Tightness 250<=△p>=350 level 6
Thermal Insulation 2.5<=k<=3.0 level 5
Sound Insulation 30=<Rw+Ctr<35 level 5

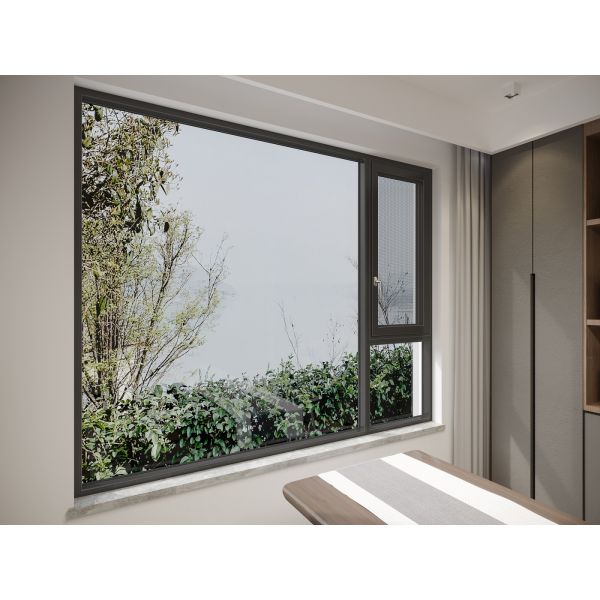

Interior Opening And Inverted Floor To Ceiling Windows 1.0mm Thickness

Name/Model: 72 Series Interior Opening And Inverted Floor To Ceiling Windows
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color
Hardware :
 China Top brand: MACO
Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)

Interior Opening And Inverted Floor To Ceiling Windows 1.0mm Thickness
