Fireproof Inswing Outswing Aluminum Swing Doors Anodized Finish For Restaurant
Fireproof Inswing Outswing Aluminum Swing Doors Anodized Finish For Restaurant
Fireproof Inswing Outswing Aluminum Swing Doors Anodized Finish For Restaurant
Fireproof Inswing Outswing Aluminum Swing Doors Anodized Finish For Restaurant
Specifications
Brand Name :
KLUK
Model Number :
KSG 9
Certification :
ISO9001:2016; ISO14001:2016
Place of Origin :
GUANGDONG, CHINA
MOQ :
One Container
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
Monthly Productivity 30,000 m²
Delivery Time :
25-45 days
Packaging Details :
Pearl cotton, Foam cotton, Wooden box
DOOR TYPE :
Aluminum Clad Solid Core Traffic Door
DOOR SIZE :
Available to fit openings up to 96" x 96"
CONSTRUCTION :
Sustainable, moisture resistant wood core and clad full height on both sides with aluminum alloy and 48" high impact plates
HINGE :
Gravity Hinge System
WINDOW :
Glass / Standard scratch resistant 9" x 14" acrylic, set in rubber molding
DOOR THICKNESS :
1"
CORE :
.75" thick sustainable, moisture resistant, wood core
BACK CHANNEL :
Stainless Steel Back Channel
GASKETING :
Optional
FINISH :
Tempered Aluminum Alloy with Satin Anodized Finish with high stainless steel base plates (both sides)
IMPACT PLATES :
Standard 48" Stainless Steel Impact Plates
OPTIONS :

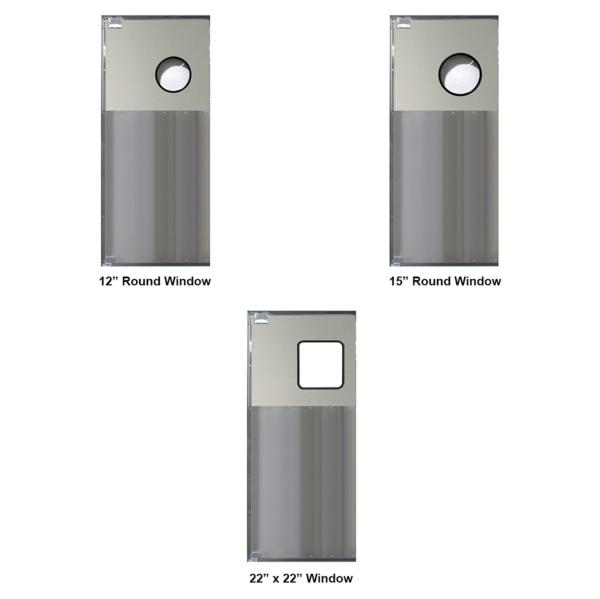

Various Window Configurations (9" x 14", 12", 15", 22" x 22"), Full Perimeter Gasketing
COLORS :
Variety of colors
TRAFFIC :
Personnel and Light Cart Traffic
APPLICATIONS :
Restaurants, Retail, Commercial, Institutional
MODEL :
KSG 9
Description

Commercial - Aluminum Swing Door - Restaurant - Inswing/Outswing

Advantage:

  • Hidden frame structure design, open and fixed appearance is unified, the opening part of the overall view only 62mm, minimalist, high-end, with ultra-high cost performance;
  • Professional corner code connection reasonable glue injection process, no lack of glue will not be redundant, improve the corner strength, water tightness and air tightness; Provide humanized selection of Angle of impact group and field group Angle code;
  • Unique hardware slot internal installation structure and professional drainage structure: safety, theft prevention and rapid drainage;
  • Patented products.

Structure and process characteristics:

  • Good fire performance:
    The fireproof performance of the PVC model steel window of incombustibility thinks to the wood window of combustible is better, but compare with the aluminium alloy window of non-combustibility is bad;

  • Lightning protection and anti-static strength:
    Aluminum alloy is a good conductor of electricity, take effective grounding measures, can be used as lightning protection facilities, and can prevent electrostatic phenomenon;

Cabability Parameter

Standard Grade

GB/T7106 GB/T15227
Wind Load Resitance p3 < 5.0 LV 9
Air Tightness q1 ≤ 0.5 LV 8
Water Tightness △P ≥ 700 LV 6
Thermal Insulation 2.5＞k ≥ 2.0 LV 5
Sound Insulation 35 ≤ Rw+Cr ＜35 LV 4

Fireproof Inswing Outswing Aluminum Swing Doors Anodized Finish For Restaurant

Name/Model:

Commercial - Aluminum Swing Door - Restaurant - Inswing/Outswing
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Type: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color
Hardware :
 China Top brand: MACO
Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)

Fireproof Inswing Outswing Aluminum Swing Doors Anodized Finish For Restaurant

Fireproof Inswing Outswing Aluminum Swing Doors Anodized Finish For Restaurant

Fireproof Inswing Outswing Aluminum Swing Doors Anodized Finish For Restaurant

Fireproof Inswing Outswing Aluminum Swing Doors Anodized Finish For Restaurant

Fireproof Inswing Outswing Aluminum Swing Doors Anodized Finish For Restaurant
