Horizontal PVDF Aluminum Sun Shade Louvers Adjustable Energy Efficient
Horizontal PVDF Aluminum Sun Shade Louvers Adjustable Energy Efficient
Horizontal PVDF Aluminum Sun Shade Louvers Adjustable Energy Efficient
Horizontal PVDF Aluminum Sun Shade Louvers Adjustable Energy Efficient
Specifications
Brand Name :
KLUK
Model Number :
SSL 1
Certification :
ISO9001:2016; ISO14001:2016
Place of Origin :
GUANGDONG, CHINA
MOQ :
Ask For Details
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
25-35 days
Packaging Details :
Pearl cotton, Foam cotton, Wooden box
Supply Ability :
Monthly Productivity 5,000 tons
MODEL :
SSL 1
MATERIALS :
Extruded Aluminum (6063-T5)
BLADE ANGLES :
Adjustable
TYPE :
ALL TYPE
OPENING PATTERN :
VERTICAL / HORIZONTAL
THICKNESS :
As per client's request
SURFACE FINISH :
Anodized, PVDF
APPLICATION :
Facade/Curtain Wall,Aluminum Sun Louver, Sun shade,Window Shutter
Description

Customized - Aluminum Sun Shade Louvers - Adjustable - All weather

Advantage:

  • Shade and light control
  • Energy efficiency
  • Maximum natural air flow and ventilation
  • Weather protection from water and debris during rain, wind and storms

​

Product Description:

  • Products are extruded aluminum, mainly in elliptical shape and available in width 100mm, 120mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm,
  • They Adjust smoothly and regulate the inside day-lighting and heat gain at any moment of the day. It can keep out up to 80% of the heat of the sun, thus allowing the reduction of air-conditioning costs by as much as 30%.
  • A variety of colors are available. The frame and blades are made of powder-coated or anodized aluminum or PVDF coatings. A variety of blade control options include: manual by friction, mechanical or electrical remote control.

Horizontal PVDF Aluminum Sun Shade Louvers Adjustable Energy Efficient

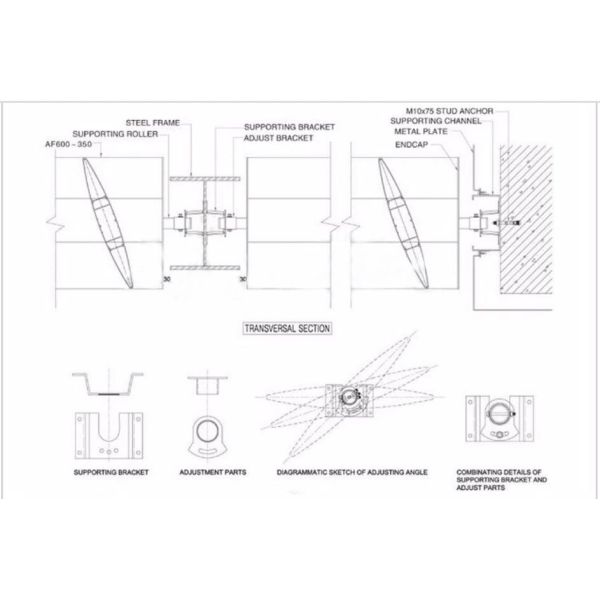

Typical Mountings:

Aluminum Aerofoil Sun Louver can be installed vertical, horizontal or angled. They can be installed in a fixed position or can be adjustable manually, by motor with switch control. It is suitable for various of sun shading of modern commercial buildings large-scale glass curtain wall, windows, and glass roof as awning, with grand building structure.

Sun louver includes Aerofoil sun louver, Aerobrise sun louver, Celoscreen sun louver,Aeroscreen sun louver, Aerowing sun louver,Box sun louver.Customized louvers are available according to Architect’s design.

Horizontal PVDF Aluminum Sun Shade Louvers Adjustable Energy Efficient

Name/Model:

Customized - Aluminum Sun Shade Louvers

- Adjustable - All weather
Profiles: 6063 high quality aluminium extrusion profiles
Glass Type: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
Other glass type of your choose
Color: Matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
White or other color
Hardware :
 Worldwide Top brand
Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)

Horizontal PVDF Aluminum Sun Shade Louvers Adjustable Energy Efficient

Horizontal PVDF Aluminum Sun Shade Louvers Adjustable Energy Efficient

Horizontal PVDF Aluminum Sun Shade Louvers Adjustable Energy Efficient

Horizontal PVDF Aluminum Sun Shade Louvers Adjustable Energy Efficient

Horizontal PVDF Aluminum Sun Shade Louvers Adjustable Energy Efficient
