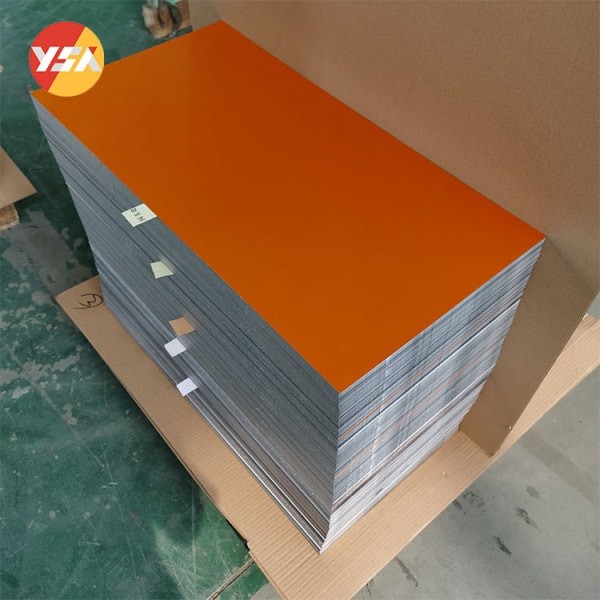

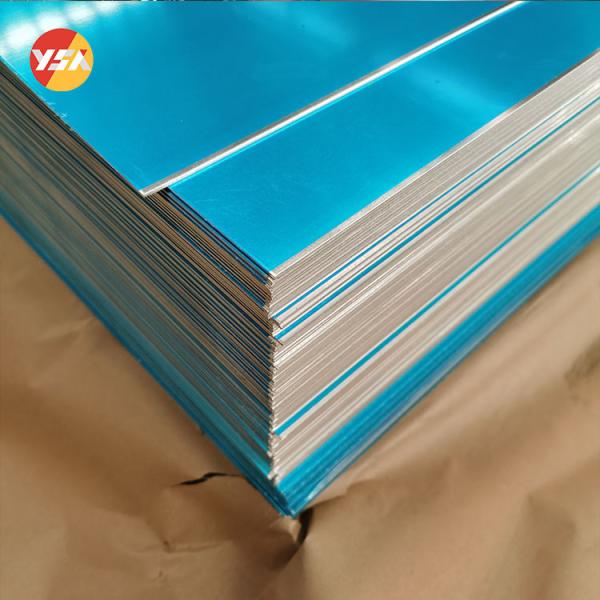

3003 H14 Aluminum 1mm 2mm 3mm 4mm 6mm 5mm Aluminum Alloy Sheet
3003 H14 Aluminum 1mm 2mm 3mm 4mm 6mm 5mm Aluminum Alloy Sheet
3003 H14 Aluminum 1mm 2mm 3mm 4mm 6mm 5mm Aluminum Alloy Sheet
3003 H14 Aluminum 1mm 2mm 3mm 4mm 6mm 5mm Aluminum Alloy Sheet
3003 H14 Aluminum 1mm 2mm 3mm 4mm 6mm 5mm Aluminum Alloy Sheet
3003 H14 Aluminum 1mm 2mm 3mm 4mm 6mm 5mm Aluminum Alloy Sheet
3003 H14 Aluminum 1mm 2mm 3mm 4mm 6mm 5mm Aluminum Alloy Sheet
3003 H14 Aluminum 1mm 2mm 3mm 4mm 6mm 5mm Aluminum Alloy Sheet
Specifications
Supply Ability :
5000 Tons Per Month
Brand Name :
Yongsheng
Model Number :
Aluminum Checkered Plate
Certification :
SGS, ISO, RoHS, etc.
Place of Origin :
Henan Province , China
MOQ :
2 Tons
Price :
3000-3600 USD/Ton
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-20 workdays
Packaging Details :
Standard Seaworthy Wooden Pallet Packing
Alloy :
3003
Temper :
O-H112
Thickness :
0.12-6.00mm,or customer's requirement
Width :
600mm-1500mm, according to customer's requirement
Surface :
Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc
MOQ :
1 ton
Packaging :
Standard export package,such as wooden box or as required.
Technology :
Hot Rolled ( DC ), Cold Rolling( CC ), cast
Description
3003 H14 Aluminum Alloy Sheet
The 3003 H14 Aluminum Alloy Sheet is a versatile material renowned for its excellent formability, corrosion resistance, and balanced strength. Available in thicknesses from 1mm to 6mm, this product serves diverse applications across multiple industries.
Applications
  • Construction: Ideal for roofing, cladding, and decorative panels due to weather resistance and aesthetic appeal
  • Automotive & Transportation: Used in vehicle body panels, fuel tanks, and heat exchangers for lightweight durability
  • Industrial Manufacturing: Perfect for tanks, containers, and machinery parts requiring corrosion resistance and weldability
  • Consumer Goods: Commonly used in kitchenware, signage, and packaging due to non-toxic, easy-to-clean properties
Product Specifications
Grade 3003
Temper H24 / H112
Thickness/Size H24: 1-6mm / 1250×2500mm
H112: 8-200mm / 1250×2500mm, 1500×3000mm (limited availability)
Surface Natural color, smooth finish with protective film (thickness <100mm)
  • Thickness >6mm can be custom cut to smaller sizes
  • Ready stock available - contact us for custom specifications
Chemical Composition (Standard max, W%)
Element Content
Al Balance
Si 0.6
Fe 0.7
Cu 0.05-0.2
Mn 1.0-1.5
Mg -
Zn 0.1
Ti -
Other -
Mechanical Properties (Standard Values)
Property H112 H24
Tensile Strength (MPa) ≥ 100 ≥ 145
Yield Strength (MPa) ≥ 40 ≥ 115
Elongation (%) ≥ 18 ≥ 6
Product Features
Superior Corrosion Resistance
The manganese content in 3003 H14 enhances resistance to corrosion, making it suitable for both indoor and outdoor applications.
3003 H14 Aluminum 1mm 2mm 3mm 4mm 6mm 5mm Aluminum Alloy Sheet
Excellent Formability
This alloy can be easily bent, stamped, or shaped without cracking, ensuring flexibility in manufacturing processes.
3003 H14 Aluminum 1mm 2mm 3mm 4mm 6mm 5mm Aluminum Alloy Sheet
Moderate Strength
Offers a balance of strength and workability, ideal for applications requiring durability without excessive rigidity.
3003 H14 Aluminum 1mm 2mm 3mm 4mm 6mm 5mm Aluminum Alloy Sheet
Lightweight
Aluminum's low density makes this sheet material easy to handle and transport, reducing overall project costs.
3003 H14 Aluminum 1mm 2mm 3mm 4mm 6mm 5mm Aluminum Alloy Sheet
Weldability and Machinability
Can be welded and machined with ease, allowing for seamless integration into various designs and structures.
3003 H14 Aluminum 1mm 2mm 3mm 4mm 6mm 5mm Aluminum Alloy Sheet
