Hydrophilic foil 8011 blue aluminum foil for air conditioner
Hydrophilic foil 8011 blue aluminum foil for air conditioner
Hydrophilic foil 8011 blue aluminum foil for air conditioner
Hydrophilic foil 8011 blue aluminum foil for air conditioner
Hydrophilic foil 8011 blue aluminum foil for air conditioner
Hydrophilic foil 8011 blue aluminum foil for air conditioner
Hydrophilic foil 8011 blue aluminum foil for air conditioner
Hydrophilic foil 8011 blue aluminum foil for air conditioner
Specifications
Brand Name :
Yongsheng
Model Number :
Aluminum Checkered Plate
Certification :
SGS, ISO, RoHS, etc.
Place of Origin :
Henan Province , China
MOQ :
2 Tons
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
7-20 workdays
Packaging Details :
Standard Seaworthy Wooden Pallet Packing
Product Name :
Hydrophilic Aluminum Foil
Alloy/Grade :
8011
Temper :
O-H112
Thickness :
0.007-0.06mm
Length :
Customer Requirement
Width :
120- 1500 mm (tolerance:± 1.0mm)
Color :
Blue
Port :
ShangHai, TianJin, QingDao
Price :
3000-3600 USD/Ton
Supply Ability :
5000 Tons Per Month
Description
Hydrophilic Foil 8011 Blue Aluminum Foil for Air Conditioner
Product Specifications
Attribute Value
Product Name Hydrophilic Aluminum Foil
Alloy/Grade 8011
Temper O-H112
Thickness 0.007-0.06mm
Length Customer Requirement
Width 120-1500 mm (tolerance:±1.0mm)
Color Blue
Port ShangHai, TianJin, QingDao
Product Overview

Hydrophilic Aluminum Foil is a special surface-treated aluminum foil, primarily used in heat exchangers (evaporators and condensers) of air conditioners and refrigeration equipment. Its core characteristic is hydrophilicity, enabling water (especially condensed water) to spread quickly on the surface to form a water film instead of gathering into water droplets - a crucial feature for improving heat exchange efficiency.

Core Characteristics
  • Hydrophilicity: Surface treatment with hydrophilic coatings and chemical processes creates hydrophilic groups that promote rapid water spreading into thin films rather than droplets.
  • Corrosion Resistance: Protective coatings shield the aluminum substrate from moisture and corrosive elements, extending heat exchanger lifespan.
  • Antibacterial Properties: Advanced formulations include antibacterial agents to inhibit microbial growth, improving air quality and reducing odors.
Key Advantages
  • Enhances heat exchange efficiency by reducing wind resistance
  • Maintains optimal dry fin surface area for maximum thermal transfer
  • Reduces energy consumption by improving system efficiency
  • Improves dehumidification capacity through rapid water removal
  • Minimizes operational noise from water droplet accumulation
  • Extends equipment service life through corrosion protection
  • Enhances air quality with antibacterial properties
Applications
  • Household Air Conditioners: Indoor unit evaporators and outdoor unit condensers
  • Commercial HVAC Systems: Air-cooled modular units, multi-split systems, water-cooled units
  • Refrigeration Equipment: Refrigerators, freezers, dehumidifiers, chillers
  • Automotive HVAC: Evaporators and condensers in vehicle air conditioning systems
Product Images

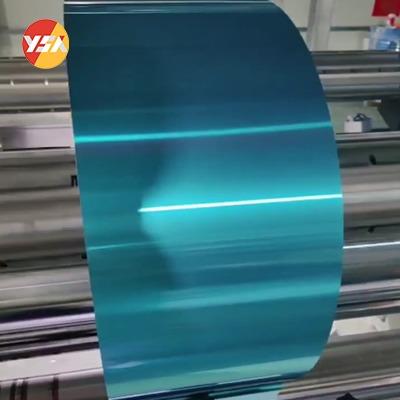

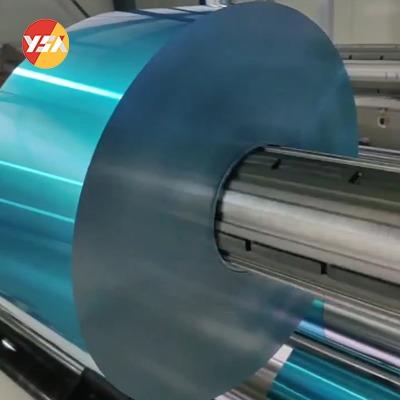

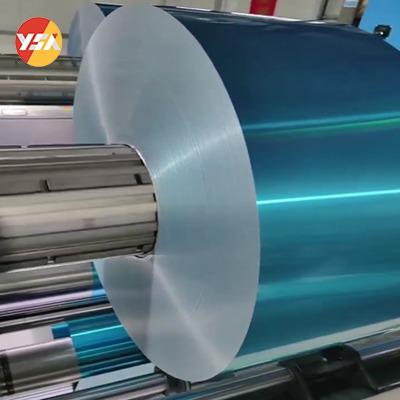

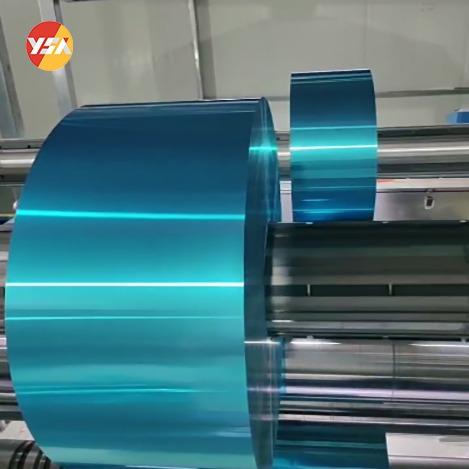

Hydrophilic foil 8011 blue aluminum foil for air conditioner
Hydrophilic foil 8011 blue aluminum foil for air conditioner
Hydrophilic foil 8011 blue aluminum foil for air conditioner
Hydrophilic foil 8011 blue aluminum foil for air conditioner
