Specifications
Brand Name :
Yongsheng
Model Number :
Aluminum Checkered Plate
Certification :
SGS, ISO, RoHS, etc.
Place of Origin :
Henan Province , China
MOQ :
2 Tons
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-20 workdays
Alloy :
1050 1060 1100 3003 5052, etc
Temper :
O, H14, H18, H24, H32, etc
Width :
100 - 2600mm
Thickness :
0.2 - 60mm
Surface Treatment :
Flat, stucco embossed, corrugated, smooth or orange peel embossed
MOQ :
1 Ton
Loading Port :
Export wooden pallets, Craft paper, Anti-Blushing Agent.
Packaging :
FOB, CIF, CFR, CNF, etc.
Price :
3000-3600 USD/Ton
Packaging Details :
Standard Seaworthy Wooden Pallet Packing
Supply Ability :
5000 Tons Per Month
Description

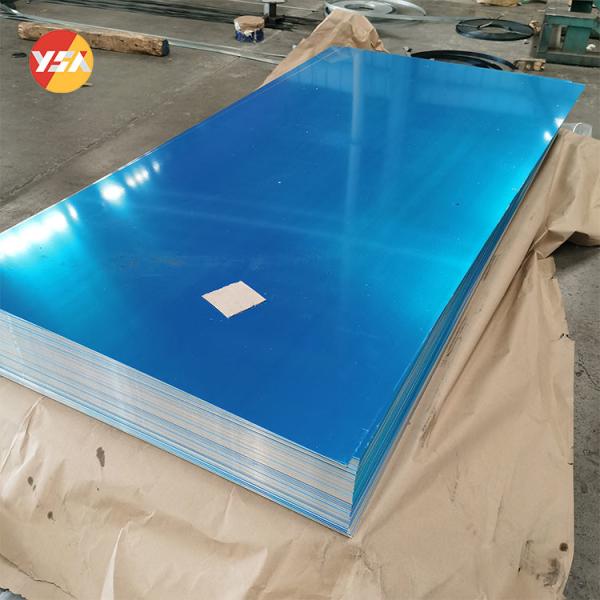

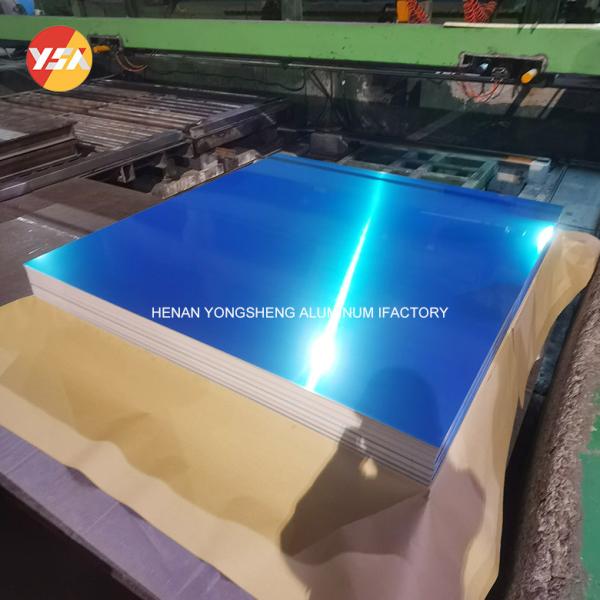

Blue PVC Coated Aluminum Sheets
Available in 0.5mm, 1.25mm, 1.6mm, 2.0mm, and 2.5mm thicknesses with 1050 and 5052 alloy options in H14 and H32 tempers. Features one-side blue PVC protective coating for superior surface protection during handling and transportation.
1050 Aluminum Alloy Features
1050 aluminum sheets are industrial pure aluminum with aluminum content exceeding 99.5%. This series offers excellent electrical and thermal conductivity with beautiful appearance and natural corrosion resistance through protective oxide film formation.
  • Low density with good electrical and thermal conductivity
  • Natural oxide film provides excellent corrosion resistance
  • Cost-effective alternative to premium aluminum alloys
  • Applications: Lithium battery components, heat sinks, signage, electronics, printing, curtain walls, and stamping parts
5052 Aluminum Alloy Features
5052 is an AL-Mg alloy aluminum sheet offering medium-high strength with excellent forming characteristics and superior corrosion resistance, particularly in marine environments.
  • Medium-high strength aluminum-magnesium alloy
  • Excellent forming performance and plasticity
  • Superior fatigue resistance and weldability
  • Strong resistance to marine atmospheric corrosion
  • Minimal surface oxidation during heating processes
Protective PVC Coating
The blue PVC film on one side protects aluminum sheets from scratches, dirt, and physical damage during transportation, storage, and handling. Easily removable to reveal a clean, smooth surface ready for installation.
Product Specifications
Specification Details
Grade 1000-6000 Series
Temper O, H14, H24, H32, H112, T4, T651
Thickness 0.2mm - 60mm
Length 100mm - 12000mm (customizable)
Width 100mm - 2600mm
Surface Treatment Flat, stucco embossed, corrugated, smooth or orange peel embossed
Material Quality Free from defects: white rust, edge damage, camber, dents, holes, break lines, scratches
Processing Services Bending, Punching, Cutting
MOQ 500kg
Delivery Time Future goods: 20-30 work days, Ready stock: 7-10 days
Customization Available: All specifications can be customized according to customer requirements.

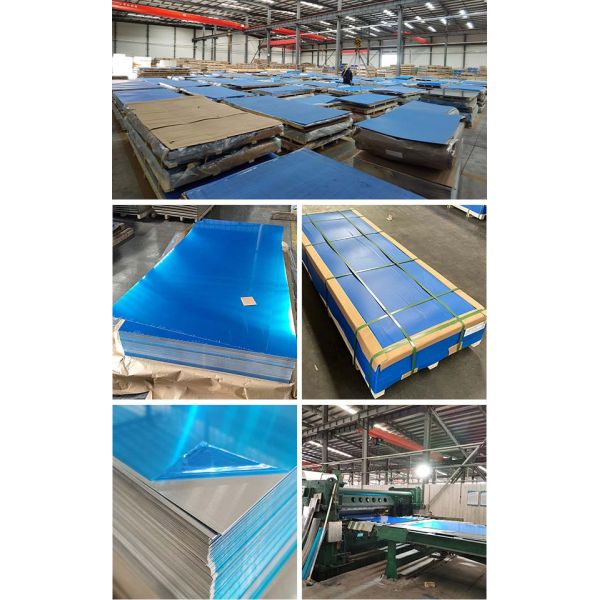

Product Gallery
