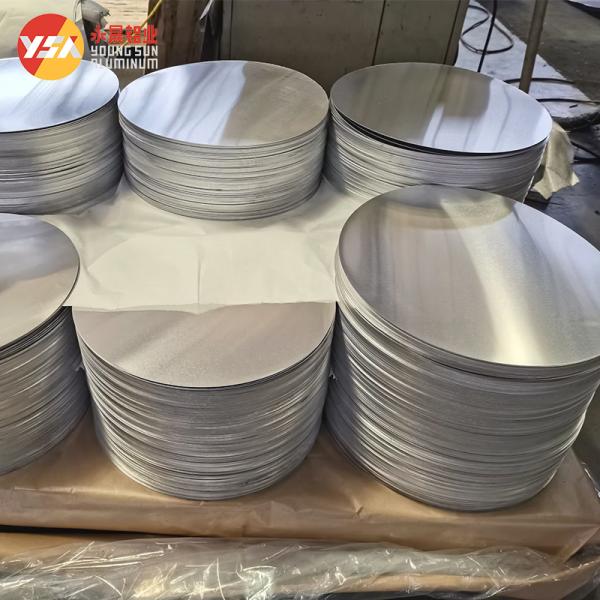

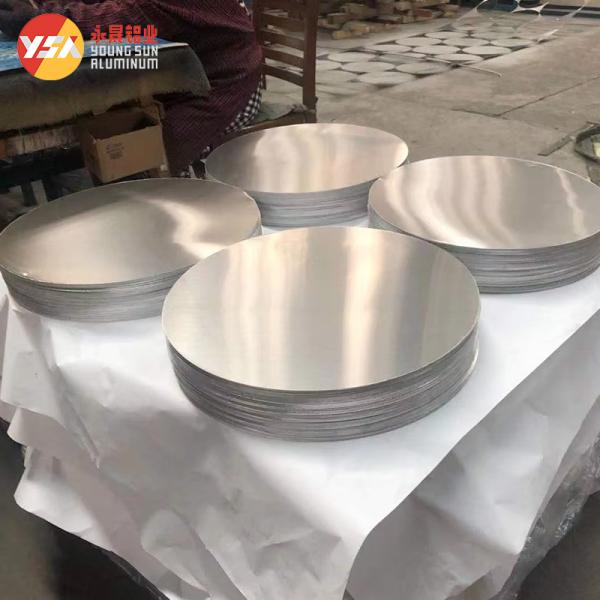

3000 series high quality aluminum circle for kitchenware H14
3000 series high quality aluminum circle for kitchenware H14
3000 series high quality aluminum circle for kitchenware H14
3000 series high quality aluminum circle for kitchenware H14
3000 series high quality aluminum circle for kitchenware H14
3000 series high quality aluminum circle for kitchenware H14
Specifications
Brand Name :
Henan Yongsheng
Model Number :
Aluminum Circle Disc
Certification :
SGS, ISO, RoHS, Etc.
Place of Origin :
Henan Province , China
MOQ :
1 Ton
Payment Terms :
T/T, L/C
Supply Ability :
5000 Tons Per Month
Delivery Time :
7-20 Days
Packaging Details :
Standard Seaworthy Wooden Pallet Packing
Alloy :
1050,1060,1070,1100, 3003, 3004, 3105, 5052, 5754 etc.
Temper :
O,H12,H14,H16,H18,H24,H32,etc
Diameter :
80mm-1000mm (customer requirements)
Thickness :
0.13-6.5mm
Thermal Conductivity :
190 W/m.K
Tensile Strength :
95-135MPa
Port :
QingDao, ShangHai, TianJin
Sample :
Free
Description
3000 series high quality aluminum circle for kitchenware H14
Product Specifications
Attribute Value
Alloy 1050, 1060, 1070, 1100, 3003, 3004, 3105, 5052, 5754 etc.
Temper O,H12,H14,H16,H18,H24,H32,etc
Diameter 80mm-1000mm (customer requirements)
Thickness 0.13-6.5mm
Thermal Conductivity 190 W/m.K
Tensile Strength 95-135MPa
Port ShangHai, TianJin, QingDao
Sample Free
Product Features
  • Lightweight and Strength Balance

    Our aluminum discs with a density of just 2.73 g/cm³, it is 66% lighter than stainless steel, giving kitchenware a lightweight design. This not only reduces transportation costs but also significantly reduces the weight of kitchenware, making single-handed operation more effortless. The manganese (Mn) reinforcement achieves a tensile strength of 150–220 MPa. For example, a wok can withstand 100,000 stir-fries without deformation.

  • Excellent Thermal Conductivity

    The 3000 series aluminium has a thermal conductivity of up to 135 W/(m·K). As kitchenware, it heats up three times faster than stainless steel and saves 15% energy.

  • Food-grade corrosion resistance

    The food-grade corrosion resistance of 3000 series aluminium meets food safety standards such as FDA, GB 4806.9, and LFGB. The natural oxide film and manganese (Mn) elements work synergistically to ensure no perforation after 500 hours of salt spray testing.

  • Exceptional plastic deformation capability, capable of handling various shapes with ease

    3000 series aluminium in the H24 condition maintains an elongation rate of 8-12%, balancing strength and formability. It can easily achieve complex processes such as deep drawing and spinning. 3003 aluminium circle plates can achieve a depth-to-diameter ratio of 1:1.5.

Technical Parameters
Parameter Specification
Product Name Aluminum Circle / Aluminum Disc
Standard GB/T3880, ASTM, B209
Series 1050, 1060, 1070, 1100, 3003, 3004, 3105, 5052, 5754 etc.
Temper O,H12,H14,H16,H18,H24,H32,etc
Process Hot rolled (DC) or Cold rolled (CC)
Thickness 0.13-6.5mm or customized
Diameter 80mm -1000mm or customized
Tolerance ±1%
MOQ 1 Ton
Sample 1-2 pieces of free samples available
Appearance Flat, clean surface without scratches, cutting edge no burrs
Chemical Composition (%)
Grade Si Fe Cu Mn Mg Cr Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - 0.05 0.03 99.5
1060 0.25 0.35 0.05 0.03 0.03 - 0.05 0.03
1070 0.2 0.25 0.04 0.03 0.03 - 0.04 0.03 99.6
1100 Si+Fe:0.95 0.05-0.4 0.05 - - 0.1 - 99.7
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - 0.1 - 99
3004 0.3 0.7 0.25 1.0- 0.8 - 0.25 - remains
3005 0.6 0.7 0.3 1.0-1.5 0.2-0.6 0.1 0.25 0.1 remains
3105 0.6 0.7 0.3 0.3-0.8 0.2-0.8 0.2 0.4 0.1 remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 0.1 - remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 0.25 0.15 remains
5086 0.4 0.5 0.1 0.2-0.7 3.5-4.5 0.05-0.25 0.25 0.15 remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 remains
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 remains
Product Gallery
3000 series high quality aluminum circle for kitchenware H143000 series high quality aluminum circle for kitchenware H143000 series high quality aluminum circle for kitchenware H14
Applications
3000 series high quality aluminum circle for kitchenware H14
