Aluminum Checkered Plate/Aluminum Tread Plate is named for the raised stripes or diamond patterns on its surface. These patterns not only enhance the aesthetic appeal, but more importantly, they offer excellent anti-slip properties, high strength and corrosion resistance, thereby improving rigidity and resistance to deformation.

Surface treatment

①Mill Finish: Retains the silver-white natural color of the aluminum material, suitable for industrial settings (such as the 6061-T6 platform).

②Anodized: Enhances wear resistance and color (for use in building 6061-T6 facades).

③Coated: PVDF coating offers a lifespan of over 20 years in terms of weather resistance (for outdoor construction with 5052 alloy).

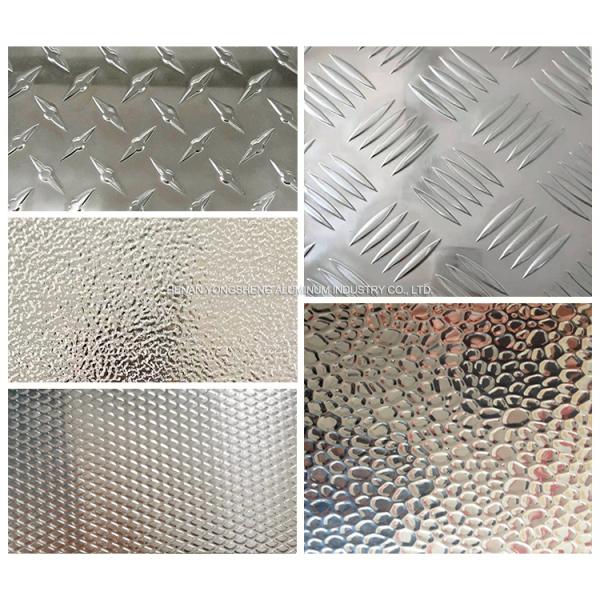

Pattern types
① 5-bar tread pattern
Characteristics: Parallel raised stripes, anti-slip coefficient ≥ 0.6 (dry state).
Application: Industrial platforms, floor of transportation equipment (such as the bottom plate of 5083 alloy truck) .
② Diamond pattern
Characteristics: Crossed raised points, highly decorative, anti-slip coefficient ≥ 0.55.
Application: Building curtain walls, light-load areas (such as 3003 alloy decorative panels).

Product Specifications
Common thickness: 1.0mm - 6.0mm (base material thickness, excluding the height of the pattern).

International standards
ASTM B209 (American material standard)
EN 485 (European aluminum sheet specification)
ISO 7599 (Anodic oxidation standard)

Different alloy series meet diverse application requirements. Here is an introduction to the commonly used alloys of Aluminum Checkered Plate:

The strip patterned aluminum sheet has an extremely wide range of applications, covering almost all industrial and commercial fields that require anti-slip, lightweight, and corrosion resistance.

1. Transportation Field
This is the largest and most common application market for patterned aluminum sheets.

• Trucks, trailers and cargo box floors: used for the bottom and side panels of container trucks, refrigerated trucks, and flatbed trailers. The anti-slip pattern ensures the safety of personnel and goods during movement, and the lightweight property of aluminum directly reduces fuel consumption and increases payload capacity.
• Bus, train and subway car floors: resistant to high-intensity foot traffic, anti-slip and easy to clean.
• Ship decks and gangways: excellent resistance to marine climate corrosion and anti-slip properties, making it an ideal choice for ship applications.
• Aircraft gangways and airport passageways: lightweight, durable, easy to move and operate.
