3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24
3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24
3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24
3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24
3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24
3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24
3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24
3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24
Specifications
Brand Name :
Yongsheng
Model Number :
1050,1060,3003,5052,6061
Certification :
ISO, RoHS, etc
Place of Origin :
Henan Province , China
MOQ :
1ton
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000 tons/month
Delivery Time :
7-15work days
Packaging Details :
Standard Seaworthy Wooden Pallet Packing
Alloy :
3003, 3004, 3005, series, etc
Temper :
H14, H24, etc
Thickness :
0.2-6mm, etc
Width :
100mm-1600mm,Customer Requirement
Length :
Customer Requirement
Tolerance :
±1%
Coating :
PE or PVDF
Color :
Silver,White, Blue, Red, Etc
Port :
ShangHai, TianJin, QingDao
Sample :
Free
Price :
2900-3100 sud/ton
Description
3003 3004 3005 Color Coated Aluminum Coils for Curtain Walls and Ceilings
Product Specifications
Attribute Value
Alloy 3003, 3004, 3005 series, etc
Temper H14, H24, etc
Thickness 0.2-6mm, etc
Width 100mm-1600mm, Customer Requirement
Length Customer Requirement
Tolerance ±1%
Coating PE or PVDF
Color Silver, White, Blue, Red, etc
Port ShangHai, TianJin, QingDao
Sample Free
Alloy Characteristics

3003: The workhorse of pre-painted aluminum for architectural applications. Offers excellent corrosion resistance, formability, weldability, and moderate strength. Ideal for curtain walls, suspended ceilings, and interior decoration.

3004/3005: Slightly stronger than 3003 with excellent corrosion resistance. Used in applications requiring higher strength such as roofing systems or demanding curtain wall panels.

Alloy Conditions

H14: Work-hardened to a half-hard state. Offers a balance of strength, rigidity, and flatness while maintaining formability for architectural applications. Provides a very flat coated surface.

H24: Similar to H14 but work-hardened after partial annealing. H14 and H24 have very similar properties in pre-painted aluminum applications, with H14 being more common.

Applications
  • Metal Roofing: For pitched or flat roofs of public buildings, industrial plants, and commercial buildings. Lightweight with excellent drainage and long lifespan (PVDF coatings last over 25 years).
  • Roofing Systems: Standing seam, snap-on, and flat-lock systems provide waterproofing and wind-uplift resistance.
  • Curtain Walling: Building envelope structures including unitized, framed, and double-skin curtain walls with decorative effects and weather resistance.
  • Ceilings: Used in offices, shopping malls, subway stations, and airports. Aesthetically pleasing, fire-resistant, and easy to clean.
Additional Specifications
Paint High quality (PPG/BECKER/AkzoNobel, etc.)
Coating Thickness PE coating >18um / PVDF >25um

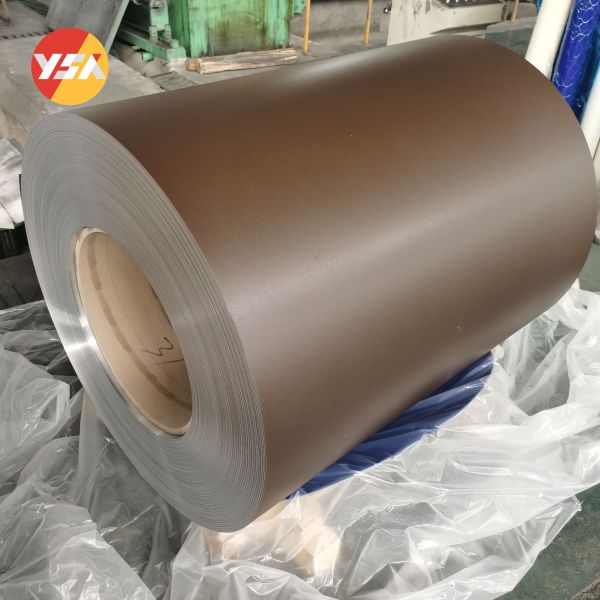

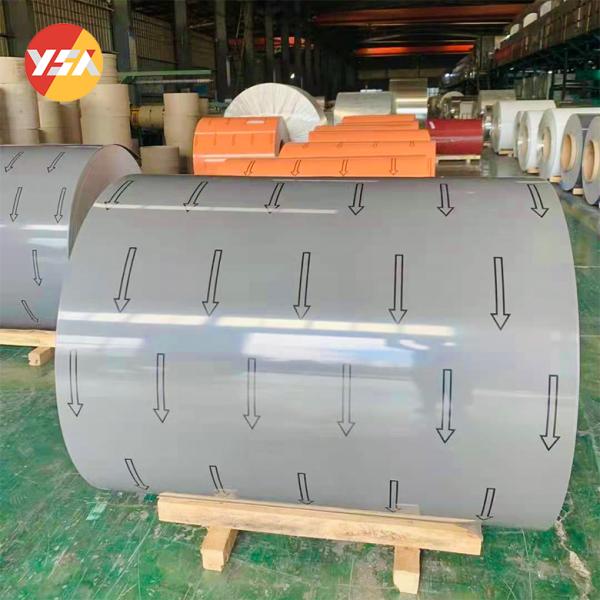

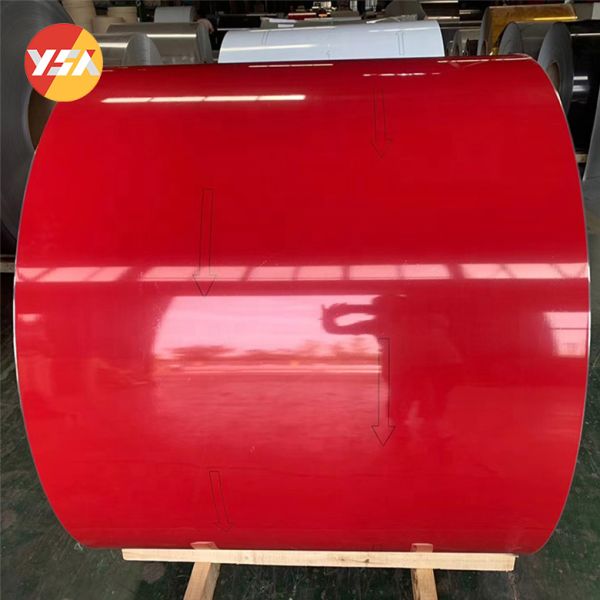

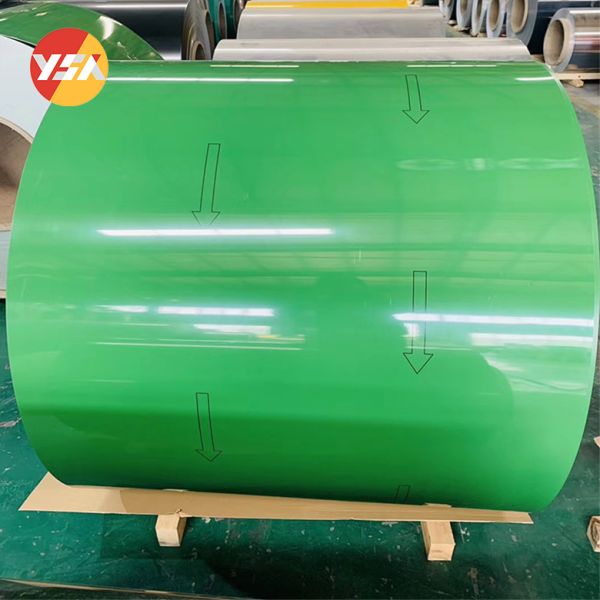

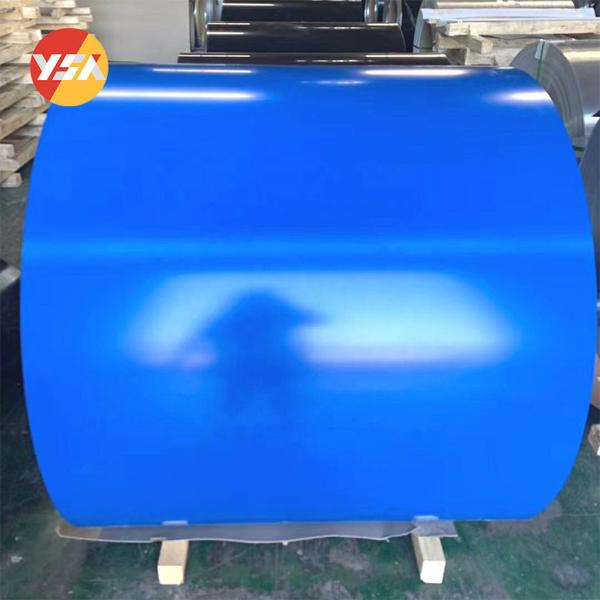

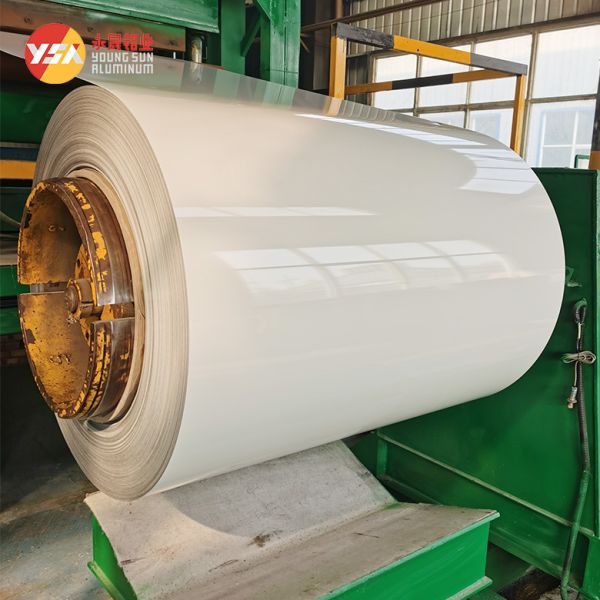

Product Images
3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24 3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24 3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24 3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24 3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24 3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24 3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24 3003 3004 3005 Color coated aluminum coils for curtain walls and ceilings in the construction industry H14 H24
