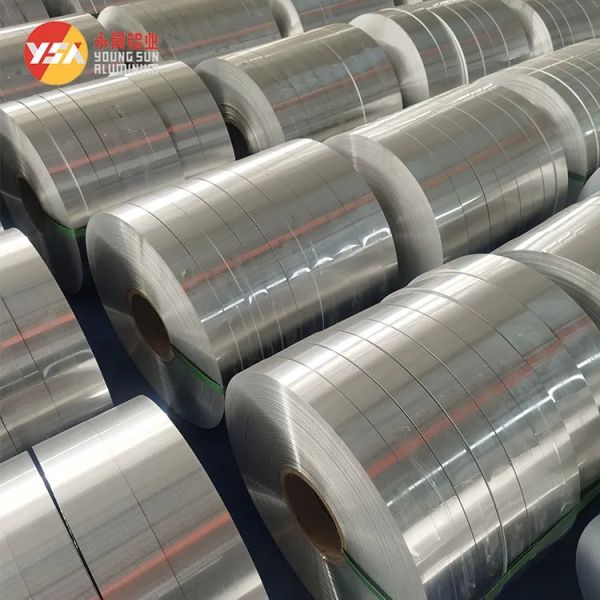

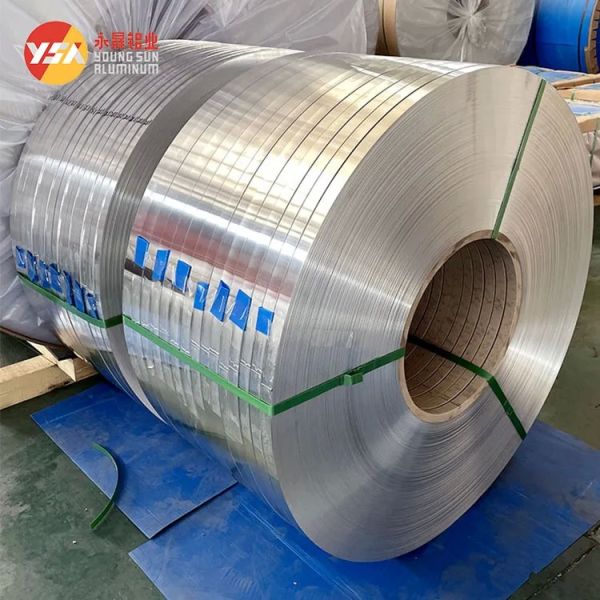

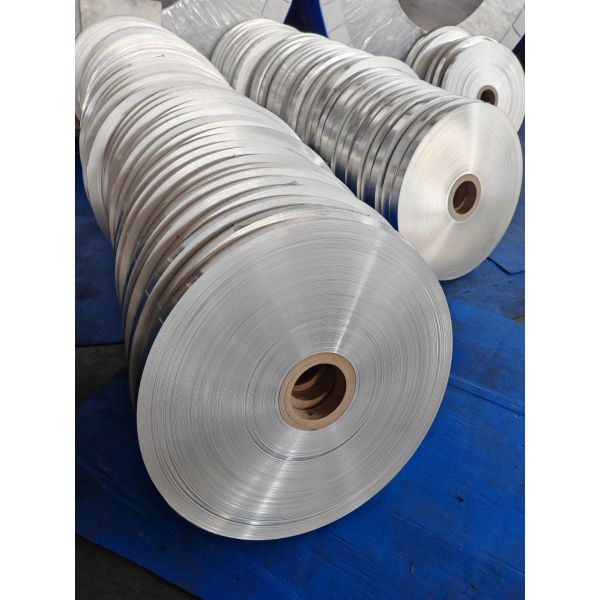

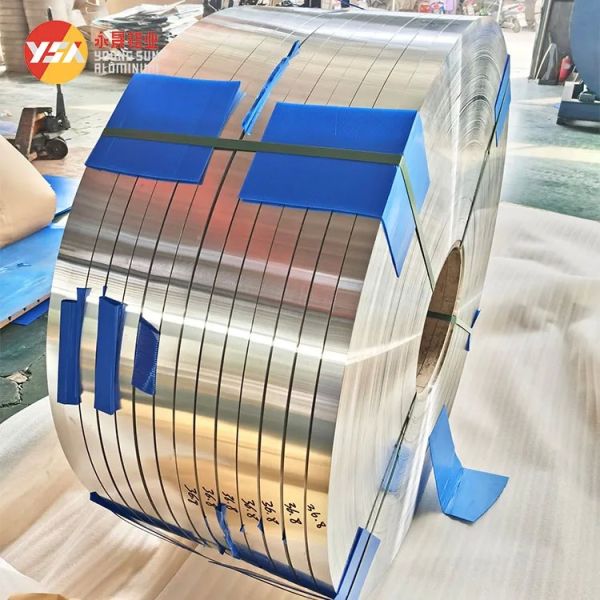

1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications
1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications
1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications
1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications
1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications
1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications
1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications
1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications
Specifications
Temper :
H24, H18, O
Alloy Series :
1050, 3003, 5052
Coil Inner Diameter :
405mm / 505mm
Coating Type :
PE, PVDF
Model Number :
1050, 3003, 5052
Tensile Strength :
≥140 N/mm² (3003), ≥210 N/mm² (5052)
Payment Terms :
T/T,L/C,Western Union,D/P,D/A
Surface Treatment :
Color Coated, Mirror, Anodized, Mill Finish
Standards :
ASTM-B209, EN573-1, GB/T3880.1-2006
Price :
USD 2600-3100 / Ton
Delivery Time :
7-15 working days
Supply Ability :
5000 Tons per Month
Place of Origin :
Henan Province, China
Certification :
ISO 9001, SGS, RoHS
Brand Name :
Yongsheng
Thickness :
0.2mm - 5.0mm
MOQ :
1 Ton
Packaging Details :
Standard Seaworthy Wooden Pallet Packing
Width :
10mm - 2600mm
Description

1050 3003 5052 Color Coated Aluminum Strip Coil

This premium aluminum strip coil combines the versatility of three alloy series — 1050 (pure, high ductility), 3003 (Al-Mn anti-rust), and 5052 (Al-Mg high strength) — in one comprehensive product line. Precision slit to custom widths from 0.2mm to 5.0mm thickness, it delivers consistent quality for channel letter manufacturing, signage, floor transitions, LED profiles, flex pipe, and general industrial fabrication.

1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications

1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications

1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications

Key Benefits

  • Multi-Alloy Availability: 1050 (99.5% pure), 3003 (anti-rust), and 5052 (marine-grade) series to match exact application requirements
  • Custom Width Slitting: From 10mm to 2600mm width with tight tolerance control for zero-waste production
  • Versatile Temper Options: H24 (half-hard), H18 (full-hard), O (soft annealed) for optimal balance of formability and strength
  • Color Coated & Mirror Finish: PVDF and PE color coating with mirror, anodized, and mill finish surface treatments available
  • Superior Corrosion Resistance: 3003 Al-Mn and 5052 Al-Mg alloys offer excellent anti-rust performance for outdoor and humid environments
  • High Ductility & Formability: Deep drawing and bending capability for complex stamping and forming operations

1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications

Target Applications

  • Channel Letter & Signage Manufacturing
  • Floor Transition & Tile Trim Strips
  • LED Light Profile Channels
  • Flexible Duct & HVAC Pipe Coil
  • Aluminum Composite Panel Edge Trim
  • Door Weather Stripping
  • Stamping Hardware Components

1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications

Technical Specifications

Parameter Specification
Alloy Series 1050, 3003, 5052
Temper H24, H18, O (custom tempers available)
Thickness 0.2mm - 5.0mm
Width 10mm - 2600mm (custom slitting)
Surface Treatment Color coated (PE/PVDF), mirror, anodized, mill finish
Color Options RAL color chart, metallic, wood grain
Tensile Strength ≥140 N/mm² (3003), ≥210 N/mm² (5052)
Elongation ≥15% (H24), ≥35% (O temper)
Coil Inner Diameter 405mm / 505mm standard
Standards ASTM-B209, EN573-1, GB/T3880.1-2006
Certificates ISO 9001, SGS, RoHS, MTC (Mill Test Certificate)

1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications

Why Choose Yongsheng Aluminum Strip Coil?

  • 18+ years of aluminum manufacturing expertise with full mill certificate and MTC (Mill Test Certificate) provided
  • Precision slitting with ±0.05mm width tolerance
  • Full RAL color matching for consistent batch-to-batch quality
  • Factory-direct pricing with MOQ as low as 1 ton
  • Free samples available for quality evaluation

Packing & Shipping

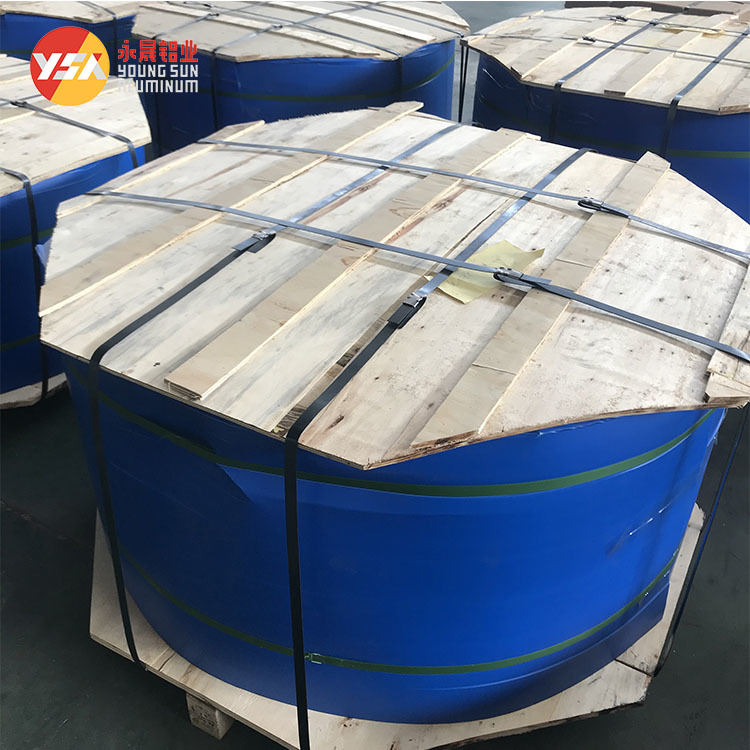

Packaging

  • Standard Export Packing: Seaworthy wooden pallet with moisture-proof paper and plastic film wrapping
  • Coil Protection: Each coil wrapped with anti-rust paper, PVC film, and secured with steel strapping
  • Custom Packaging: Available upon request — including branded labels, custom pallet sizes, and vacuum packing
  • Loading: 20-25 tons per 20ft container, 25-28 tons per 40ft container depending on coil dimensions

Shipping

  • Port of Loading: Qingdao, Tianjin, or Shanghai Port (China)
  • Delivery Time: 7-10 working days for ready stock, 15-30 working days for custom production orders
  • Shipping Methods: FCL (Full Container Load), LCL (Less than Container Load), or break-bulk
  • Incoterms: FOB, CIF, CFR, EXW available
  • Sample Service: Free A4-sized samples delivered within 3-5 working days via DHL, FedEx, or UPS

1050 3003 5052 Color Coated Aluminum Strip Coil 0.2-5.0mm H24 O Temper for Channel Letter Signage Applications
