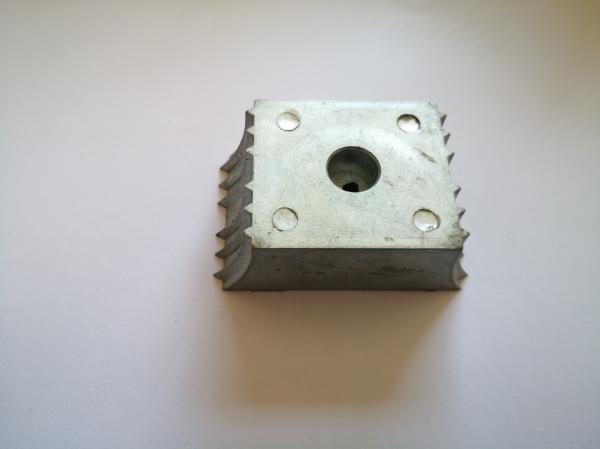

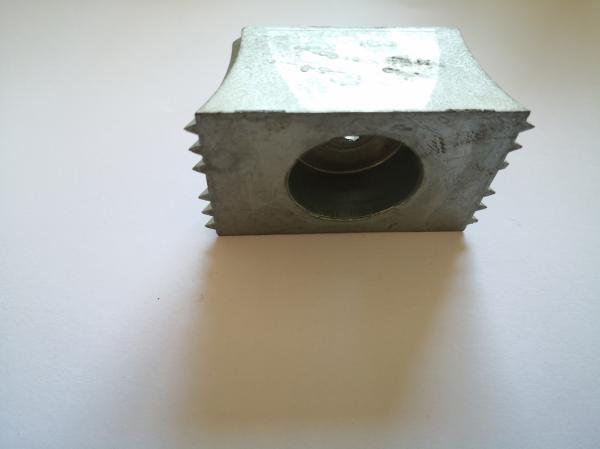

High Strength Painted Pneumatic Operation Aluminum Die Casting Parts
High Strength Painted Pneumatic Operation Aluminum Die Casting Parts
High Strength Painted Pneumatic Operation Aluminum Die Casting Parts
High Strength Painted Pneumatic Operation Aluminum Die Casting Parts
Specifications
Brand Name :
Huanhai
Model Number :
HHTD-001
Certification :
SGS
Place of Origin :
Qingdao
MOQ :
2000pcs
Price :
Negotiable
Payment Terms :
T/T,
Supply Ability :
5000ton/year
Delivery Time :
4-6weeks
Packaging Details :
plywooden
Material :
Aluminum alloy
Progress :
Die Casting
Operation :
Pneumatic
Surface Treat :
Powder Coating
MOQ :
OK
Use :
Car
Description

High-strength painted aluminum die casting

Aluminum die casting
Aluminum die-casting process services include the original casting design of die-casting molds, and the finished product design involving post-processing and other surface treatments (such as electroplating, electrophoresis, painting, anodizing and powder coating).
Aluminum die casting is both efficient and economical, and offers a variety of durable shapes and components. There is little or no need for machining after die-casting parts because the process can provide very close tolerances even for complex shapes. Aluminum die castings can also be easily electroplated or finished. Aluminum die castings are dimensionally stable and heat resistant.
Nowadays, vacuum aluminum die casting parts are used in various precision engineering die casting products, such as:
Marine components
Sports equipment accessories
High-voltage electrical control components
car parts:
Oil pump
Gearbox
Engine bracket
Body shell structural elements
Oil filter bracket and manifold
Brake components
Pressure components for medical equipment
Radiator for electronic and motor drive controller
Pneumatic, gas and hydraulic valves
Radio communication mobile phone chassis and frame
Specification Customized,customer required,customer's drawings
Material ADC12/ADC10/A380/A383/A390/413/AllSi9Cu3/AlSi10Mg,etc.
Application Automobile, agricultural machinery, furniture,
construction, home appliances, electronics.
Process High pressure die casting or Semi-solid thixoforming
Machining CNC machining center, CNC lathe
Casting tolerance IT4 - IT6
Machining tolerance +/- 0.005mm,ISO2768-f
Standard DIN,ASTM,GOST,ISO,BS
Heat treatment Annealing treatment,solution treatment ,T1,T2,T3,T4,T5,T6
Unit weight 5g-30kg
Dimensions <=1500mm
Die casting machine specification 150T-3000T
Certificate ISO9001, TS16949,ISO1400,RoHS
Finish Plating,Painting,Powder Coating,Polishing, Stoving Varnish,Anodizing
Quality control FEMA,PPAP,APQP,Control Plan,MSA,
Certificates for all requirements
Test reports for every delivery
Service Weekly report,Key node report,Any questions will be answered within 24 hours.

Benefits of die casting/aluminum die casting


Aluminum die casting is an efficient and economical process that offers a wider range of shapes and components than any other manufacturing technology. The parts have a long service life and can be designed to complement the visual appeal of surrounding parts. By specifying die castings, designers can obtain many advantages and benefits.

High-speed production: Die casting of aluminum die castings can provide complex shapes with more precise tolerances than many other mass production processes. Little or no machining is required, and thousands of identical castings can be produced before additional tools are required.
Dimensional accuracy and stability: Aluminum die-casting parts produced by die-casting are durable and dimensionally stable while maintaining tight tolerances. They are also heat resistant.


Strength and weight: Aluminum die castings are stronger than plastic injection molded parts of the same size. Thin-walled castings are stronger and lighter than other casting methods. In addition, since die castings are not composed of separate parts welded or fastened together, the strength is the strength of the alloy, not the strength of the joining process.


Multiple finishing technologies: Aluminum die castings can produce products with smooth or rough surfaces, and they can be easily electroplated or finished with minimal surface treatment.

Simplified assembly: Aluminum die-casting parts provide integral fastening elements such as bosses and studs. The hole can be punched and made into a size suitable for tapping and drilling, or it can be cast with external threads.

High Strength Painted Pneumatic Operation Aluminum Die Casting Parts
