Aluminum Sheet Metal Manufacturer 1050/1060/1100/3003/5083/5052/6061/6063/7075 Spot
Aluminum Sheet Metal Manufacturer 1050/1060/1100/3003/5083/5052/6061/6063/7075 Spot
Aluminum Sheet Metal Manufacturer 1050/1060/1100/3003/5083/5052/6061/6063/7075 Spot
Aluminum Sheet Metal Manufacturer 1050/1060/1100/3003/5083/5052/6061/6063/7075 Spot
Aluminum Sheet Metal Manufacturer 1050/1060/1100/3003/5083/5052/6061/6063/7075 Spot
Aluminum Sheet Metal Manufacturer 1050/1060/1100/3003/5083/5052/6061/6063/7075 Spot
Aluminum Sheet Metal Manufacturer 1050/1060/1100/3003/5083/5052/6061/6063/7075 Spot
Aluminum Sheet Metal Manufacturer 1050/1060/1100/3003/5083/5052/6061/6063/7075 Spot
Specifications
Brand Name :
chengyue
Model Number :
1050/1060/1100/3003/5083/5052/6061/6063/7075
Certification :
ISO9001 RoHS
Place of Origin :
China
MOQ :
1 ton
Payment Terms :
L/C D/A D/P T/T Western Union MoneyGram
Supply Ability :
3000 tons per month
Delivery Time :
6 days
Packaging Details :
Waterproof paper, and steel strip packed According to requirements
product name :
Aluminum Sheets
Grade :
1050/1060/1100/3003/5083/6061
Surface treatment :
Coated Embossed Hairline Polished plain
Width :
Customer Requirement 10mm~2500mm 1200mm 500mm-2800mm 600-2000mm
Alloy or not :
Is Alloy Non-alloy
Temper :
O-H112,T3-T8,Other,O,T351-T851
Thickness :
0.2mm-200mm 0.15-300 mm 0.10mm~500mm 0.45MM 0.5mm/1mm/1.5mm / 2mm / 3mm /4mm/5mm/etc.
Standard :
EN,ASTM,JIS,ASTM/DIN/GB/SUS,ASTM AISI JIS DIN GB
Description

Aluminum Sheet Metal Manufacturer 1050/1060/1100/3003/5083/5052/6061/6063/7075 Spot

Chengyue Aluminum is specialized manufacturer in producing aluminum hard alloys materials.mainly covering alloys is 1000series,3000 series,5000series, 7000series.
Main products:hot rolled plate, hot rolled sheet, annealed plate, quenched plates, stretched plate, hot rolled coil.
Application:Aerospace, railway transportation ,automotive,marine ,building ,electronics and tooling etc.
Chengyue Aluminum Supply: 5182 5083 5A06 2024 6061 7020 7075 5086 7050 6016 6082 6101 6014 6016 3003 4017 6111 6N11 6063 8005a 6106 3103 8005A 6005A 6014 6056 6022.

Product Paramenters
Hot Rolled Aluminum Products

Aluminum Hot Rolling Coil Specification

Typical Alloy TypicalTemper Specification Typical Application
/ / Thickness(MM) Width(MM)
1070 1085 1090 F/O 2.2-15 1100 1150 1200 1250 1300 1350 1500 Stock for large power battery foil product etc.
3003 300312 300313 300314 F/O 2.2-15 1100 1150 1200 1250 1300 1350 1500

Stock material for foil of capacitors, pressing containers, shell for mobile phone battery, curtain wall etc.
3004 3105 F/O 2.2-15 1100 1150 1200 1250 1300 1350 1500 Stock material for full aluminum cans, chemical product production and shell of storage device and aprons, etc.
5052 F/O H112 2.2-15 1100 1150 1200 1250 1300 1350 1500 Stock material for cans end, fuel tank (pipeline) of airplane, shell of mechanical (electrical) and curtain wall, etc.

5754

5754

 O/H112 2.2-15 1100 1150 1200 1250 1300 1350 1500 Stock Material for Auto Body Sheet, and Sound Barrier of High Speed Railway, etc.

5182

5182

 F/O H112 2.2-15 1100 1150 1200 1250 1300 1350 1500 Stock Material for Cans end /ring-pull, Inner Auto Body Sheet, and Commercial tanker body Sheet, etc.

Remark: Product with thickness under 3.5mm can reach Min. Inner coil diameter of 505mm.
Notice: Other alloys are available upon customer demand.

Hot Rolled Aluminum Plate

Alloy Series Typical Alloy Typical Temper Thickness (MM) Width (MM) Length (MM)
3xxx 5xxx 3003 5052 5083 5A06 F/H112 12~260 1000~3800 2000~38000
2xxx 6xxx 7xxx 2024 6061 7020 7075 F/H112 12~260 1000~3800 2000~38000

Hot Rolled Aluminum Sheet

Alloy Series Typical Alloy Typical Temper Thickness (MM) Width (MM) Length (MM)
3xxx 5xxx 3003 5052 5754 5182 5083 5086 F/H112 3.0~12.0 2000~2600 2000~24000
2xxx 6xxx 7xxx 2024 6061 7020 7075 F/H112 3.0~12.0 2000~2600 2000~24000

Cold Rolled Aluminum Products

Main products:Cold rolled plate and sheet ;cold rolled coil
Application:Aerospace, railway transportation, automotive marine building ,electronics and construction, offshore engineering ,
energy sources ,tool and mould etc.

2800mm continuous annealing line,air cushion furnace are provide by EBNER ,It can realize continuous annealing,solution treatment,quenching (water,air)passivation ,cleaning, tension -leveling ,pre-ageing, oiling and edge trimming ,producing high valued sheet and coil for aviation and aerospace and automotive etc.

Cold Rolled Aluminum Sheet

Alloy Series Typical Alloy Typical Temper Thickness (MM) Width (MM) Length (MM)
3xxx 5xxx 3003 3004 5052 5083 5182 5754 O H12 H22 H32 H14 H24 H34 H18 H28 H38 0.2~3.5 1200~2650 2000~12000
2xxx 6xxx 7xxx 2024 6016 6061 6082 7020 7N01 7075 7050 O T4 T6 0.2~3.5 1200~2650 2000~12000

Cold Rolled Aluminum Coil

Alloy Series Typical Alloy Typical Temper Thickness (MM) Width (MM) ID (MM) OD(MM)
3xxx 5xxx 3003 3004 5052 5083 5182 5754 O H12 H22 H32 H14 H24 H34 H18 H28 H38 0.2~3.5 1200~2650 505 605 Max.2560
2xxx 6xxx 7xxx 2024 6016 6061 6082 7020 7N01 7075 7050 O T4 T6 0.3~3.5 1200~2650 505 605 Max.2560

Annealed Aluminum Plate

Alloy Series Typical Alloy Typical Temper Thickness (MM) Width (MM) Length (MM)
2xxx 6xxx 7xxx 2024 6061 7020 7075 O 3.0~12.0 1000~2600 2000~24000
12~260 1000~3800 2000~38000
3xxx 5xxx 3003 5052 5754 5182 5083 5086 5A06 O,H111 3.0~12.0 1000~2600 2000~24000
O 12~260 1000~3800 2000~38000

Quenched Aluminum Plate

Alloy Series Typical Alloy Typical Temper Thickness (MM) Width (MM) Length (MM)
2xxx 6xxx 7xxx 2024 6005A 6061 6082 7020 7N01 7075 7050 T4 T6 4.0~12.0 1000~2600 2000~24000
12~260 1000~3800 2000~38000

Stretching Aluminum Plate

Alloy Series Typical Alloy Typical Temper Thickness (MM) Width (MM) Length (MM)
2xxx 6xxx 7xxx 2017 2024 6082 6061 7020 7N01 7075 7050 T351 T451 T651 T7x51 4.0~12.0 1000~2600 2000~24000
12~260 1000~3800 2000~38000

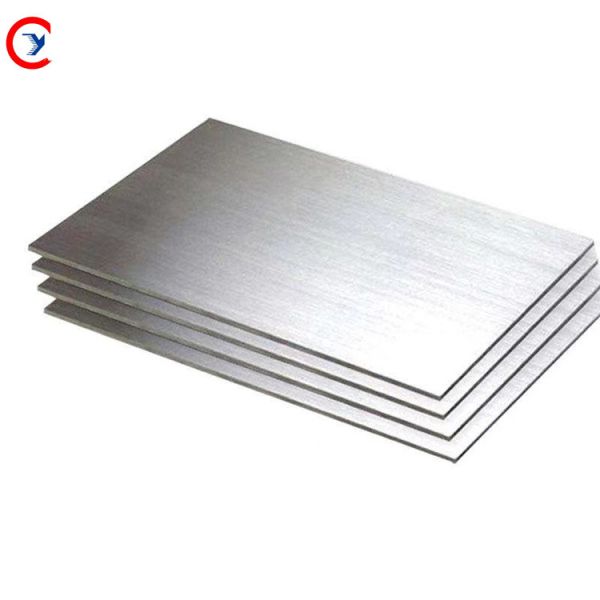

Product Display
Product packaging
Services & Applications

1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer with 1.5 million tons of aluminum annually in China. We have passed the factory inspection by various international organizations and have our own sales team. Welcome to seeing and inspecting our factory

2. Q: Do you have quality control system?
A: Yes,we have iso,bv,sgs certifications and our own quality contorl laboratory.

3. Q: How long is your delivery time?

A: Within 7-15 days after receiving the deposit or L/C at sight. Longer lead time will be required for special designed products.

4. Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but the delivery charges will be covered by our customers.

5. Q: Do you provide after-sale service?
A: We provide after-sales service and offer 100% guarantee on our products.
