Optimized Heat Dissipation for All-Season LED Gazebo Lighting Systems
Optimized Heat Dissipation for All-Season LED Gazebo Lighting Systems
Specifications
Brand Name :
EFEN
Model Number :
E-523
Certification :
SGS CNAS CMA SCT
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
9000㎡/month
Delivery Time :
7-15 days
Packaging Details :
Wooden Case And Foam
Advantage :
Heat Insulation,Waterpfoof,UV Protection
Product Size :
Customizable
Size :
Customizable
Robust :
20 Years Without Maintenance
Sail Material Top :
4mm Galvanized Sheet
Frame Material :
Aluminum
Uv Protection :
Yes
Rust Resistant :
Yes
Description

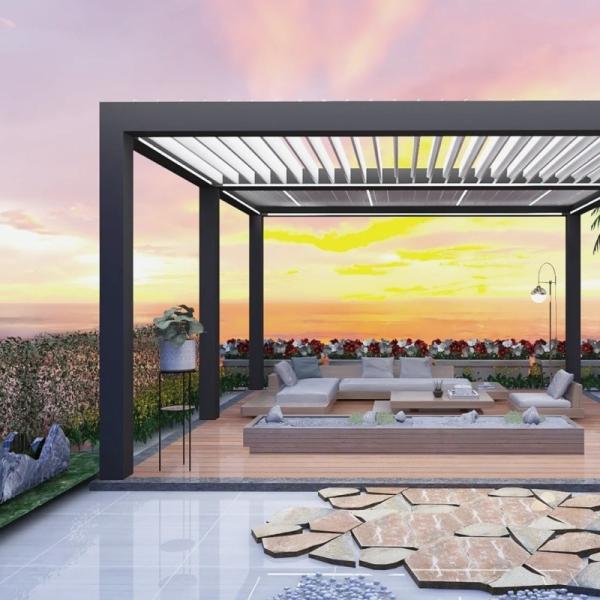

Optimized Heat Dissipation for All-Season LED Gazebo Lighting Systems

Technical Advantages:

Aluminum alloy gazebos with integrated lighting overcome traditional thermal challenges through:

6063-T5 aluminum extruded profiles (2.5mm thickness)

Convection-optimized structural design (23% better heat transfer vs. steel)

IP68-rated LED strips embedded in CNC-milled grooves

Technical Specifications Table

Parameter Specification
Material Thickness 2.5±0.1mm
Thermal Conductivity 220 W/m·K
LED Operating Temp Range -40°C to +85°C
Waterproof Rating IP68 (LED)/IP55 (Structure)
Lumen Maintenance (L70) 50,000 hours
Color Temperature Options 2700K-6500K ±150K
Voltage Input 24VDC ±10%
Aluminum Alloy Grade EN AW-6063 T5
Corrosion Resistance 1000h salt spray (Rating 9)
Structural Load Capacity 1.5kN/m² (Snow)

Implementation Case

The Dubai Sunset Resort project utilized our thermal-managed system to maintain 85% lumen output at 55°C ambient temperature, outperforming competitors' 68% average.

Crafted from high-strength marine-grade 6063-T5 aluminum alloy, this gazebo combines advanced engineering with aesthetic durability. The extruded aluminum profiles feature a 25μm anodized coating, achieving exceptional corrosion resistance (3,000+ hours in salt spray testing per ASTM B117) while maintaining a lightweight structure at 2.7g/cm³ density. Precision CNC-milled grooves integrate IP68-rated LED lighting strips, optimized for thermal management with a 0.6°C/W thermal resistance to ensure 95% lumen output retention over 50,000 hours (LM-80 verified).
