Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Specifications
Brand Name :
YUEDING
Model Number :
A3003/5005
Certification :
ISO
Place of Origin :
GUANGZHOU,CHINA
MOQ :
200SQ.M.
Price :
USD40-USD80Per SQ.M.
Payment Terms :
L/C, T/T
Supply Ability :
50000 S.M.T Per Month
Delivery Time :
13Work Days
Packaging Details :
air bubble film +wood crates/accept customized package
Size :
Customized
Coated :
PVDF /PPG/Imitation wood grain
Material :
Aluminum
Color :
Black/White or Customized
Packing :
Protective film with foam glue
Thickness :
1.5 2.0 2.5 3.0mm Etc.
Description

Curved aluminum strip pipe ceiling special lightweight round tube and square tube.

PRODUCT DESCRIPTION

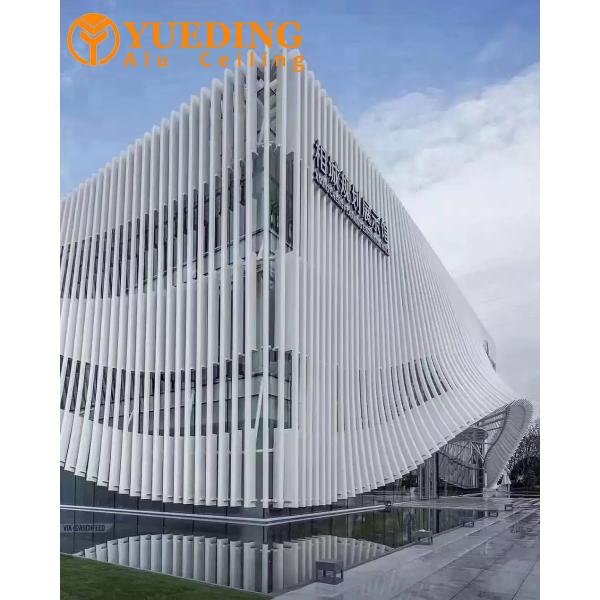

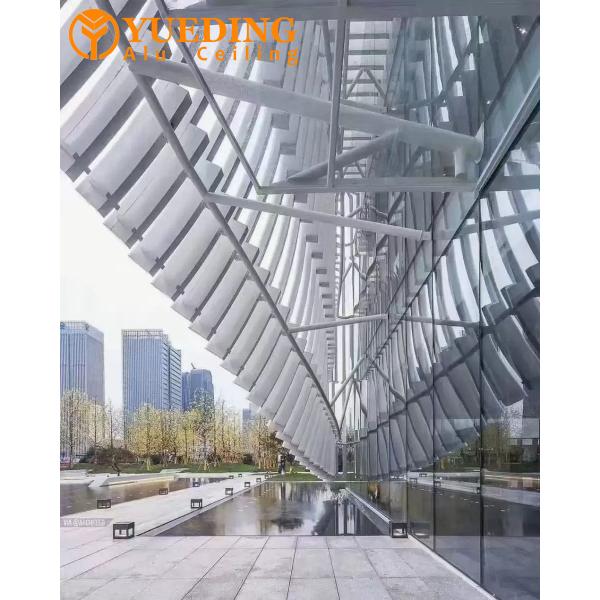

Curved aluminum square pipe is a kind of arc aluminum alloy profile formed by cold forming, rolling arc or stretching process, which has both lightweight, high strength and beautiful streamlined shape, and is widely used in modern building curtain walls, interior decoration, advertising exhibitions and other fields.

Curved Aluminum Strip Ceiling Lightweight Round / Square Tube

Features
1. Diverse arc design
- Various arcs such as single arc, double arc, S-bend, and U-shaped arc can be customized to meet the needs of different curved surface shapes and adapt to special-shaped building structures.

2. Highly lightweight
- Made of 6063-T5 or 6061-T6 aluminum alloy, high strength, light weight, wind pressure and deformation resistance, suitable for long-span installation.

3. Precise CNC molding
- Processed by CNC rolling, hydraulic cold bending or mold stretching processes, the arc is accurate (error ± 1mm) to ensure smooth splicing.

4. Excellent weather resistance
- The surface can be powder coated, fluorocarbon sprayed or anodized, which is corrosion-resistant and UV-resistant, and adapts to the harsh outdoor environment.

5. Easy installation
- Support bolting, snap connection or welding, with a special arc keel system, efficient construction and reduce labor costs.
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube
Usage
- Architectural decoration: curved curtain walls, canopies, corridors, artistic moldings
- Interior design: curved ceilings, partitions, stands, light troughs
- Commercial display: advertising signs, display cases, window modeling.
Curved Aluminum Strip Ceiling Lightweight Round / Square Tube

Installation principle:

1. Keel support: A light steel or aluminum alloy keel frame is used to ensure the overall structural stability and load-bearing needs.
2. Dry hanging system: Connected with the keel through metal pendants, it realizes welding-free installation and reduces the risk of thermal deformation.
3. Floating design: Expansion joints (5-8mm) are reserved between plates to adapt to thermal expansion and contraction, avoiding deformation and cracking.
4. Three-dimensional adjustable: the pendant can be adjusted horizontally, longitudinally and forward and backward to ensure the flatness of the curtain wall (error ≤ 2mm).
5. Sealing and waterproofing: The seams are filled with weather-resistant glue and waterproof rubber strips are installed to eliminate leakage hazards.
6. Modular assembly: Unit-type pre-assembled boards, directly hoisted on site, improving efficiency and reducing labor costs.
