Pigment Aluminum Paint Tubes Epoxy Phenolic Resin Internal Lacquer
Pigment Aluminum Paint Tubes Epoxy Phenolic Resin Internal Lacquer
Specifications
Brand Name :
Xinji
Model Number :
Dia 13.5mm - Dia 40mm
Certification :
ISO, CFDA
Place of Origin :
China
MOQ :
50000 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 millions pcs per year
Delivery Time :
30 days
Packaging Details :
Packed in strong carton,suitable for long distance ocean transportation.
Material :
Aluminum
Name :
Squeeze Aluminum Tube
Color of printing :
Max 6 Colors
Artwork :
Customized
Diameter :
13.5mm~40mm
Usage :
Paint tubes
Description

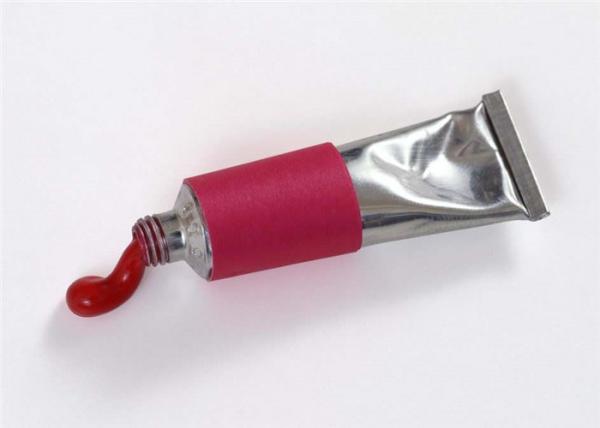

Pigment Paiting Packaging Aluminum Paint Tubes , Collapsible Aluminum Tube

We are the 3rd largest manufacturer of collapsible aluminum tube industry. Our Aluminum tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.

We adhere to the business philosophy “Meticulously manufacture, different for you”, we clearly understand the needs of customers, establish supply chain system and appropriate procedures based on customer needs to maximize customer satisfaction .

For any quality problems, analysis the cause with high standards in order to establish a long-term mechanism; Each employee should understand how their daily work affects the quality level and customer satisfaction, continue to improve their own work for better service to our customers.

General Description:

1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.
2. Aluminum Blamks: Aluminum＞99.7% pure.
3. Internal Lacquer: Type-Expoxy-Phenolic Resin.
4. External Base Coat: Type-Enamel;Colour-White.
5. Colour Ink: Suplier-Shanghai DIC.
6. Crimp sealant brand: PPG.
7. Manufacturing Environment:The construction of 100000-ton cleaning production packing workshop.
8. The standard of Inspection:BS2006-86 Aluminum tube for medicine ointment.

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter		 Tolerance of Diameter
Length		 Tolerance of Length
Nozzle		 Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm mm mm mm mm
10




±0.1		 60


±0.5		 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0		 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40 200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle
