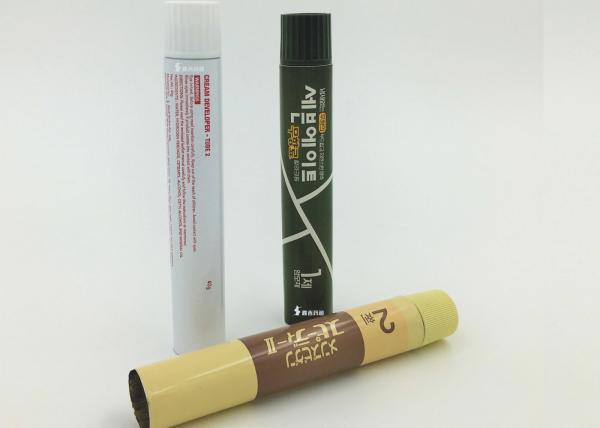

Hair Dye Cream Aluminum Collapsible Tube Packaging , Hair Color Tube , Dia 30 / 35 / 40mm
Gerenal Description:
1. CAP:Colour-white/red/blue;Type-Conual Piercer;material-HPPE.
2. Aluminum Blamks:Aluminum>99.7% pure.
3. Internal Lacquer:Type-Expoxy-Phenolic Resin.
4. External Base Coat:Type-Enamel;Colour-White.
5. Colour Ink:Suplier-Shanghai DIC.
6. Crimp sealant brand:PPG.
7. Manufacturing Environment:The construction of 100000-ton cleaning production packing workshop.
8. The standard of Inspection:BS2006-86 Aluminum collapsible tube for medicine ointment.
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle |
Quality Management:
The quality management department is a specific department independent of others.
Equipped with professional quality inspectors and inspection facilities, it implements effective supervision towards the whole process of all activities related to the product quality though continuously self-improvement quality management system.
We adhere to “quality is out of production”, require strictly self-inspection, mutual inspection and routing inspection by operator and QC during production, to detect and solve quality problems, ensure the product safety and stability from source . Finished products gone through twice full inspection for outside tube defects, once full inspection for inside tube defects, once inside and outside casual inspection , once tightened inspection by QC .Through inspection at each process, the small probability defect of aluminum collapsible tubes reached the level of 6α.
“make every aluminum collapsible tube trustworthy” as our quality concept to cover the whole process including products designing, developing, producing, transporting and servicing.
Customer Service:
Adhere to the business philosophy “Meticulously manufacture, different for you”, we clearly understand the needs of customers, establish supply chain system and appropriate procedures based on customer needs to maximize customer satisfaction .
For any quality problems, analysis the cause with high standards in order to establish a long-term mechanism; Each employee should understand how their daily work affects the quality level and customer satisfaction, continue to improve their own work for better service to our customers.
