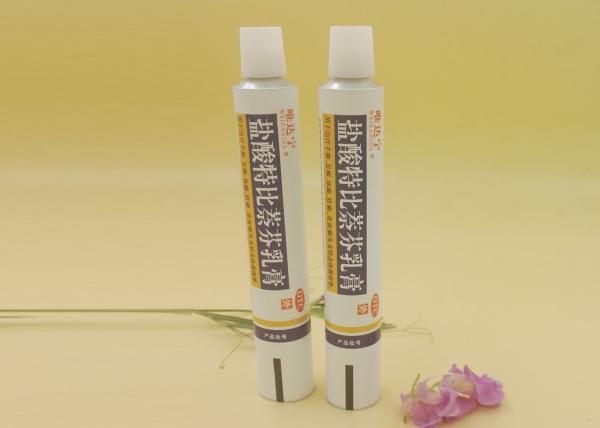

Soft Aluminum Ointment Tubes For Pharmaceutical BS2006-86 Standard
Soft Aluminum Ointment Tubes For Pharmaceutical BS2006-86 Standard
Specifications
Brand Name :
Xinji
Model Number :
Dia 13.5mm - 40mm
Certification :
ISO, CFDA
Place of Origin :
China
MOQ :
50000 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 millions pcs per year
Delivery Time :
30 days
Packaging Details :
Packed in strong carton,suitable for long distance ocean transportation.
Aluminum :
> 99.7% purity
Name :
empty ointment tube
Color :
up to 6 colors
Capacity :
3ml - 200ml
Standard :
BS2006-86
Certificate :
ISO, CFDA
Description

Soft Aluminum Ointment Tubes , Aluminum Cream Tubes for Pharmaceutical

Quick Details:


1. Latex at the end: PPG.
2. Manufacturing Environment: 100000-ton cleaning production packing workshop.
3. Equipment: Germany PSG fully automatic production line.
4. The standard of Inspection: in accordance with British Standard BS2006-86.

5. CAP: Color-white/red/blue/yellow; material-HPPE.
6. Aluminum Slugs: Aluminum＞99.7% pure.
7. Internal Lacquer: Type-Epoxy Phenolic Resin.
8. External Base Coat: Type-Enamel; Color-White (can customize).
9. Color Ink: up to 6 colors, Supplier-Shanghai DIC.

Coating The color matches the standard,no exposure and no tiny oil droplets
Color printing Clear and entirety,the overprint is in position
Color difference Conform to the standard

British Standard (BS2006-86):

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter		 Tolerance of Diameter
Length		 Tolerance of Length
Nozzle		 Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm mm mm mm mm
10




±0.1		 60


±0.5		 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0		 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40 200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5

FAQ:

1. What's your payment term?
T/T, L/C, Western Union, etc.

2. Could we visit your factory?

Sure, welcome you to visit us! We’re nearly Wuhan City. You can take plane to Wuhan Tianhe Airport or take high-speed train to Wuhan High Railway Station. We will pick you up there, and it will take half an hour to our factory from the airport or railway station.

3. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China, located in central China with nearly 40 years history.
4. How to get samples?
Samples without customized printing are free.
Also we can customize samples with your design for your testing at local, but it will take some charges.
5. How long is your delivery time?
Generally it is within 30 days after we sign the contract and confirm the artwork.
