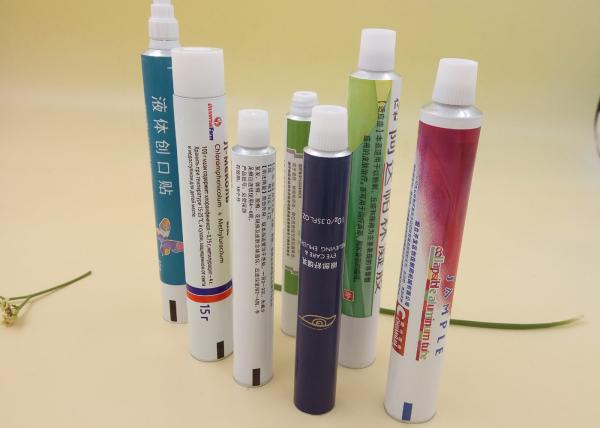

Beautiful Ointment Metal Squeeze Tubes Packaging 20g Volume M9 Screw Cap
Beautiful Ointment Metal Squeeze Tubes Packaging 20g Volume M9 Screw Cap
Specifications
Brand Name :
Xinji
Model Number :
Dia 13.5mm-Dia 40mm
Certification :
ISO, CFDA
Place of Origin :
China
MOQ :
50000 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 millions pcs per year
Delivery Time :
30 days
Packaging Details :
Packed in strong carton,suitable for long distance ocean transportation.
Material :
Aluminum
Color :
6 colors
Product Name :
20g Ointment Tube Packaging
Sealing Type :
Screw Cap
Caps :
M9
Thread :
Membrane
Feature :
100% recyclable
Description

20g Ointment Tube Packaging , Aluminum Metal Squeeze Tubes

Alumminum collapsible Tube Specification sheet
Tube size(diameter) Standard(Length) Length Range Estimated Capacity
11mm 55mm 55-65mm 2-5ml
13.5mm 70mm 70-80mm 5-12ml
16mm 100mm 100ml-115ml 8-11ml
19mm 110mm 110mm-120mm 10-25ml
25mm could be designed 110-200mm 30-50ml
30mm 50-70ml
32mm 80-100ml
38mm 100-150ml
40mm 200-350ml

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard
Diameter Tolerance of Diameter Length Tolerance of Length Nozzle Tube Wall Thickness Shoulder Thickness 　
Max Min Max Min Shoulder Angle Standard
mm mm mm mm 　 mm mm mm mm 　
10 ±0.1 60 ±0.5 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35 　
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165 ±1.0 115 0.15 0.11 0.75 0.45 　
30 165 115 0.16 0.11 0.75 0.45 　
32 170 115 0.16 0.11 0.75 0.45 　
35 185 115 0.16 0.11 0.75 0.45 　
38 185 115 0.16 0.11 0.75 0.45 　
40 　 200 115 0.16 0.11 0.75 0.45 　
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5 　

Company culture:


Business philosophy: Meticulously manufacture, different for you.
Quality policy: Make every aluminum collapsible tube trustworthy
Xinji core values: love, responsibility, change, happy

Why Choose us:


1. More than 40 years experience in packaging design, develop and manufacture.
2. Strong R&D team, customized-products are highly welcomed.
3. 100% QC inspection before delivery, high quality with very competitive price.
4. 90% of our products are exporting to oversea market, top service and timely delivery.

Application of Aluminum Collapsible Tube
Product Type Contents
Health caring eye cream,body lotion,shaving cream,foot cream,toothpaste,hand cream
Medicine unguent,medical cream,gel
Adhesive Glue super glue,rubber cement,leather adhesive,resin,wood glue,epoxy glue,metal glue,sealant
Industrial Grease brake grease,silicone-based grease,sewing machine lubricating oil,gear grease,red rubber grease,lithium-based grease
Cosmetics eyeliner,lip balm,hair dressing cream,nail beauty products,mascara
